Description
SD-I-U-MT

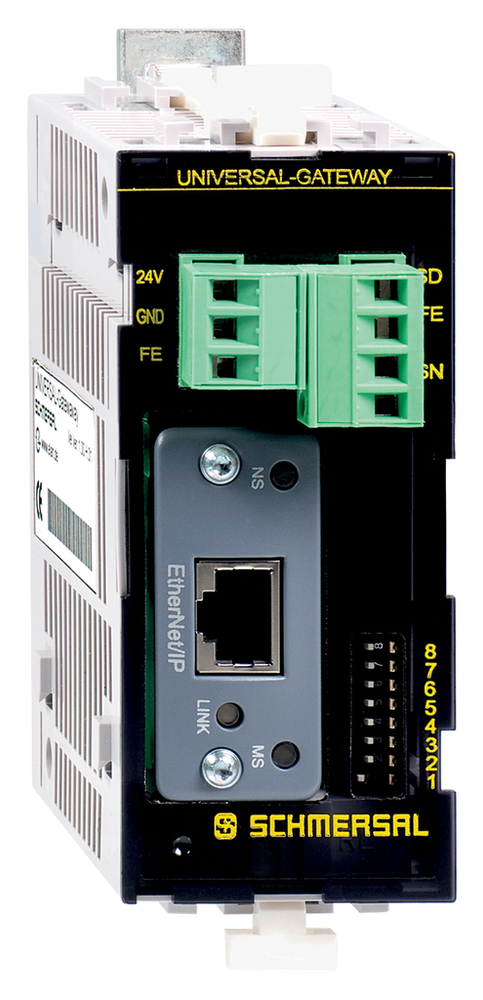

Schmersal 101218029 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- +0 ... +55 °C
- Degree of protection of the enclosure
- IP20
- Note (Relative humidity)
- non-condensing
- Relative humidity, maximum
- 85 %
- Relative humidity, minimum
- 30 %
- Resistance to vibrations
- 10 ... 57 Hz, Amplitude 0.35 mm | 57 ... 150 Hz, with 5 g
- Restistance to shock
- 10 g
- Storage and transport temperature, maximum
- +75 °C
- Storage and transport temperature, minimum
- -25 °C
Ambient conditions - Insulation values
- Degree of pollution
- 2
- Overvoltage category
- II
- Rated impulse withstand voltage U
- 0.5 kV
- Rated insulation voltage U
- 32 V
Electrical data
- Operating current
- 500 mA
- Operating voltage
- 24 VDC -15 % / +20 % (stabilised PELV power supply)
- Rated operating voltage
- 24 VDC
Electrical data - Communication protocols
- Feldbus Protokoll
- Modbus TCP
Electrical data - Electromagnetic compatibility (EMC)
- Electromagnetic compatibility
- EN 61000-4-2 | EN 61000-4-4 | EN 61000-4-5
- EMC rating
- EN 61000-4-3 | EN 61000-4-6
- Interfering radiation
- IEC 61000-6-4 (2002)
General data
- Gross weight
- 200 g
General data - Features
- Integral system diagnostics, status
- Yes
- Number of LEDs
- 1
Mechanical data
- Mounting
- Snaps onto standard DIN rail to EN 60715
Mechanical data - Connection technique
- Termination
- Cage clamps
Mechanical data - Dimensions
- Depth
- 80 mm
- Height
- 100 mm
- Width
- 50 mm
Other data
- Note (applications)
- Safety sensor | Guard system
Specifications
- Depth
- 80 mm
- Height
- 100 mm
- Width
- 50 mm
