Description
TQ 700-02 S

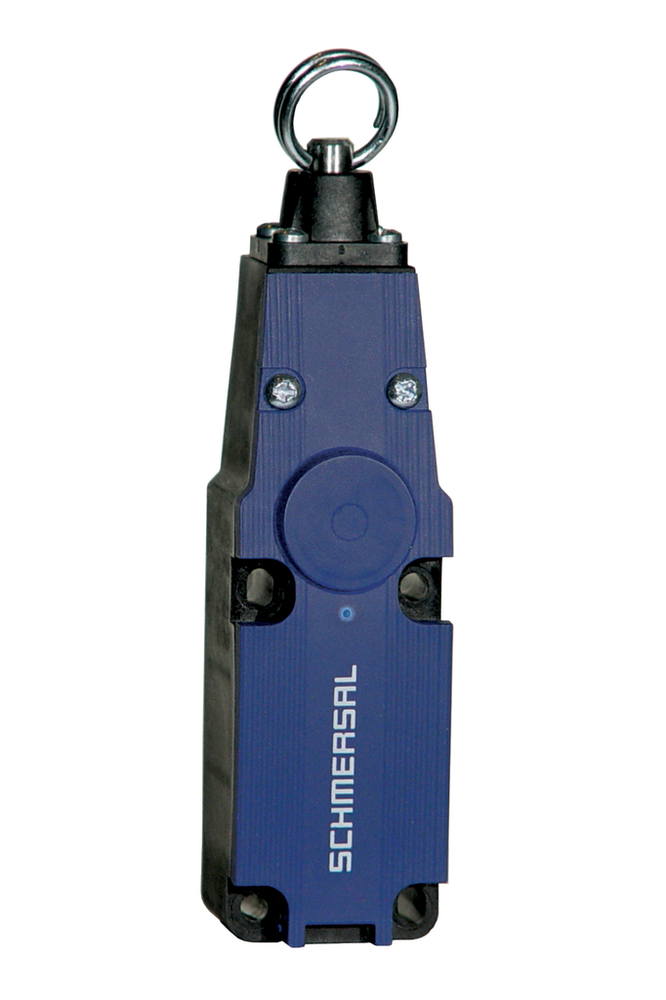

Schmersal 101217791 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -25 ... +70 °C
- Degree of protection
- IP67
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 6 kV
- Rated insulation voltage U
- 500 V
Approvals - Standards
- Certificates
- TÜV
Electrical data
- Material of the contacts, electrical
- Silver
- Switching element
- Opener (NC)
- Switching principle
- Slow action
- Thermal test current
- 10 A
General data
- Enclosure material
- Glass-fibre, thermoplastic
- Gross weight
- 150 g
- Material of the housing cover
- Glass-fibre, thermoplastic
- Standards
- EN IEC 60947-5-1
General data - Features
- Number of normally closed (NC)
- 2
Mechanical data
- Actuating force, maximum
- 101.2 N
- Actuating force, minimum
- 74.8 N
- Mechanical life, minimum
- 1,000,000 Operations
Mechanical data - Connection technique
- Cable section, maximum
- 2.5 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
- Termination
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Depth
- 42.5 mm
- Height
- 160 mm
- Width
- 40.5 mm
Specifications
- Depth
- 42.5 mm
- Height
- 160 mm
- Width
- 40.5 mm
