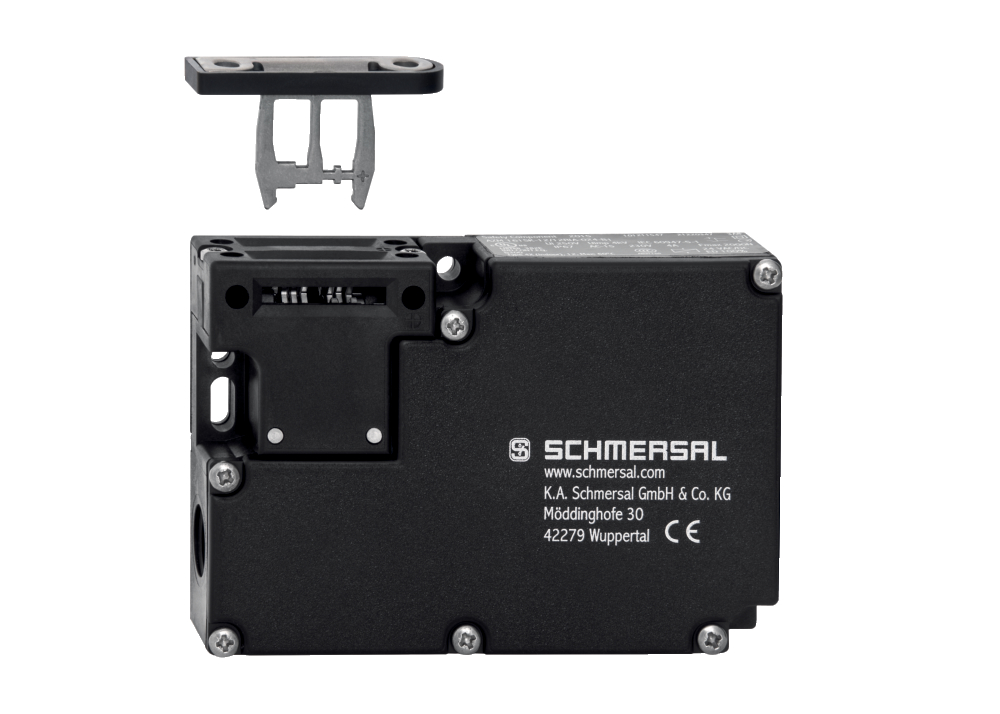

Schmersal 101215899

Ambient conditions

• Ambient temperature
  • -30 ... +60 °C
• Degree of protection
  • IP67
• Storage and transport temperature, maximum
  • +85 °C
• Storage and transport temperature, minimum
  • -25 °C

Ambient conditions - Insulation values

• Rated impulse withstand voltage U
  • 4 kV
• Rated insulation voltage U
  • 250 VAC

Approvals - Standards

• Certificates
  • cULus | CCC

Electrical data

• Electrical power consumption, maximum
  • 10 W
• Material of the contacts, electrical
  • Silver
• Rated control voltage
  • 24 VAC/DC
• Required rated short-circuit current
  • 1,000 A
• Switching element
  • NO contact, NC contact
• Switching frequency
  • 1,000 /h
• Switching principle
  • slow action, positive break NC contact
• Thermal test current
  • 6 A

Electrical data - Auxiliary contacts

• Current, Utilisation category AC-15
  • 4 A
• Current, Utilisation category DC-13
  • 2.5 A
• Voltage, Utilisation category AC-15
  • 230 VAC
• Voltage, Utilisation category DC-13
  • 24 VDC

Electrical data - Magnet control

• Magnet switch-on time
  • 100 %
• Test pulse duration, maximum
  • 5 ms
• Test pulse interval, minimum
  • 50 ms

Electrical data - Safety contacts

• Current, Utilisation category AC-15
  • 4 A
• Current, Utilisation category DC-13
  • 2.5 A
• Voltage, Utilisation category AC-15
  • 230 VAC
• Voltage, Utilisation category DC-13
  • 24 VDC

General data

• Coding
  • Individual coding
• Coding level according to EN ISO 14119
  • High
• Enclosure material
  • Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Gross weight
  • 525 g
• Material of the actuator
  • Stainless steel
• Standards
  • EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-1
• Working principle
  • electromechanical

General data - Features

• Emergency exit
  • Yes
• Manual release
  • Yes
• Number of actuating directions
  • 3
• Number of auxiliary contacts
  • 2
• Number of safety contacts
  • 4
• Power to lock
  • Yes

Mechanical data

• Actuating play in direction of actuation
  • 5.5 mm
• Actuating radius, minimum
  • 95 mm
• Actuating speed, maximum
  • 2 m/s
• Holding force F
  • 2,000 N
  • 2,600 N
• Latching force
  • 30 N
• Mechanical life, minimum
  • 1,000,000 Operations
• Positive break force, minimum
  • 20 N
• Positive break force per NC contact, minimum
  • 10 N
• Positive break travel
  • 10 mm
• Type of the fixing screws
  • 3x M6

Mechanical data - Connection technique

• Allowed type of cable
  • solid single-wire | solid multi-wire | flexible
• Cable entry
  • 4 x M16 x 1,5
• Cable section, maximum
  • 1.5 mm²
• Cable section, minimum
  • 0.25 mm²
• Note (Cable section)
  • All indications including the conductor ferrules.
• Termination
  • Screw terminals

Mechanical data - Dimensions

• Height of sensor
  • 90 mm
• Length of sensor
  • 30 mm
• Width of sensor
  • 130 mm

Note

• Note (Emergency exit)
  • The emergency exit is used where an intervention in an already locked hazardous area is required | Emergency exit by pressing the red push button | Top-side (ordering suffix -TD) or rear-side (ordering suffix -TU) mounting possible | Resetting by pulling on the red latched button
• Note (Emergency exit, Manual release)
  • A combination of manual release and emergency exit in different mounting directions in only possible for the following variants: -ED/-TU and -TD/-EU
• Note (General)
  • The axis of the hinge must be 11 mm above and in a parallel plane to the top surface of the safety switch. | Actuating radius adjustable to minimum 95 mm, using a hexagonal key wrench AF 2.5 mm (a) | The actuator is not available separately.
• Note (Manual release)
  • For maintenance, installation, etc. | For manual release using M5 triangular key, available as accessory

Other data

• Note (applications)
  • sliding safety guard | removable guard | hinged safety guard

Safety classification

• Mission time
  • 20 Year(s)
• Standards
  • EN ISO 13849-1

Safety classification - Safety outputs

• B
  • 1,000,000 Operations
  • 2,000,000 Operations
• Note (B
  • at 10% I | and ohmic load

Scope of delivery

• Scope of delivery
  • Not available as spare part | Slot sealing plugs | The actuator is included in the scope of delivery
