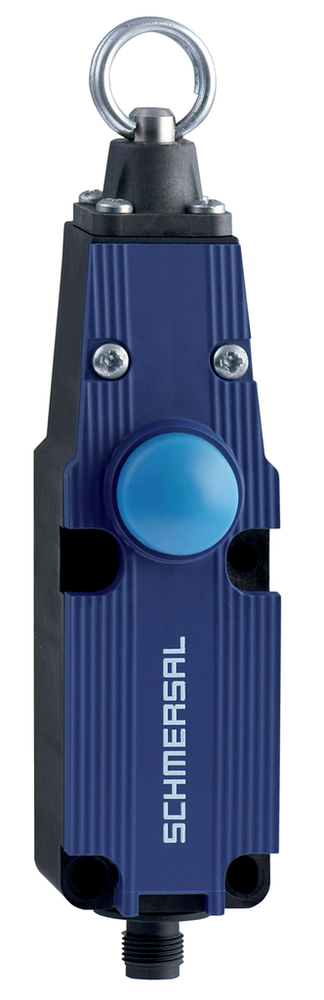

Schmersal 101215845

Ambient conditions

• Ambient temperature
  • -25 ... +60 °C
• Degree of protection
  • IP67
• Note (Relative humidity)
  • non-condensing | non-icing
• Protection class
  • II
• Relative humidity, maximum
  • 95 %
• Relative humidity, minimum
  • 30 %
• Resistance to vibrations
  • 10 … 150 Hz, amplitude 0.35 mm / 5 g
• Restistance to shock
  • 15 g / 11 ms
• Storage and transport temperature, maximum
  • +85 °C
• Storage and transport temperature, minimum
  • -25 °C

Ambient conditions - Insulation values

• Degree of pollution
  • 3
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 0.8 kV
• Rated insulation voltage U
  • 32 V

Approvals - Standards

• Certificates
  • cULus | ASi-SaW

Electrical data

• Current consumption
  • 50 mA
• Switching frequency
  • 3,600 /h
• Switching principle
  • Snap action

Electrical data - AS Interface

• Rated operating voltage
  • 18 ... 31.6 VDC (Protection against polarity reversal)

Electrical data - AS-Interface specification

• AS-i, ID-Code
  • 0xB
• AS-i, ID-Code1
  • 0xF
• AS-i, ID-Code2
  • 0xF
• AS-i Input, Channel 1
  • Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i Input, Channel 2
  • Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i Input module address
  • 0
• AS-i, IO-Code
  • 0x0
• AS-i Outputs, DO 0 … DO 3
  • No Function
• AS-i Parameter bits, P0
  • Channel 2 switched
• AS-i Parameter bits, P1
  • No function
• AS-i Parameter bits, P2
  • No function
• AS-i Parameter bits, P3
  • No function
• AS-i Profile
  • S-0.B.F.F
• AS-i Version
  • V 3.0
• Note (AS-i Input module address)
  • Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• Note (AS-i Parameter bits)
  • Set the parameter outputs to "1111" (0xF) | FID: periphery error

General data

• Enclosure material
  • Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Gross weight
  • 265 g
• Length of the wire, maximum
  • 10 m
• Material of the housing cover
  • Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Reaction time, maximum
  • 100 ms
• Standards
  • EN 50295 | EN ISO 13849-1 | EN ISO 13850 | EN IEC 60947-5-1 | EN IEC 61508

Mechanical data

• Actuating force, maximum
  • 200 N
• Actuating travel
  • 400 mm
• Mechanical life, minimum
  • 100,000 Operations

Mechanical data - Connection technique

• Termination
  • Connection for flat cable

Mechanical data - Dimensions

• Height of sensor
  • 182.5 mm
• Length of sensor
  • 51 mm
• Width of sensor
  • 40.5 mm

Note

• Note (General)
  • Recommended cable lengths for pull-wire Emergency-Stop switches in relation to the range of ambient temperature. | As the thimbles are subject to deformation in case of wire pull, the wire should be pulled several times after fitting. After that, the wire must be re-tensioned using the eyebolt or the tensioner. | The addressing must take place via the M12 connector or the flat cable connection. | At 2 mm to 5 mm distance, intermediate wire supports are required, see accessories

Safety classification

• Category
  • 4
• Mission time
  • 20 Year(s)
• Note (PFH-value)
  • up to max. 5,000 switching cycles/year
• Performance Level, up to
  • e
• PFH value
  • 1.40 x 10⁻⁸ /h
• Safety Integrity Level (SIL), suitable for applications in
  • 3
• Standards
  • EN IEC 61508
