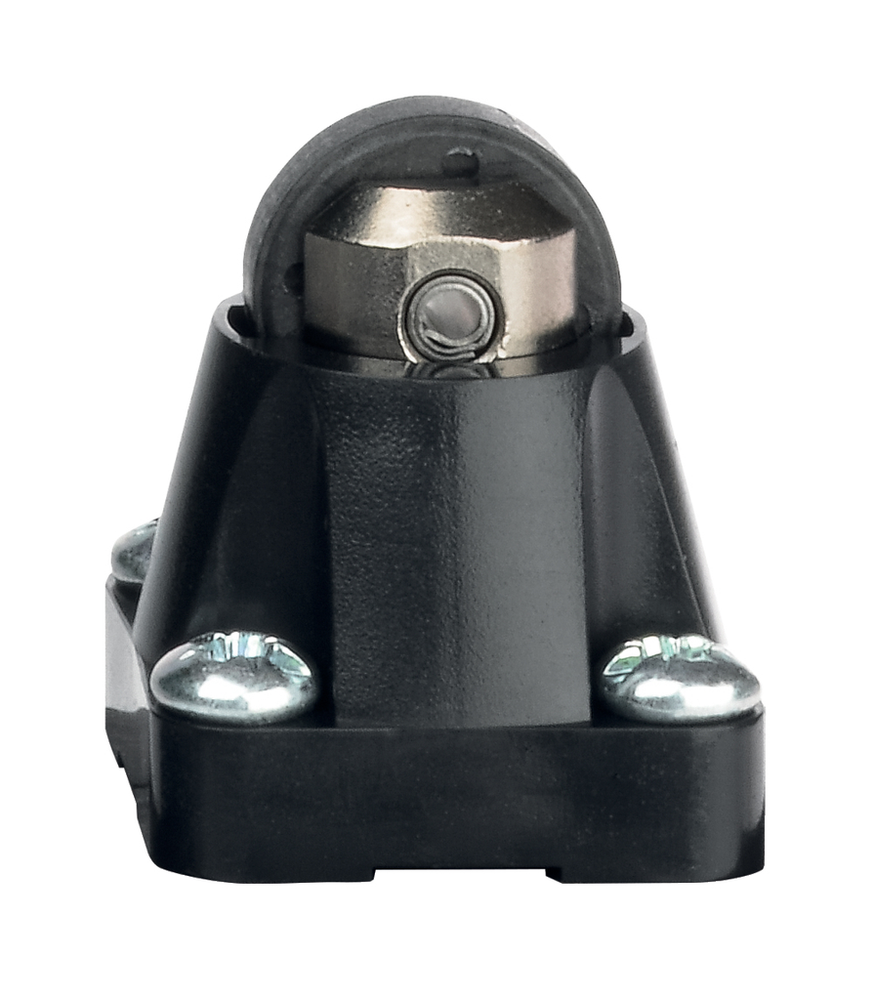

Schmersal 101213945

Ambient conditions

• Ambient temperature
  • -25 ... +60 °C
• Degree of protection
  • IP67
• Note (Relative humidity)
  • non-condensing | non-icing
• Relative humidity, maximum
  • 95 %
• Relative humidity, minimum
  • 30 %
• Resistance to vibrations
  • 10 … 150 Hz, amplitude 0.35 mm / 5 g
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +85 °C
• Storage and transport temperature, minimum
  • -25 °C

Ambient conditions - Insulation values

• Rated impulse withstand voltage U
  • 0.8 kV
• Rated insulation voltage U
  • 32 VDC

Approvals - Standards

• Certificates
  • TÜV | cULus | ASi-SaW

Electrical data

• Current consumption
  • 50 mA
• Switching element
  • Opener (NC)
• Switching frequency
  • 5,000 /h
• Switching principle
  • Slow action

Electrical data - AS Interface

• Rated operating voltage
  • 18 ... 31.6 VDC (Protection against polarity reversal)

Electrical data - AS-Interface specification

• AS-i Input, Channel 1
  • Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i Input, Channel 2
  • Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i Input module address
  • 0
• AS-i Outputs, DO 0 … DO 3
  • No Function
• AS-i Parameter bits, P0
  • Channel 2 switched
• AS-i Parameter bits, P1 ... P3
  • No function
• AS-i Profile
  • S-0.B.F.F
• AS-i Version
  • V 3.0
• Note (AS-i Input module address)
  • Preset to address 0, can be changed through AS-interface bus master or hand-held programming device

General data

• Actuator type to EN 50047
  • c
• Enclosure coating material
  • painted
• Enclosure material
  • Metal, zinc die-cast
• Gross weight
  • 195 g
• Housing construction form
  • Norm construction design
• Standards
  • EN IEC 62026-2 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 61508

General data - Features

• Integral system diagnostics, status
  • Yes
• Number of auxiliary contacts
  • 0
• Number of safety contacts
  • 2
• Safety functions
  • Yes

Mechanical data

• Actuating element
  • Roller plunger
• Actuating force, minimum
  • 9 N
• Actuating speed, maximum
  • 1 m/s
• Mechanical life, minimum
  • 1,000,000 Operations
• Positive break force, minimum
  • 19 N

Mechanical data - Connection technique

• Material of the connector (electrical)
  • Metal film
• Termination
  • Connector plug M12, 5-pole, can be rotated

Mechanical data - Dimensions

• Height of sensor
  • 106 mm
• Length of sensor
  • 30 mm
• Width of sensor
  • 30 mm

Pin assignment

• PIN 1
  • AS-Interface +
• PIN 2
  • n.c.
• PIN 3
  • AS-Interface -
• PIN 4
  • n.c.
• PIN 5
  • Functional earth connection

Safety classification

• Category
  • 3
  • 1
• Mission time
  • 20 Year(s)
• Note (PFH-value)
  • up to max. 100,000 switching cycles/year
• Performance Level, up to
  • c
  • d
• PFH value
  • 1.01 x 10⁻⁷ /h
  • 1.14 x 10⁻⁶ /h
• Please note:
  • Einsetzbar wenn ein Fehlerausschluss für eine gefahrbringende Beschädigung der 1-kanaligen Mechanik zulässig ist und ein ausreichender Manipulationsschutz gewährleistet ist.
• Safety Integrity Level (SIL), suitable for applications in
  • 2
  • 1
• Standards
  • EN IEC 61508

Status indication

• Note (LED switching conditions display)
  • (1) LED yellow: Channel 1 / AS-i SaW Bit 0.1 | (2) LED green-red (AS-i Duo LED):Supply voltage / Communication error / Slave address = 0 | (3) LED yellow: Channel 2 / AS-i SaW Bit 2.3
