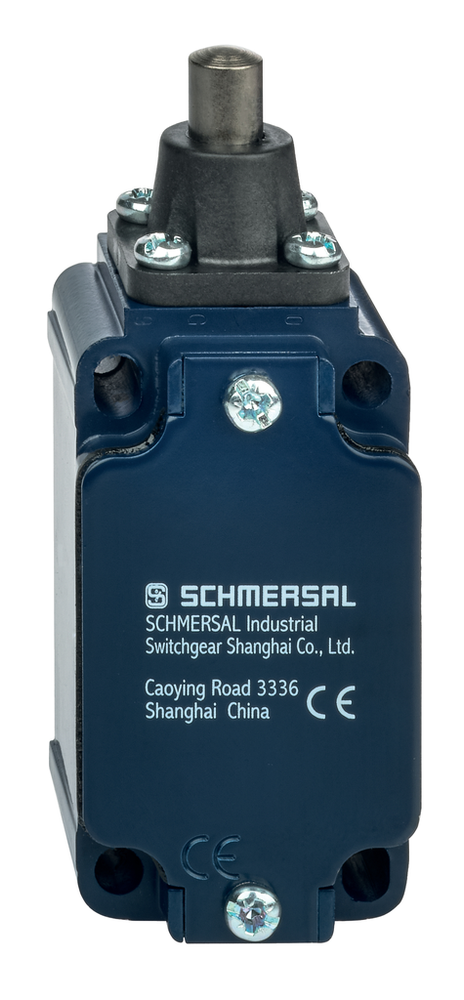

Schmersal 101211814
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
U-EX-TS335-11YUE
Schmersal 101211814 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature, maximum (Cable section 1mm2)
- +50 °C
- Ambient temperature, maximum (Cable section 2.5mm2)
- +55 °C
- Degree of protection
- IP65
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 4 kV
- Rated insulation voltage U
- 250 VAC
Approvals - Standards
- Certificates
- cULus | IEC Ex | CCC | CCC EX | DEKRA
Electrical data
- Material of the contacts, electrical
- Silver
- Switching element
- NO contact, NC contact
- Switching frequency
- 1,800 /h
- Switching principle
- Slow action with overlapping contacts
- Thermal test current
- 5 A
Explosion protection
- Explosion protection category
- 2D | 2G
- Explosion protection designation
- II 2G Ex d e IIC T6 Gb | II 2D Ex tb IIIC T80°C Db
- Explosion protection: regulations
- EN IEC 60079-0 | EN IEC 60079-1 | EN IEC 60079-31 | EN IEC 60079-7
- Explosion protection zones
- 1 | 21
- Manufacturer declaration
- Manufacturer declaration | Additional simple electrical apparatus (Zone 0 and 20)
General data
- Actuator type to EN 50041
- B
- Enclosure coating material
- painted
- Enclosure material
- Metal, zinc die-cast
- Gross weight
- 320 g
- Housing construction form
- Norm construction design
- Standards
- BG-GS-ET-15
General data - Features
- Number of auxiliary contacts
- 1
- Number of safety contacts
- 1
- Safety functions
- Yes
Mechanical data
- Actuating element
- Plunger
- Actuating force, minimum
- 17 N
- Actuating speed, maximum
- 0.5 m/s
- Impact energy, maximum
- 7 J
- Mechanical life, minimum
- 1,000,000 Operations
- Note Bounce duration
- Bounce duration in accordance with actuating speed
- Note (Switchover time)
- Switchover time in accordance with actuating speed
Mechanical data - Connection technique
- Cable cross-section of the cable glands, maximum
- 12 mm
- Cable cross-section of the cable glands, minimum
- 7 mm
- Cable section, maximum
- 2.5 mm²
- Cable section, minimum
- 1 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
- Termination
- Screw terminals M20 x 1.5
- Wire cross-section
- 13 AWG
Mechanical data - Dimensions
- Height of sensor
- 103.5 mm
- Length of sensor
- 38 mm
- Width of sensor
- 40.5 mm
Safety classification
- Mission time
- 20 Year(s)
- Standards
- EN ISO 13849-1
Safety classification - Safety outputs
- B
- 20,000,000 Operations
Scope of delivery
- Scope of delivery
- Ex-certified screwed cable gland
