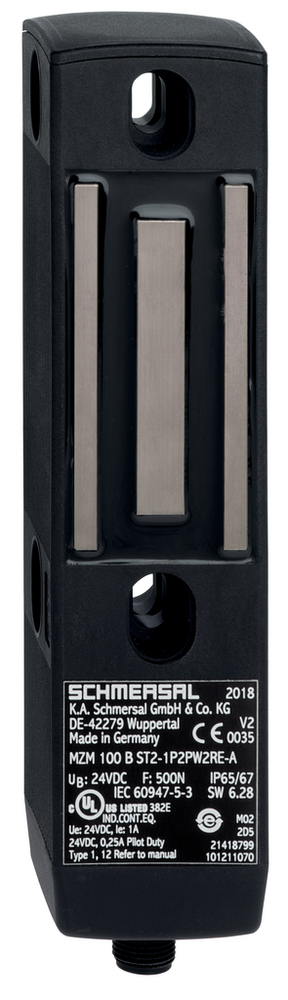

Schmersal 101211070

Accessory

• Recommendation (actuator)
  • MZM 100-B1.1

Ambient conditions

• Ambient temperature
  • -25 ... +55 °C
• Degree of protection
  • IP65 | IP67
• Note (Relative humidity)
  • non-condensing | non-icing
• Permissible installation altitude above sea level, maximum
  • 2,000 m
• Protection class
  • III
• Relative humidity, maximum
  • 95 %
• Relative humidity, minimum
  • 30 %
• Resistance to vibrations
  • 10 … 150 Hz, amplitude 0.35 mm / 5 g
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +70 °C
• Storage and transport temperature, minimum
  • -25 °C

Ambient conditions - Insulation values

• Degree of pollution
  • 3
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 0.8 kV
• Rated insulation voltage U
  • 32 VDC

Approvals - Standards

• Certificates
  • TÜV | cULus | UKCA

Electrical data

• Current consumption with magnet ON, average
  • 350 mA
• Current consumption with magnet ON, peak
  • 550 mA / 10 ms
• External wire and device fuse rating
  • 2 A gG
• No-load supply current I
  • 100 mA
• Operating current
  • 1,100 mA
• Operating voltage
  • 24 VDC -15 % / +10 % (stabilised PELV power supply)
• Rated operating voltage
  • 24 VDC
• Required rated short-circuit current
  • 100 A
• Switching frequency, maximum
  • 1 Hz
• Time to readiness, maximum
  • 4,000 ms

Electrical data - Diagnostic outputs

• Current, Utilisation category DC-13
  • 0.05 A
• Designation, Diagnostic outputs
  • OUT
• Design of control elements
  • short-circuit proof, p-type
• Voltage drop U
  • 2 V
• Voltage, Utilisation category DC-13
  • 24 VDC

Electrical data - Magnet control

• Classification ZVEI CB24I, Sink
  • C0
• Classification ZVEI CB24I, Source
  • C1 | C2 | C3
• Current consumption at 24 V
  • 10 mA
• Designation, Magnet control
  • IN
• Magnet switch-on time
  • 100 %
• Switching thresholds
  • -3 V … 5 V (Low) | 15 V … 30 V (High)
• Test pulse duration, maximum
  • 5 ms
• Test pulse interval, minimum
  • 40 ms

Electrical data - Safety digital inputs

• Classification ZVEI CB24I, Sink
  • C1
• Classification ZVEI CB24I, Source
  • C1 | C2 | C3
• Current consumption at 24 V
  • 5 mA
• Designation, Safety inputs
  • X1 and X2
• Switching thresholds
  • −3 V … 5 V (Low) | 15 V … 30 V (High)
• Test pulse duration, maximum
  • 1 ms
• Test pulse interval, minimum
  • 100 ms

Electrical data - Safety digital outputs

• Classification ZVEI CB24I, Sink
  • C1
• Classification ZVEI CB24I, Source
  • C1
• Current, Utilisation category DC-13
  • 0.25 A
• Designation, Safety outputs
  • Y1 and Y2
• Design of control elements
  • short-circuit proof, p-type
• Leakage current I
  • 0.5 mA
• Rated operating current (safety outputs)
  • 250 mA
• Test pulse duration, maximum
  • 1 ms
• Test pulse interval, typical
  • 1000 ms
• Voltage drop U
  • 1 V
• Voltage, Utilisation category DC-13
  • 24 VDC

General data

• Coding
  • Universal coding
• Coding level according to EN ISO 14119
  • Low
• Duration of risk, maximum
  • 150 ms
• Enclosure material
  • Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Gross weight
  • 700 g
• Reaction time, maximum
  • 150 ms
• Standards
  • EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-3 | EN IEC 61508
• Working principle
  • inductive

General data - Features

• Actuator monitored
  • Yes
• Cross-circuit detection
  • Yes
• Integral system diagnostics, status
  • Yes
• Latching
  • Yes
• Number of safety contacts
  • 2
• Power to lock
  • Yes
• Safety functions
  • Yes
• Series-wiring
  • Yes
• Short circuit detection
  • Yes

Mechanical data

• Holding force, guaranteed
  • 500 N
• Holding force, typically
  • 750 N
• Latching force, maximum
  • 100 N
• Latching force, minimum
  • 30 N
• Mechanical life, minimum
  • 1,000,000 Operations
• Note (Mechanical life)
  • Actuating speed ≤ 0.5 m/s | Operations for door weights ≤ 5 kg
• Tightening torque of the fixing screws
  • 8 Nm
• Type of the fixing screws
  • 2x M6

Mechanical data - Connection technique

• Length of sensor chain, maximum
  • 200 m
• Note (length of the sensor chain)
  • Cable length and cross-section change the voltage drop dependiing on the output current
• Note (series-wiring)
  • Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
• Termination
  • Connector M12, 8-pole

Mechanical data - Dimensions

• Height of sensor
  • 177.5 mm
• Length of sensor
  • 40 mm
• Width of sensor
  • 40 mm

Mechanical data - Switching distances according EN IEC 60947-5-3

• Assured switching distance "OFF" S
  • 1 mm
• Assured switching distance "ON" S
  • 0 mm

Note

• Note (General)
  • As long as the actuating unit is applied to the solenoid interlock, the unlocked safety guard can be relocked. In this case, the safety outputs are re-enabled, so that the safety guard must not be opened.

Pin assignment

• PIN 1
  • A1 Supply voltage UB
• PIN 2
  • X1 Safety input 1
• PIN 3
  • A2 GND
• PIN 4
  • Y1 Safety output 1
• PIN 5
  • OUT Diagnostic output
• PIN 6
  • X2 Safety input 2
• PIN 7
  • Y2 Safety output 2
• PIN 8
  • IN Solenoid control

Safety classification

• Standards
  • EN ISO 13849-1 | EN IEC 61508

Safety classification - Interlocking function

• Category
  • 4
• Mission time
  • 20 Year(s)
• Performance Level, up to
  • e
• PFH value
  • 3.54 x 10⁻⁹ /h
• Safety Integrity Level (SIL), suitable for applications in
  • 3

Scope of delivery

• Scope of delivery
  • Actuator must be ordered separately.

Status indication

• Note (LED switching conditions display)
  • Operating condition: LED green | Error / functional defect: LED red | Supply voltage UB: LED green
