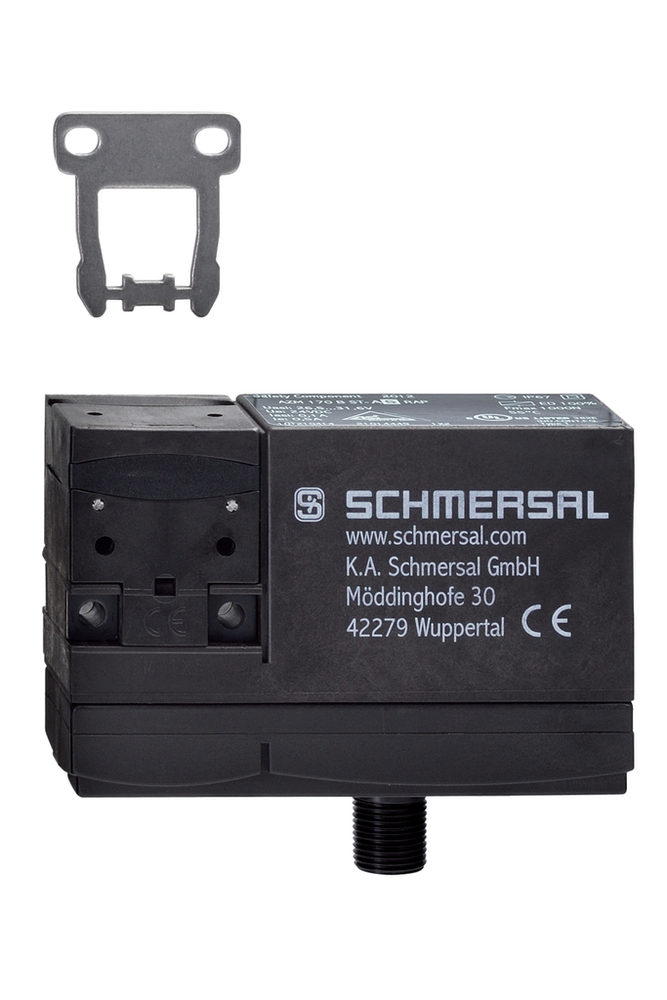

Schmersal 101210414

Ambient conditions

• Ambient temperature
  • -25 ... +55 °C
• Degree of protection
  • IP67
• Note (Relative humidity)
  • non-condensing | non-icing
• Protection class
  • II
• Relative humidity, maximum
  • 95 %
• Relative humidity, minimum
  • 30 %
• Storage and transport temperature, maximum
  • +85 °C
• Storage and transport temperature, minimum
  • -25 °C

Ambient conditions - Insulation values

• Degree of pollution
  • 3
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 0.8 kV
• Rated insulation voltage U
  • 32 VDC

Approvals - Standards

• Certificates
  • TÜV | cULus | ASi-SaW

Electrical data - AS Interface

• AS-i Current consumption, maximum
  • 100 mA
• Rated operating voltage
  • 26.5 ... 31.6 VDC (Protection against polarity reversal)

Electrical data - AS-Interface specification

• AS-i, ID-Code
  • 0xB
• AS-i, ID-Code1
  • 0xF
• AS-i, ID-Code2
  • 0xE
• AS-i Input, Channel 1
  • Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i Input, Channel 2
  • Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i Input module address
  • 0
• AS-i, IO-Code
  • 0x7
• AS-i Outputs, DO 0
  • Solenoid control
• AS-i Outputs, DO 1
  • No Function
• AS-i Outputs, DO 2
  • No Function
• AS-i Outputs, DO 3
  • No Function
• AS-i Parameter bits, P0
  • Safety guard and actuator detected
• AS-i Parameter bits, P1
  • Solenoid interlock locked
• AS-i Parameter bits, P2
  • No function
• AS-i Parameter bits, P3
  • No function
• AS-i Profile
  • S-7.B.F.E
• AS-i Specification
  • Safety-Slave
• AS-i Version
  • V 2.1
• Note (AS-i Input module address)
  • Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• Note (AS-i Parameter bits)
  • Set the parameter outputs to "1111" (0xF) | FID: periphery error

Electrical data - Auxiliary voltage

• Current consumption
  • 500 mA
• Operating voltage
  • 24 VDC -15 % / +10 % (stabilised PELV power supply)
• Rated operating voltage
  • 24 VDC

General data

• Enclosure material
  • Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Gross weight
  • 310 g
• Reaction time, maximum
  • 100 ms
• Standards
  • EN IEC 62026-2 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 61508
• Working principle
  • electromechanical

General data - Features

• Actuator monitored
  • Yes
• Integral system diagnostics, status
  • Yes
• Number of actuating directions
  • 2
• Power to lock
  • Yes

Mechanical data

• Actuating speed, maximum
  • 2 m/s
• Holding force
  • 1,000 N
• Latching force
  • 30 N
• Mechanical life, minimum
  • 1,000,000 Operations

Mechanical data - Connection technique

• Termination
  • Connector plug M12, 4-pole, (A-coding)

Mechanical data - Dimensions

• Height of sensor
  • 75.5 mm
• Width of sensor
  • 90 mm

Note

• Note (General)
  • Interlocks with the power to lock principle may only be used in special cases after a thorough evaluation of the accident risk, since the guarding device can immediately be opened on failure of the electrical power supply or when the main switch is opened.

Pin assignment

• PIN 1
  • AS-i +
• PIN 2
  • Aux - (P)
• PIN 3
  • AS-Interface -
• PIN 4
  • Aux + (P)

Safety classification

• Category
  • 3
  • 1
• Mission time
  • 20 Year(s)
• Note (PFH-value)
  • up to max. 100,000 switching cycles/year
• Performance Level, up to
  • d
  • c
• PFH value
  • 1.16 x 10⁻⁶ /h
  • 1.01 x 10⁻⁷ /h
• Please note:
  • Einsetzbar wenn ein Fehlerausschluss für eine gefahrbringende Beschädigung der 1-kanaligen Mechanik zulässig ist und ein ausreichender Manipulationsschutz gewährleistet ist.
• Safety Integrity Level (SIL), suitable for applications in
  • 2
  • 1
• Standards
  • EN IEC 61508

Scope of delivery

• Scope of delivery
  • Actuator must be ordered separately.

Status indication

• Note (LED switching conditions display)
  • (1) LED green: Supply voltage | (2) red LED: Communication error / Slave address = 0 | (3) LED yellow : Enabling status
