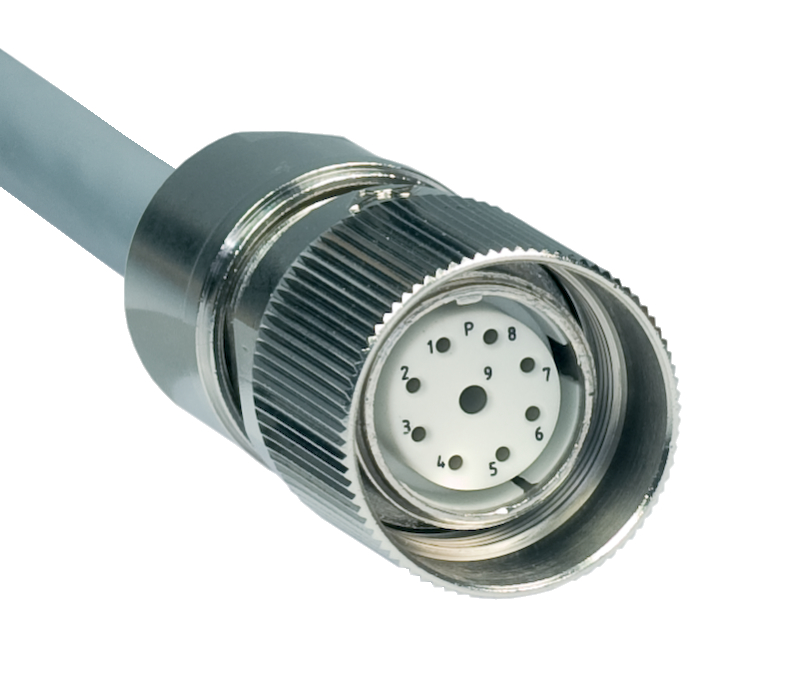

Schmersal 101209959
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
A-K8+1P-M23-S-G-5M-BK-1-X-X-4
Schmersal 101209959 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (Connector)
- -20 ... +130 °C
- Ambient temperature (fixed)
- -30 ... +80 °C
- Ambient temperature (moved)
- -10 ... +80 °C
- Degree of protection
- IP67 | IP66
Electrical data
- Rated operating voltage
- 60 VAC
- 60 VDC
General data
- Gross weight
- 627 g
- Versions
- straight
General data - Features
- Number of cable wires
- 8
Mechanical data
- Tightening torque, maximum
- 1 Nm
Mechanical data - Connection technique
- Bending radius (fixed)
- 4 x Ø-cable
- Bending radius (repeated)
- 10 x Ø-cable
- Cable diameter
- 7.8 mm
- Cable type
- LiYY
- Colour of the Cable mantle
- Grey
- Length of cable
- 5 m
- Wire cross-section
- 0.75 mm
Mechanical data - connector side A
- Colour of the handle
- Chromium-plated
- Connector latching
- Screw locking
- Connector typ
- Female connector
- Design
- straight
- Material of the gland
- Metal, CuZn, nickel-plated
- Material of the handle
- Metall, CuZn chromated
Pin assignment
- PIN 1
- 1A1 Ue: (1)
- PIN 2
- X1 Safety input 1
- PIN 3
- A2 GND
- PIN 4
- Y1 Safety output 1
- PIN 5
- OUT Diagnostic output
- PIN 6
- X2 Safety input 2
- PIN 7
- Y2 Safety output 2
- PIN 8
- IN Solenoid control
- PIN 9
- Not used
