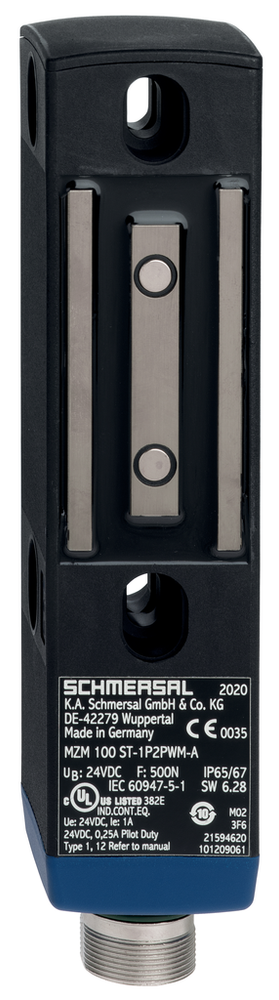

Schmersal 101209061

Accessory

• Recommendation (actuator)
  • MZM 100-B1.1

Ambient conditions

• Ambient temperature, maximum
  • +55 °C
• Ambient temperature, minimum
  • -25 °C
• Degree of protection
  • IP65 to EN 60529 | IP67 to EN 60529
• Note (Relative humidity)
  • non-condensing | non-icing
• Protection rating
  • III
• Relative humidity, maximum
  • 95 %
• Relative humidity, minimum
  • 30 %
• Resistance to vibrations to EN 60068-2-6
  • 10 … 150 Hz, amplitude 0.35 mm
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +70 °C
• Storage and transport temperature, minimum
  • -25 °C

Ambient conditions - Insulation value

• Degree of pollution to VDE 0100
  • 3
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 0.8 kV
• Rated insulation voltage U
  • 32 VDC

Approval - Standards

• Certificates
  • TÜV | cULus | EAC

Electrical data

• No-load supply current I
  • 600 mA
• Note
  • Cable length and cable section alter the voltage drop depending on the output current
• Operating current
  • 50 mA
• Operating voltage, maximum
  • 26.4 VDC
• Operating voltage, minimum
  • 20.4 VDC
• Required rated short-circuit current to EN 60947-5-1
  • 100 A
• Switching frequency, maximum
  • 1 Hz

Electrical data - Diagnostic output

• Current, Utilisation category DC-13
  • 0.05 A
• Voltage drop U
  • 2 V
• Voltage, Utilisation category DC-13
  • 24 VDC

Electrical data - Fail-safe digital inputs

• Classification ZVEI CB24I, Sink
  • C1
• Classification ZVEI CB24I, Source
  • C1 | C2 | C3
• Switching thresholds
  • −3 V … 5 V (Low) | 15 V … 30 V (High)

Electrical data - Fail-safe digital outputs

• Classification ZVEI CB24I, Sink
  • C1
• Classification ZVEI CB24I, Source
  • C1
• Current leakage I
  • 0.5 mA
• Current, Utilisation category DC-13
  • 0.25 A
• Rated operating current (safety outputs)
  • 250 mA
• Voltage drop U
  • 1 V
• Voltage, Utilisation category DC-13
  • 24 VDC

Electrical data - Solenoid control

• Classification ZVEI CB24I, Sink
  • C0
• Classification ZVEI CB24I, Source
  • C1 | C2 | C3
• Switching thresholds
  • -3 V … 5 V (Low) | 15 V … 30 V (High)

General data

• Active principle
  • inductive
• Coding level according to ISO 14119
  • Low
• Duration of risk, maximum
  • 150 ms
• Enclosure material
  • Glass-fibre, reinforced thermoplastic
• general information
  • Universal coding
• Gross weight
  • 600 g
• Reaction time, maximum
  • 150 ms
• Standards
  • IEC 61508 | EN 60947-5-3 | EN ISO 13849-1 | EN ISO 14119
• Time to readiness, maximum
  • 4,000 ms

General data - Features

• Guard locking monitored
  • Yes
• Integral System Diagnostics, status
  • Yes
• Latching
  • Yes
• Number of safety contacts
  • 2
• Number of Series-wiring of sensors
  • 31
• Power to lock
  • Yes
• Safety functions
  • Yes
• Series-wiring
  • Yes
• Short circuit detection
  • Yes
• Short-circuit recognition
  • Yes

Mechanical data

• Clamping force, guaranteed
  • 500 N
• Clamping force, typically
  • 750 N
• Latching force
  • 15 N
• Mechanical life, minimum
  • 1,000,000 Operations
• Note (Mechanical lifetime)
  • Actuating speed < 0.5 m/s | Operations for door weights ≤ 5 kg

Mechanical data - Connection technique

• Terminal Connector
  • Connector M23, 8+1-pole

Mechanical data - Dimensions

• Height of sensor
  • 179 mm
• Length of sensor
  • 40 mm
• Width of sensor
  • 40 mm

Pin assignment

• PIN 1
  • A1 Supply voltage UB
• PIN 2
  • X1 Safety input 1
• PIN 3
  • A2 GND
• PIN 4
  • Y1 Safety output 1
• PIN 5
  • OUT Diagnostic output
• PIN 6
  • X2 Safety input 2
• PIN 7
  • Y2 Safety output 2
• PIN 8
  • IN Solenoid control
• PIN 9
  • without function

Safety appraisal

• Standards
  • IEC 61508 | EN ISO 13849-1

Safety appraisal - Interlocking

• Control category
  • 4
• Mission Time
  • 20 Year(s)
• Performance level, up to
  • e
• PFH-value
  • 3.54 x 10⁻⁹ /h
• Safety Integrity Level (SIL), suitable for applications in
  • 3

Scope of delivery

• Included in delivery
  • Actuators must be ordered separately.

Status indication

• Note (LED switching conditions display)
  • Operating condition: LED green | Error / functional defect: LED red | Supply voltage UB: LED green
