Description
BNS 303-02Z-ST-2211

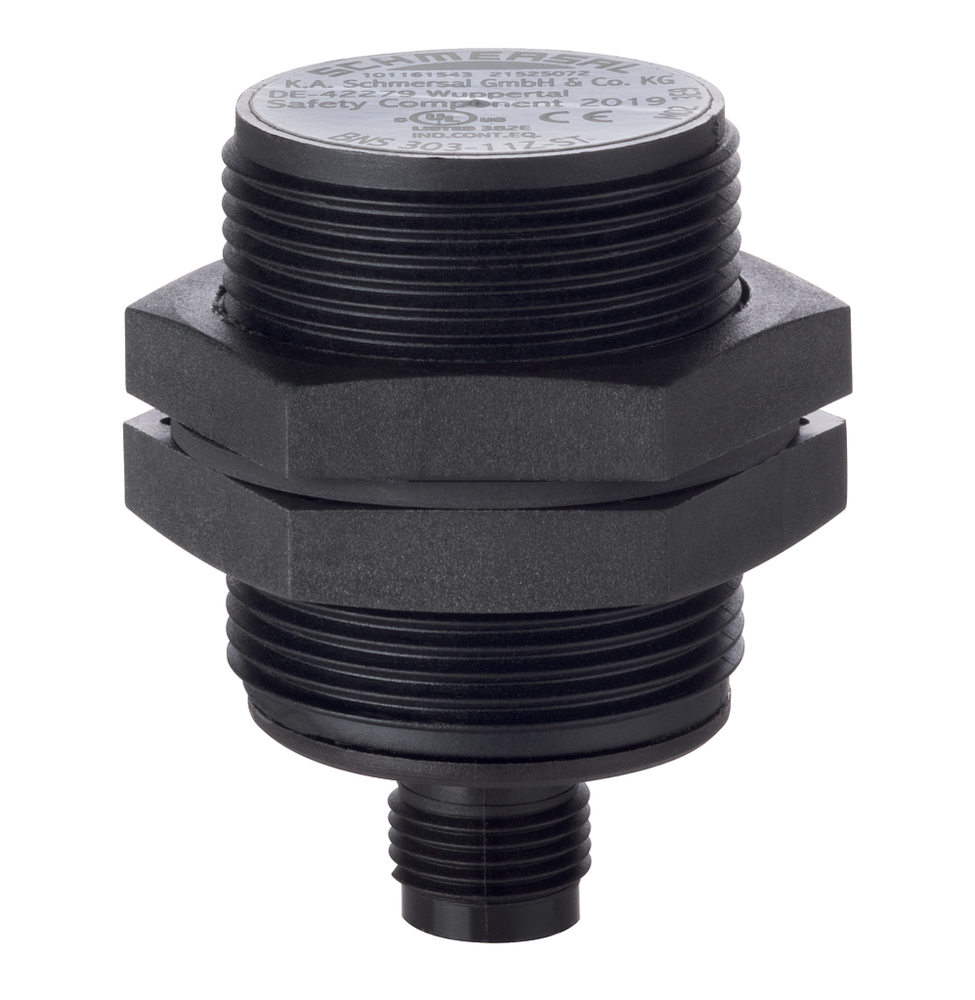

Schmersal 101208000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Accessory
- Recommendation (actuator)
- BPS 300 | BPS 303 | BPS 303 SS
- Recommended safety switchgear
- SRB 219IT | SRB 308IT | SRB 301ST | SRB-E-301ST | SRB-E-201LC
Ambient conditions
- Ambient temperature
- -25 ... +70 °C
- Degree of protection
- IP67
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
- Restistance to shock
- 30 g / 11 ms
- Storage and transport temperature, maximum
- +70 °C
- Storage and transport temperature, minimum
- -25 °C
Approvals - Standards
- Certificates
- TÜV | cULus
Electrical data
- Switching capacity, maximum
- 10 W
- Switching current, maximum
- 0.4 A
- Switching frequency, maximum
- 5 Hz
- Switching voltage, maximum
- 100 VAC
- 100 VDC
Electrical data - Digital Output
- Design of control elements
- Miscellaneous, Reed contacts
General data
- Coding level according to EN ISO 14119
- Low
- Enclosure material
- Glass-fibre, reinforced thermoplastic
- Gross weight
- 40 g
- Installation conditions (mechanical)
- quasi-flush
- Material of the nuts
- Thermoplastic
- Standards
- BG-GS-ET-14 | EN IEC 60947-5-3
- Working principle
- Magnetic drive
General data - Features
- Number of normally closed (NC)
- 2
- Number of safety contacts
- 2
Mechanical data
- Actuating element
- Magnet
- Direction of motion
- Head-on to the active surface
- Tightening torque of nuts, maximum
- 3 Nm
Mechanical data - Connection technique
- Termination
- Connector M12, 4-pole
Mechanical data - Dimensions
- ISO thread of the sensor
- M30
- Length of sensor
- 44 mm
- width across flats
- 36 BK
Mechanical data - Switching distances according EN IEC 60947-5-3
- Assured switching distance "OFF" S
- 18 mm
- Assured switching distance "ON" S
- 8 mm
Note
- Note (General)
- Contact symbols shown for the closed condition of the guard device. | The contact configuration for versions with or without LED is identical.
Safety classification
- Mission time
- 20 Year(s)
- Standards
- EN ISO 13849-1
Safety classification - Safety outputs
- B
- 25,000,000 Operations
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
- Scope of delivery of mounting material
- 2x Mounting material M30 x 1.5 nuts
