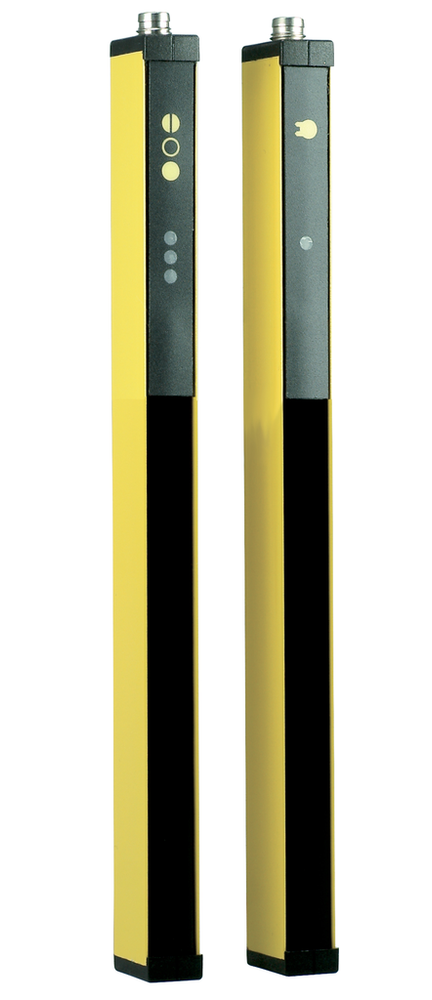

Schmersal 101207677
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SLC 430-E/R0908-30-RF-SYS
Schmersal 101207677 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Accessory
- Recommended safety switchgear
- NSR-0605
Ambient conditions
- Ambient temperature
- +0 ... +50 °C
- Degree of protection
- IP65
- Protection class
- III
- Storage and transport temperature, maximum
- +70 °C
- Storage and transport temperature, minimum
- -10 °C
Electrical data
- Electrical power consumption of the receiver
- 4 W
- Electrical power consumption of the transmitter
- 4 W
- Switching voltage OSSD, HIGH signal
- 24 V
Electrical data - Safety digital outputs
- Design of control elements
- p-type
- Output current, (fail-safe output), maximum
- 4 A
General data
- Enclosure material
- Aluminium
- Gross weight
- 1,650 g
- Reaction time, maximum
- 50 ms
- Standards
- EN IEC 61496-2 | EN IEC 61496-1
General data - Features
- Beam coding available
- Yes
- Integral system diagnostics
- Yes
- Integral system diagnostics, status
- Yes
- Number of beams
- 32
- Number of safety contacts
- 2
- Restart interlock (manual reset)
- Yes
- Wave length of the sensor
- 880 nm
Mechanical data
- Detection ability for test bodies at v = 1.6 m/s
- 30 mm
- Height of the protection field
- 908 mm
- Range, protection field, maximum
- 3,500 mm
- Range, protection field, minimum
- 200 mm
Mechanical data - Connection technique
- Length of cable
- 5 m
- Length of the connectable cable, maximum
- 100 m
- Terminal connector, Recipient
- Cable with connector plug M8, 4-pole
- Terminal, Connector, Transmitter
- Cable with connector plug M8, 4-pole
- Termination
- Connector
Mechanical data - Dimensions
- Height of sensor
- 1,140 mm
- Length of sensor
- 20 mm
- Width of sensor
- 12 mm
Note
- Note (General)
- I | In case of failure (interruption of the 0 V supply) the maximum leakage current is 1 mA.
Safety classification
- Category
- 4
- Mission time
- 20 Year(s)
- Performance Level, up to
- e
- PFH value
- 1.26 x 10⁻⁸ /h
- Safety Integrity Level (SIL), suitable for applications in
- 3
- Standards
- EN ISO 13849-1 | EN IEC 61508
Scope of delivery
- Scope of delivery
- Emitter + receiver, mounting angle
