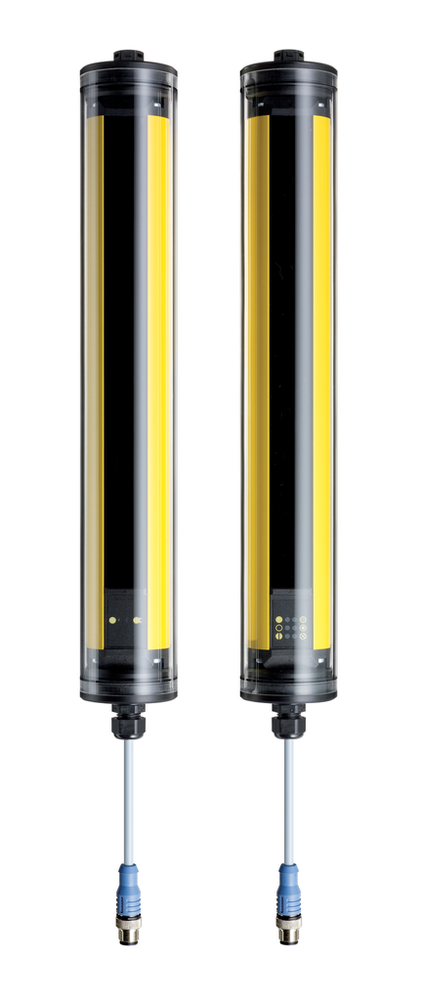

Schmersal 101206637
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SLG 220-E/R0800-03-69-RF
Schmersal 101206637 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Accessory
- Recommended safety switchgear
- SCR 211
Ambient conditions
- Ambient temperature, maximum
- +50 °C
- Ambient temperature, minimum
- -10 °C
- Degree of protection
- IP69K to EN 60529
- Protection rating
- III
- Storage and transport temperature, maximum
- +70 °C
- Storage and transport temperature, minimum
- -20 °C
Approval - Standards
- Certificates
- EAC
Electrical data
- Electrical power consumption of the receiver
- 8 W
- Electrical power consumption of the transmitter
- 4 W
- Length of cable, maximum
- 100 m
- Switching voltage OSSD, HIGH signal
- 24 V
- Voltage type
- DC (direct current)
Electrical data - Fail-safe digital outputs
- Output current, (fail-safe output), maximum
- 0.2 A
- Versions
- p-type
General data
- Enclosure material
- Aluminium
- Gross weight
- 3,970 g
- Reaction time, maximum
- 16 ms
- Standards
- IEC/EN 61496-1/-2
General data - Features
- Hide function
- Yes
- Integral System Diagnostics
- Yes
- Integral System Diagnostics, status
- Yes
- Number of beams
- 3
- Number of fail-safe digital outputs
- 2
- Restart interlock (manual reset)
- Yes
Mechanical data
- Detection ability for test bodies at v = 1.6 m/s
- 800 mm
- Height of the protection field
- 800 mm
- Range, protection field, maximum
- 6,000 mm
- Range, protection field, minimum
- 300 mm
- Wave length of the sensor
- 880 nm
Mechanical data - Connection technique
- Length of cable
- 5 m
- Terminal Connector
- Connector
- Terminal connector, Recipient
- Cable with connector plug M12, 8-pole
- Terminal, Connector, Transmitter
- Cable with connector plug M12, 8-pole
Mechanical data - Dimensions
- Diameter of sensor
- 60 mm
- Height of sensor
- 879 mm
Safety appraisal
- Control category to EN13849
- 2
- Performance level, up to
- d
- PFH-value
- 3.59 x 10⁻⁷ /h
- Safety Integrity Level (SIL), suitable for applications in
- 2
- Safety type in accordance with IEC 61496-1
- 2
- Standards
- EN ISO 13849-1 | IEC 61508
Scope of delivery
- Included in delivery
- Emitter + receiver, mounting angle
