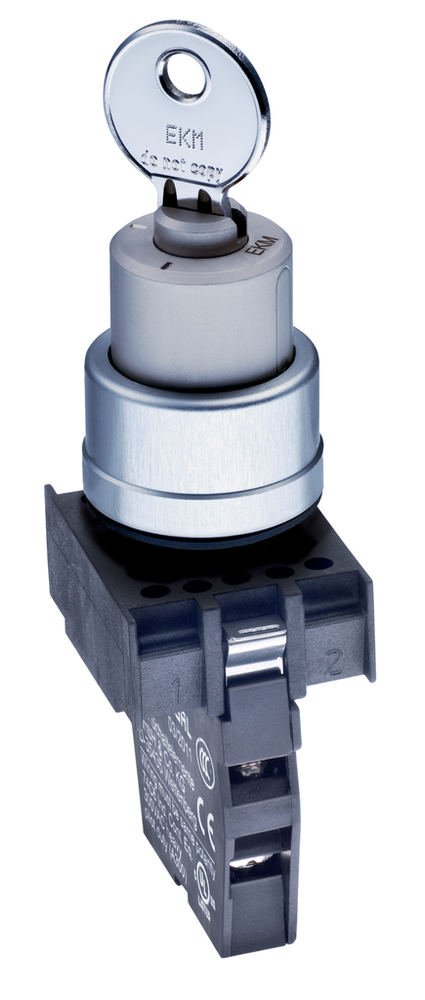

Schmersal 101205799

Ambient conditions

• Ambient temperature
  • -25 ... +75 °C
• Degree of protection
  • IP65
• Degree of protection of clips or terminals
  • IP20
• Degree of protection of the switch rooms
  • IP40
• Resistant to vibration
  • Resistance to vibration: 20 g / 10…200 Hz
• Restistance to shock
  • 110 g / 4 ms

Ambient conditions - Insulation values

• Rated insulation voltage U
  • 400 V

Approvals - Standards

• Certificates
  • TÜV | cULus | CCC

Electrical data

• Bounce duration, maximum
  • 5 ms
• Material of the contacts, electrical
  • Silver
• Suitable for low-voltages
  • ≥ 5 V / ≥ 3.2 mA
• Switching element
  • NC contact, NO contact
• Switching frequency
  • 5 /h
• Switching principle
  • Slow action
• Thermal test current
  • 10 A
• Utilisation category AC-15
  • 230 VAC
  • 8 A
• Utilisation category DC-13
  • 24 VDC
  • 5 A

General data

• Colour of key head
  • Silver
• Colour of the Contact element
  • Black
• Colour of the cylinder lock
  • Silver
• Colour of the front ring
  • Silver
• Enclosure material
  • Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Gross weight
  • 136 g
• Installation conditions (mechanical)
  • arbitrarily
• Material of the cylinder lock
  • Steel
• Material of the front ring
  • Aluminium
• Sealing type
  • Membrane | Lip gaskets | Form seals
• Standards
  • EN IEC 62061 | EN ISO 14119 | EN IEC 60947-5-1 | EN IEC 60947-5-3 | EN IEC 60947-5-5 | EN IEC 60204-1 | EN IEC 60947-1
• Versions
  • Key - Selector switch - Front plate mounting

General data - Features

• Fully insulated
  • Yes
• Latching
  • Yes
• Number of auxiliary contacts
  • 1
• Number of plunger
  • 1
• Number of switch positions
  • 2

Mechanical data

• Key number
  • 102
• Key withdrawal position
  • Position I | 90°
• Latching position
  • right
• Mechanical life, minimum
  • 100,000 Operations
• Mounting
  • mounting flange
• Tightening torque of the screw
  • 0.6 Nm
• Unlocking
  • Rotating unlatcher

Mechanical data - Connection technique

• Cable section, maximum
  • 2.5 mm², rigid | 2.5 mm², flexible
• Cable section, minimum
  • 0.5 mm², rigid | 0.5 mm², flexible
• Note (Cable section)
  • All indications including the conductor ferrules.
• Termination
  • Screw terminals M20 x 1.5
• Tightening torque of Clips
  • 1 Nm

Mechanical data - Dimensions

• Diameter of the front ring
  • 29.5 mm
• diameters for the cylinder lock
  • 22 mm
• Length x Width x Height
  • Height with key (and contact element): 60 mm (119 mm)
• Mounting diameter
  • 22.3 mm
• Spacing
  • 40 x 50 mm
• Thickness of the front panel, maximum
  • 6 mm
• Thickness, of the front panel, minimum
  • 1 mm
