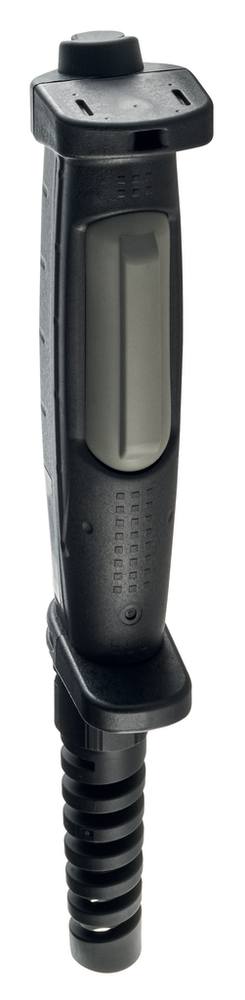

Schmersal 101199480
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
ZSD6/O.LTG
Schmersal 101199480 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Accessory
- Recommended safety switchgear
- SRB, 2-channel with cross-wire detection
Ambient conditions
- Ambient temperature
- -10 ... +60 °C
- Degree of protection
- IP65
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 1.5 kV
Approvals - Standards
- Certificates
- cULus
Electrical data
- Material of the contacts, electrical
- Silver
- Operating current
- 3,000 mA
- Rated operating voltage
- 250 VAC
- Switching element
- NO contact, NC contact
- Switching frequency
- 1,200 /h
- Switching principle
- Slow action
General data
- Enclosure material
- Plastic, thermoplastic, self-extinguishing
- Gross weight
- 180 g
- Standards
- ANSI/RIA R15.06 | CSA C22.2 Nr.14 | EN IEC 60947-5-1 | EN IEC 60204-1 | EN IEC 60947-1 | EN ISO 11161 | EN ISO 12100 | JIS C8201-5-1 | UL508 1
General data - Features
- Number of normally closed (NC)
- 1
- Number of normally open (NO)
- 4
- Push button, additionally
- Yes
Mechanical data
- Note (Mechanical life)
- NO: | Stage 1 - 2 - 1: 1,000,000 operations | Stage 1 - 2 - 3 - 1: 100,000 operations
Mechanical data - Connection technique
- Cable section, maximum
- 1.5 mm²
- Cable section, minimum
- 0.14 mm²
- Termination
- Screw terminals M20 x 1.5
Note
- Note (General)
- Customer-specific versions, with connecting cable, are available upon request. | The monitoring module must offer the possibility of cross-wire monitoring. | Only a double shielded cable is authorised as supply line. | 1) If the device is to be used in a damp room, a suitable connection cable must be used. | 1) This device has been tested for impact and fire resistance according to UL508.
