Schmersal 101195744
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
AZ 061 K 08106

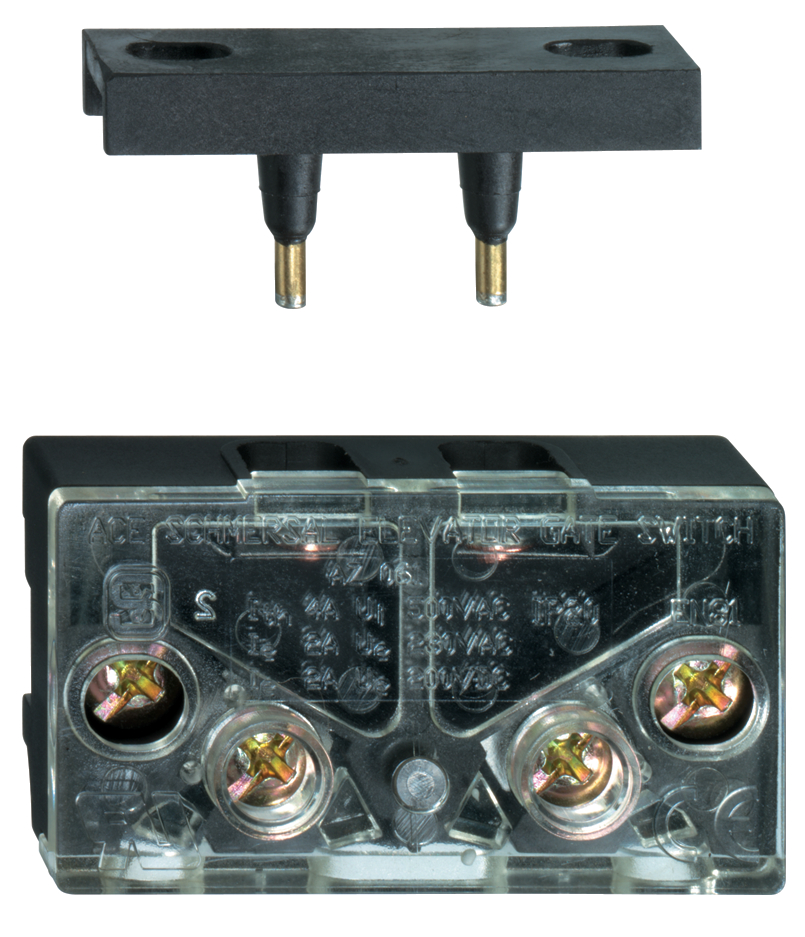

Schmersal 101195744 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -30 ... +70 °C
- Degree of protection
- IP20
- Note (Relative humidity)
- non-condensing
- Relative humidity, maximum
- 95 %
Ambient conditions - Insulation values
- Rated insulation voltage U
- 500 V
Electrical data
- Material of the contacts, electrical
- Silver-plated Cu rivets
- Switching element
- Opener (NC)
- Switching principle
- Self-cleaning pressure contact
- Thermal test current
- 4 A
- Utilisation category AC-15
- 2 A
- 230 VAC
- Utilisation category DC-13
- 200 VDC
- 2 A
General data
- Enclosure material
- Glass-fibre reinforced ultramid, self-extinguishing
- Gross weight
- 24 g
- Material of the housing cover
- Glass-fibre reinforced ultramid, self-extinguishing
- Standards
- ASME-A15.5 | CAN/CSA-B44.1 | EN 81-20 | EN 81-50
General data - Features
- Number of safety contacts
- 1
- Suitable for elevators
- Yes
Mechanical data
- Actuating force
- 1.6 N
- Actuating panels
- 1
- Actuating stroke
- 7 mm
- Mechanical life, minimum
- 10,000,000 Operations
- Mounting
- Round holes
Mechanical data - Connection technique
- Cable entry
- 2 x single conductor version with connecting funnel
- Note (Cable entry)
- Without cable ducts
- Notes
- M4 slotted-head combination screws, similar to DIN 7984, with self-opening clamp plates
- Termination
- Screw terminals M20 x 1.5
- Tightening torque of electrical connection, maximum
- 1.2 Nm
Mechanical data - Dimensions
- Depth
- 16 mm
- Height
- 27 mm
- Width
- 50 mm
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Specifications
- Depth
- 16 mm
- Height
- 27 mm
- Width
- 50 mm
