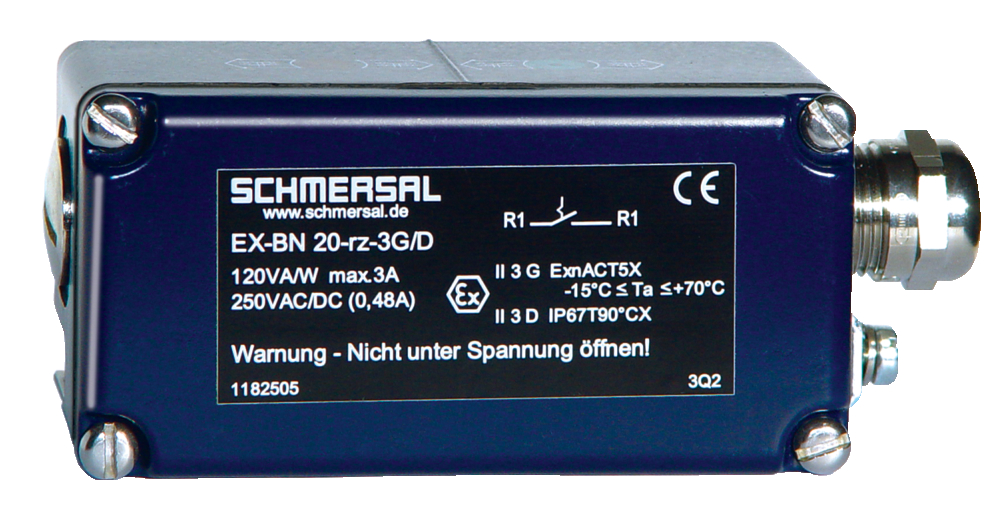

Schmersal 101194601
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
EX-BN 20-20Z-3G/D
Schmersal 101194601 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Accessory
- Recommendation (actuator)
- 2x BP 10 | 2x BP 15/2 | BP 20 | BP 31 | BP 11 | BP 12 | BP 21 | BE 20
Ambient conditions
- Ambient temperature
- -15 ... +70 °C
- Degree of protection
- IP67
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
- Resistant to vibration
- 50 g, on sine wave oscillation
- Restistance to shock
- 30 g / 11 ms
- Storage and transport temperature, maximum
- +70 °C
- Storage and transport temperature, minimum
- -25 °C
Electrical data
- Bounce duration, maximum
- 0.6 ms
- Bounce duration, minimum
- 0.3 ms
- Switching capacity, maximum
- 120 W
- 120 VA
- Switching current, maximum
- 3 A
- Switching element
- Normally open contact (NO)
- Switching voltage, maximum
- 250 VAC
- 250 VDC
Electrical data - Digital Output
- Design of control elements
- Reed contacts
Explosion protection
- Explosion protection category
- 3D | 3G
- Explosion protection designation
- II 3G Ex nC IIC T5 Gc X | II 3D Ex tc IIIC T90°C Dc X
- Explosion protection: regulations
- EN IEC 60079-0 | EN IEC 60079-15 | EN IEC 60079-31
- Explosion protection zones
- 22 | 2
- Manufacturer declaration
- Manufacturer declaration | ATEX Zone 2 and 22
General data
- Active area
- Metal film
- Enclosure material
- Light-alloy diecast, paint finish
- Gross weight
- 326 g
- Housing construction form
- rectangular
- Working principle
- Magnetic drive
General data - Features
- bias magnet
- Yes
- Number of normally open (NO)
- 2
Mechanical data
- Active area
- lateral
- Actuating element
- Magnet
- Actuating panels
- lateral
- Actuating speed, maximum
- 18 m/s
- Impact energy, maximum
- 4 J
- Mechanical life, minimum
- 1,000,000,000 Operations
- Repeat accuracy R
- 0.3 mm
Mechanical data - Connection technique
- Cable cross-section of the cable glands, maximum
- 10 mm
- Cable cross-section of the cable glands, minimum
- 6 mm
- Termination
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Height of sensor
- 52 mm
- Length of sensor
- 47 mm
- Width of sensor
- 104 mm
Mechanical data - Switching distances according EN IEC 60947-5-3
- Note (Switching distance Sn)
- Actuating distance up to 45 mm depending on version and actuating magnet
- Switching distance S
- 12 mm ... 45 mm
Note
- Note (General)
- The opening and closing functions depend on the direction of actuation, the actuating magnets and the polarity of the actuating magnets. | When the switches and actuators come together, the colours must coincide: Red (S) to red (S) and green (N) to green (N).
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately. | Ex-certified screwed cable gland
