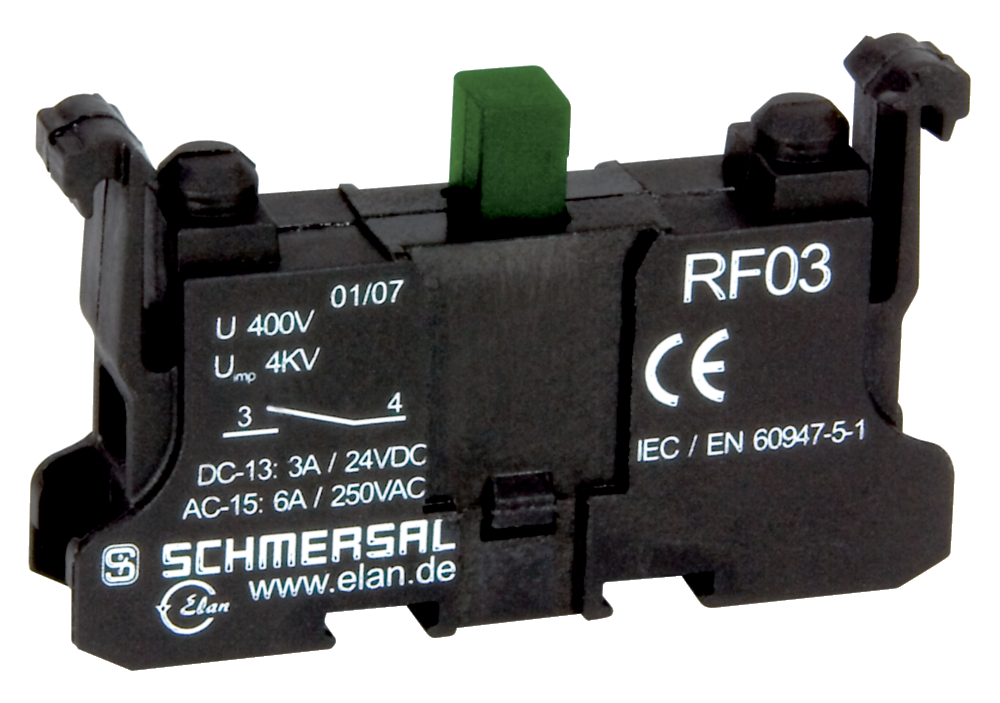

Schmersal 101190087

Ambient conditions

• Ambient temperature
  • -25 ... +75 °C
• Degree of protection of clips or terminals
  • IP20
• Degree of protection of the switch rooms
  • IP40
• Resistance to vibrations
  • 5 g
• Resistant to vibration
  • 20 g / 10 ... 150 Hz
• Restistance to shock
  • 30 g / 18 ms

Ambient conditions - Insulation values

• Degree of pollution
  • 3
• Rated impulse withstand voltage U
  • 4 kV
• Rated insulation voltage U
  • 400 V

Approvals - Standards

• Certificates
  • cURus

Electrical data

• Material of the contacts, electrical
  • Silver
• Suitable for low-voltages
  • ≥ 5 V / ≥ 1 mA
• Switching element
  • Normally open contact (NO)
• Switching frequency
  • 1,200 /h
• Switching principle
  • Slow action
• Thermal test current
  • 10 A
• Utilisation category AC-15
  • 6 A
  • 250 VAC
• Utilisation category DC-13
  • 24 VDC
  • 3 A

General data

• Climatic stress
  • IEC 60068-2-30
• Contact labelling
  • 3-4
• Enclosure material
  • Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Gross weight
  • 20 g
• Standards
  • EN IEC 60947-5-1 | EN IEC 60947-1

General data - Features

• Number of normally open (NO)
  • 1

Mechanical data

• Contact opening
  • 3 mm
• Installation instructions
  • pluggable
• Mechanical life, minimum
  • 10,000,000 Operations
• Mounting flange position
  • 1; 2; 3
• Positive break travel
  • 2 mm

Mechanical data - Connection technique

• Cable section, maximum
  • 2.5 mm², rigid | 1.5 mm², flexible
• Cable section, minimum
  • 0.5 mm², rigid | 0.5 mm², flexible
• Note (Cable section)
  • All indications including the conductor ferrules.
• Termination
  • Screw terminals M20 x 1.5
• Tightening torque of Clips
  • 1 Nm

Mechanical data - Dimensions

• Height
  • 25.5 mm
• Width
  • 9 mm

Specifications

• Height
  • 25.5 mm
• Length
  • 44 mm
• Width
  • 9 mm
