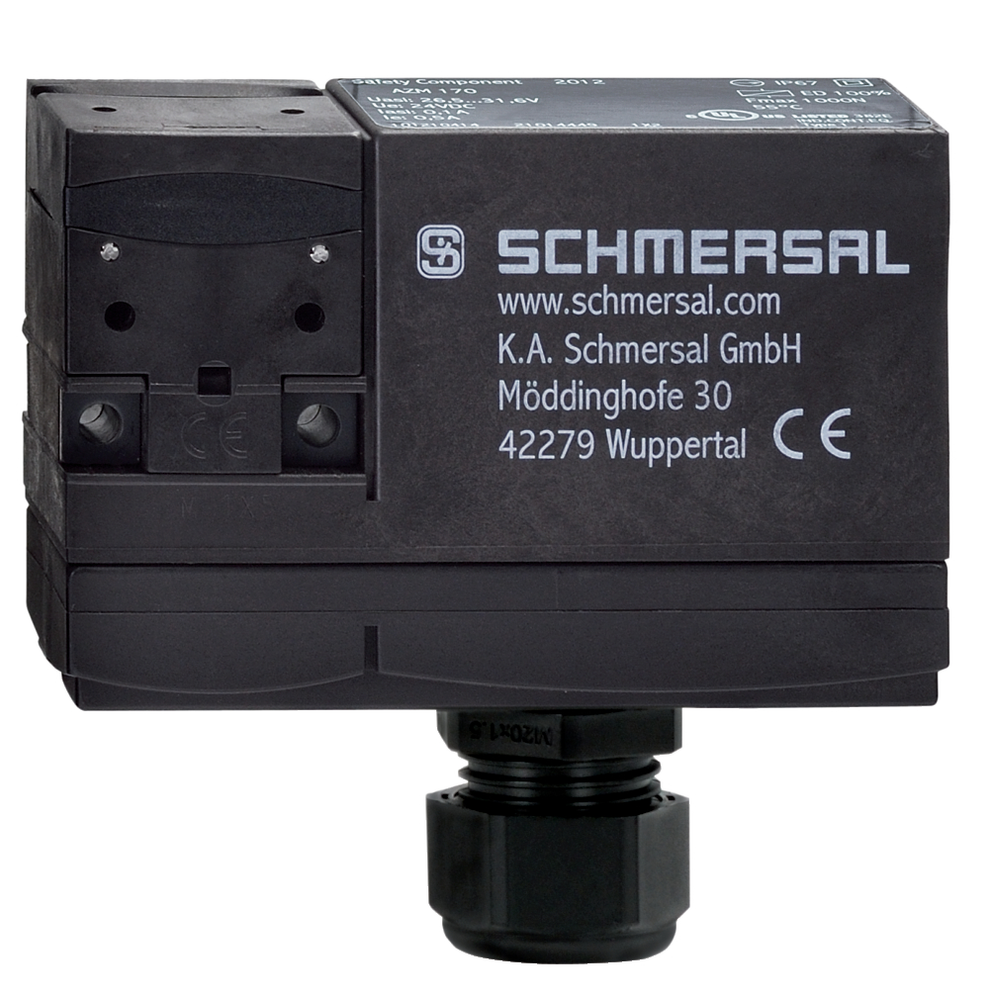

Schmersal 101188908
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
EX-AZM 170-11ZRKA 24VAC/DC-3G/D
Schmersal 101188908 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -15 ... +45 °C
- Degree of protection
- IP67
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 4 kV
- Rated insulation voltage U
- 250 VAC
Electrical data
- Electrical power consumption, maximum
- 10 W
- Material of the contacts, electrical
- Silver
- Rated control voltage
- 24 VAC
- 24 VDC
- Switching element
- NO contact, NC contact
- Switching principle
- Slow action
- Thermal test current
- 2 A
- Utilisation category AC-15
- 230 VAC
- 2 A
- Utilisation category DC-13
- 24 VDC
- 2 A
Explosion protection
- Explosion protection category
- 3D | 3G
- Explosion protection designation
- II 3G Ex nC IIB T5 Gc X | II 3D Ex tc IIIC T80°C Dc X
- Explosion protection: regulations
- EN IEC 60079-0 | EN IEC 60079-15 | EN IEC 60079-31
- Explosion protection zones
- 22 | 2
- Manufacturer declaration
- Manufacturer declaration | ATEX Zone 2 and 22
General data
- Enclosure material
- Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Gross weight
- 290 g
- Standards
- EN IEC 60947-5-1
General data - Features
- Manual release
- Yes
- Number of auxiliary contacts
- 1
- Number of safety contacts
- 1
- Power to lock
- Yes
Mechanical data
- Actuating speed, maximum
- 1 m/s
- Holding force
- 1,000 N
- Impact energy, maximum
- 1 J
- Latching force
- 30 N
- Mechanical life, minimum
- 1,000,000 Operations
- Positive break force, minimum
- 8.5 N
- Positive break travel
- 11 mm
Mechanical data - Connection technique
- Cable cross-section of the cable glands, maximum
- 12 mm
- Cable cross-section of the cable glands, minimum
- 6.5 mm
- Cable section, maximum
- 1 x 1 mm², flexible
- Cable section, minimum
- 2 x 1.0 mm², flexible
- Termination
- IDC method of termination
Mechanical data - Dimensions
- Height of sensor
- 84 mm
- Length of sensor
- 30 mm
- Width of sensor
- 90 mm
Note
- Note (General)
- This type termination (IDC) method enables simple connetion of flexible conductors without the need for the use of conductor ferrules
- Note (Manual release)
- bottom | For manual release using M5 triangular key, available as accessory
Safety classification
- Mission time
- 20 Year(s)
- Standards
- EN ISO 13849-1
Safety classification - Safety outputs
- B
- 2,000,000 Operations
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately. | Including Ex-certified screwed cable gland and screw plug
