Description
SEPLC05.2.3.0.22/95

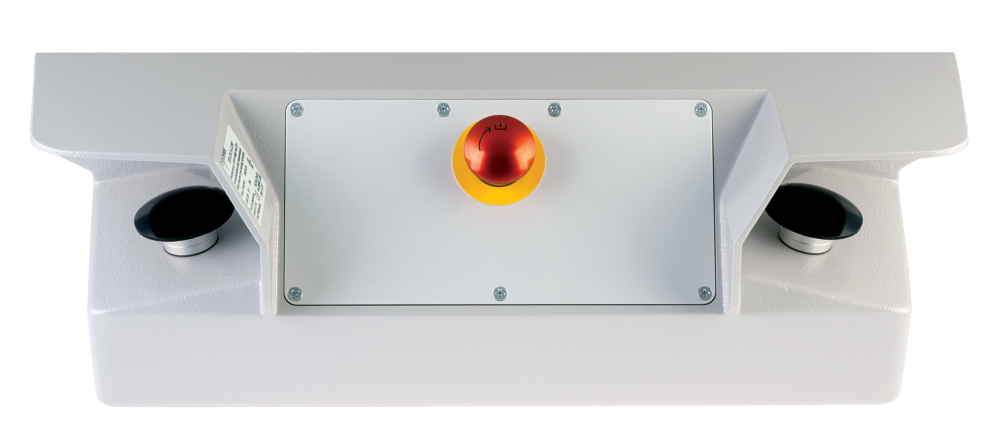

Schmersal 101188800 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Accessory
- Recommendation (product combination)
- SRB201ZH | SRB200ZHX1 | SRB 201ZHX3
Ambient conditions
- Degree of protection
- IP54
Ambient conditions - Insulation values
- Rated insulation voltage U
- 440 V
Electrical data
- Thermal test current
- 10 A
- Utilisation category AC-15
- 8 A
- 250 VAC
- Utilisation category DC-13
- 5 A
- 24 VDC
General data
- Colour of the housing
- RAL 7004
- Enclosure coating material
- powder-coated
- Enclosure material
- Aluminium
- Gross weight
- 5,300 g
- Material of the sealing plate
- Aluminium
- Standards
- EN ISO 13850 | EN ISO 13851 | EN IEC 60947-5-1 | EN IEC 60947-5-5 | EN IEC 60947-1
General data - Features
- Construction kit possible
- Yes
- Number of Emergency Stop button
- 1
- Number of normally closed (NC)
- 2
- Number of normally open (NO)
- 2
- Number of operating push buttons (positioning parts)
- 2
- Suitable for EMERGENCY-OFF
- Yes
Mechanical data
- Mechanical life, minimum
- 10,000,000 Operations
Mechanical data - Connection technique
- Cable section, maximum
- 1.5 mm²
- Termination
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Depth
- 175 mm
- Height
- 160 mm
- Length x Width x Height
- Operating push buttons (positioning parts): 42 mm | Emergency stop pushbutton: 38.5 mm
- Width
- 510 mm
Note
- Note (General)
- 1 NO/1 NC contact per unit, 1 NO/1 NC contact for Emergency-Stop | Optional: actuators with low actuating force
- Note (Number of Emergency Stop button)
- Consisting of: EDP42SW; EF10.1; EF03.1 | Consisting of: EDRR40RT; EFR; EF303.1
Specifications
- Depth
- 175 mm
- Height
- 160 mm
- Width
- 510 mm
