Description
EX-TS 335-20Z-3G/D

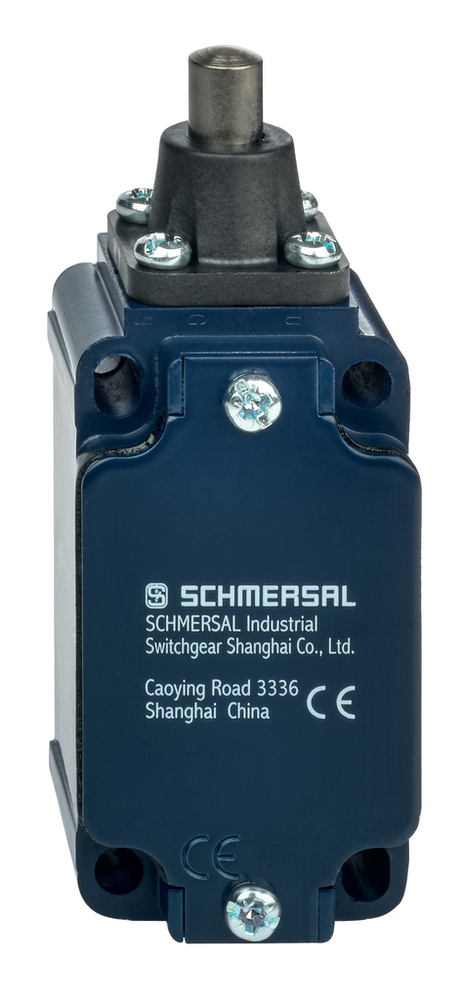

Schmersal 101188471 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -20 ... +60 °C
- Degree of protection
- IP67
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 6 kV
- Rated insulation voltage U
- 500 V
Approvals - Standards
- Certificates
- cULus
Electrical data
- Bounce duration, maximum
- 2 ms
- Material of the contacts, electrical
- Silver
- Switching element
- Normally open contact (NO)
- Switching frequency
- 5,000 /h
- Switching principle
- Slow action
- Thermal test current
- 10 A
- Utilisation category AC-15
- 230 VAC
- 4 A
- Utilisation category DC-13
- 4 A
- 24 VDC
Explosion protection
- Explosion protection category
- 3D | 3G
- Explosion protection designation
- II 3G Ex nC IIC T5 Gc X | II 3D Ex tc IIIC T90°C Dc X
- Explosion protection: regulations
- EN IEC 60079-0 | EN IEC 60079-15 | EN IEC 60079-31
- Explosion protection zones
- 22 | 2
- Manufacturer declaration
- Manufacturer declaration | Additional simple electrical apparatus (Zone 0 and 20)
General data
- Actuator type to EN 50041
- B
- Enclosure coating material
- painted
- Enclosure material
- Aluminium
- Gross weight
- 231 g
- Housing construction form
- Norm construction design
General data - Features
- Number of auxiliary contacts
- 2
Mechanical data
- Actuating element
- Plunger
- Actuating force, minimum
- 17 N
- Actuating speed, maximum
- 0.5 m/s
- Impact energy, maximum
- 4 J
- Mechanical life, minimum
- 30,000,000 Operations
- Note (Switchover time)
- Switchover time in accordance with actuating speed
Mechanical data - Connection technique
- Cable cross-section of the cable glands, maximum
- 12 mm
- Cable cross-section of the cable glands, minimum
- 7 mm
- Cable section, maximum
- 2.5 mm²
- Cable section, minimum
- 0.75 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
- Termination
- Screw terminals M20 x 1.5
- Wire cross-section
- 13 AWG
Mechanical data - Dimensions
- Height of sensor
- 103.5 mm
- Length of sensor
- 38 mm
- Width of sensor
- 40.5 mm
Note
- Note (General)
- Switch with 2 NO contacts are not for security tasks
Safety classification
- Mission time
- 20 Year(s)
- Standards
- EN ISO 13849-1
