Schmersal 101188436
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

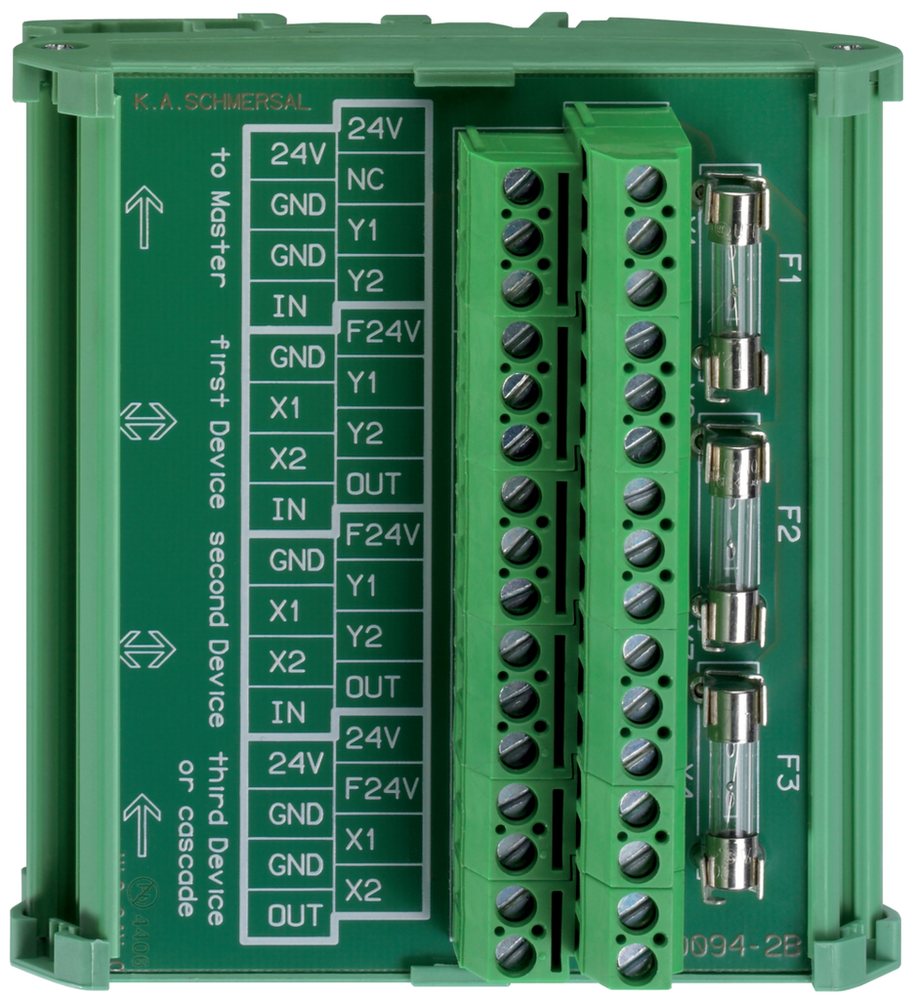

SD-2V-S-SK SD JUNCTION BOX 2-WAY
Schmersal 101188436 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -25 ... +70 °C
- Degree of protection
- IP00
- Note (Relative humidity)
- non-condensing
- Protection class
- II
- Relative humidity, maximum
- 95 %
- Relative humidity, minimum
- 30 %
- Storage and transport temperature, maximum
- +85 °C
- Storage and transport temperature, minimum
- -25 °C
Ambient conditions - Insulation values
- Degree of pollution
- 2
- Overvoltage category
- III
- Rated impulse withstand voltage U
- 0.8 kV
- Rated insulation voltage U
- 32 VDC
Electrical data
- Operating current
- 16,000 mA
- Operating voltage
- 24 VDC -15 % / +10 % (stabilised PELV power supply)
- Rated operating voltage
- 24 VDC
General data
- Enclosure material
- Plastic, thermoplastic, self-extinguishing
- Gross weight
- 200 g
- Terminal (mechanical)
- Screw connection
Mechanical data - Connection technique
- Cable section, maximum
- 2.5 mm²
- Cable section, minimum
- 0.25 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
Mechanical data - Dimensions
- Depth
- 68.5 mm
- Height
- 89.6 mm
- Width
- 92 mm
Note
- Note (General)
- To each SD junction box, 2 (optionally 3) components can be connected.
Specifications
- Depth
- 68.5 mm
- Height
- 89.6 mm
- Width
- 92 mm
