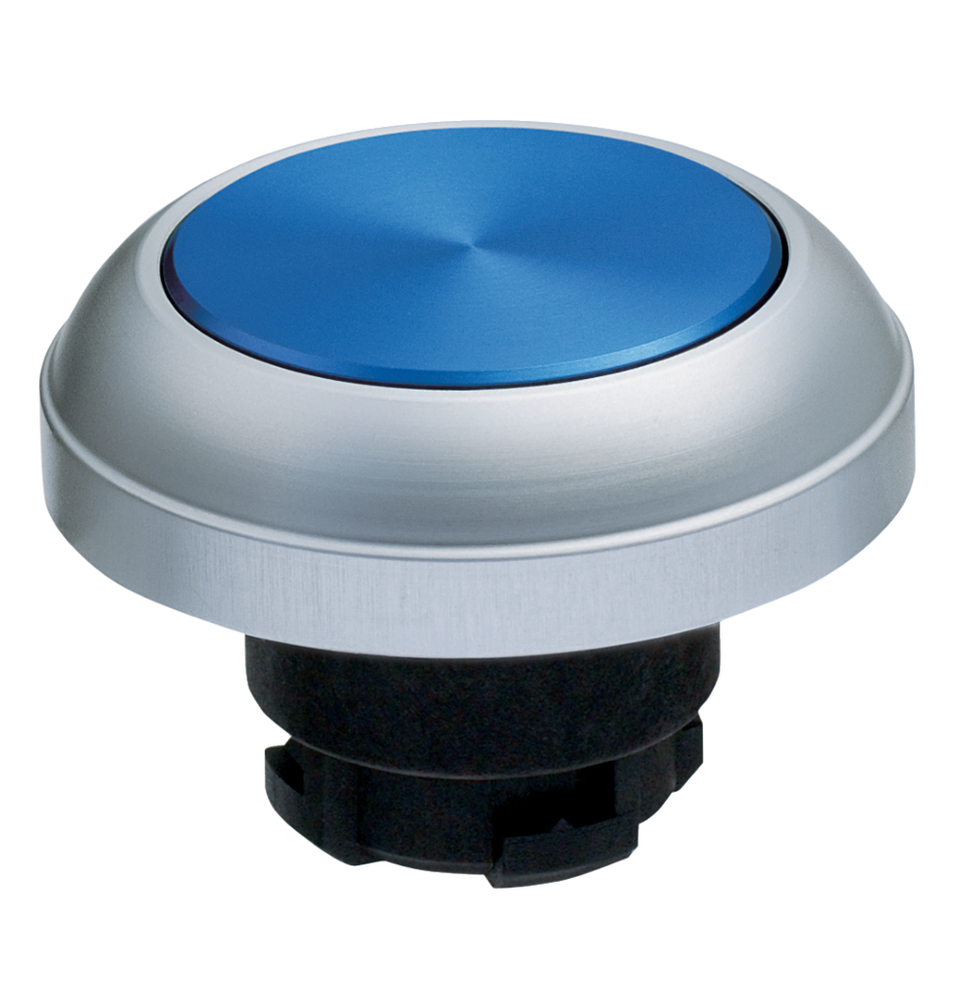

Schmersal 101188245
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
RDTBL
Schmersal 101188245 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -25 ... +75 °C
- Degree of protection
- IP65
- Restistance to shock
- 50 g
Electrical data
- Switching frequency
- 1,200 /h
General data
- Colour of the front ring
- Silver
- Colour of the operating element
- Blue
- Design
- Round
- Gross weight
- 40 g
- Installation conditions (mechanical)
- arbitrarily
- Material of the front ring
- Aluminium
- Material of the operators
- Aluminium
- Sealing type
- Membrane | Lip gaskets | Form seals
- Standards
- EN IEC 60947-5-1 | EN IEC 60947-1
- Versions
- Pushbutton
General data - Features
- Fully insulated
- Yes
- Mounting flange
- Yes
- Probing possible
- Yes
Mechanical data
- Actuating force, approx.
- 1.5 N
- Actuating stroke
- 4 mm
- Mechanical life, minimum
- 1,000,000 Operations
- Mounting
- Mounting flange EFM
- Tightening torque of the screw
- 0.6 Nm
- Unlocking
- without
Mechanical data - Dimensions
- Diameter of the front ring
- 39.5 mm
- Diameter of touch surface
- 28 mm
- Diameter total
- 39.5 mm
- Height
- 11 mm
- Height of touch surface
- 0.5 mm
- Mounting diameter
- 22.3 mm
- Spacing
- 40 x 50 mm
- Thickness of the front panel, maximum
- 6 mm
- Thickness, of the front panel, minimum
- 1 mm
Specifications
- Height
- 11 mm
