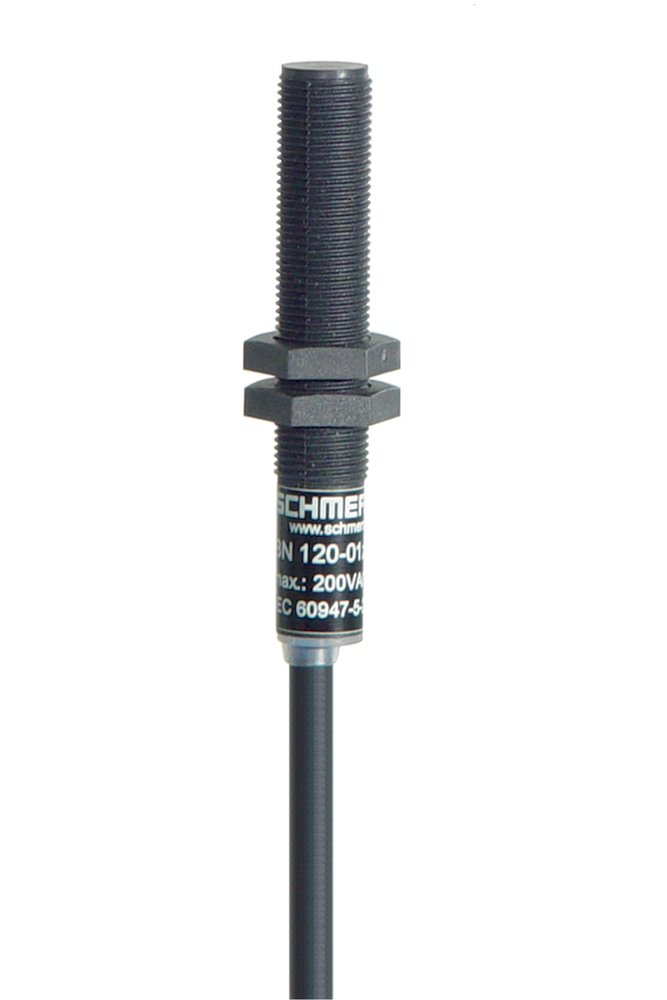

Schmersal 101186839

Accessory

• Recommendation (actuator)
  • BP 10 | 2x BP 10 | BP 15 | 2x BP 15 | 2x BP 15/2 | BP 34 | BP 20 | BP 31 | BP 11 | BP 12 | BP 21
• Recommendation (actuator, lift switchgear)
  • BP 10 | 2 x BP 15/2 | 2 x BP 15 | 2 x BP 10 | BP 15 | BP 34

Ambient conditions

• Ambient temperature
  • -25 ... +70 °C
• Degree of protection
  • IP67
• Resistance to vibrations
  • 10 … 55 Hz, amplitude 1 mm
• Restistance to shock
  • 30 g / 11 ms

Electrical data

• Bounce duration, maximum
  • 0.2 ms
• Switching capacity, maximum
  • 30 W
  • 30 VA
• Switching current, maximum
  • 1 A
• Switching element
  • Normally open contact (NO)
• Switching frequency, maximum
  • 300 Hz
• Switching voltage, maximum
  • 200 VAC

Electrical data - Digital Output

• Design of control elements
  • Reed contacts

General data

• Enclosure material
  • Glass-fibre, reinforced thermoplastic
• Gross weight
  • 30 g
• Housing construction form
  • Cylinder, thread
• Working principle
  • Magnetic drive

General data - Features

• bias magnet
  • Yes
• Number of normally open (NO)
  • 1
• Suitable for elevators
  • Yes

Mechanical data

• Actuating element
  • Magnet
• Actuating panels
  • lateral
• Actuating speed, maximum
  • 18 m/s
• Mechanical life, minimum
  • 10,000,000 Operations
• Mounting
  • central with threated flange M12 x 1
• Repeat accuracy R
  • 0.3 mm
• Tightening torque of nuts, maximum
  • 0.9 Nm

Mechanical data - Connection technique

• Length of cable
  • 1 m
• Material of the Cable mantle
  • LiYY
• Termination
  • Cable
• Wire cross-section
  • 0.25 mm
  • 23 AWG

Mechanical data - Dimensions

• Diameter of sensor
  • 10.7 mm
• Length of sensor
  • 71 mm

Mechanical data - Switching distances according EN IEC 60947-5-3

• Note (Switching distance Sn)
  • Actuating distance up to 50 mm depending on actuating magnet and version. The specified switching distances are applicable for the actuation of individually mounted components without ferromagnetic influence. A change of the distance, either positive or negative, is possible due to ferromagnetic influences. The mutual interference between multiple actuating magnets must be observed.
• Switching distance S
  • 5 mm … 50 mm | BP 10 = 5 mm | 2 x BP 10 = 17 mm | BP 15 = 6 mm | 2 x BP 15 = 17 mm | 2 x BP 15/2 = 17 mm | BP 34 = 15 ... 20 mm | BP 20 = 20 mm | BP 31 = 20 mm | BP 11 = 20 mm | BP 12 = 10 ... 30 mm | BP 21 = 25 ... 50 mm

Note

• Note (General)
  • The opening and closing functions depend on the direction of actuation, the actuating magnets and the polarity of the actuating magnets. | When the switches and actuators come together, the colours must coincide: Red (S) to red (S) and green (N) to green (N). This does not apply to the bistable contact. | The switch is to be mounted on iron with a non-magnetic layer of at least 20 mm.

Scope of delivery

• Scope of delivery
  • Actuator must be ordered separately.
