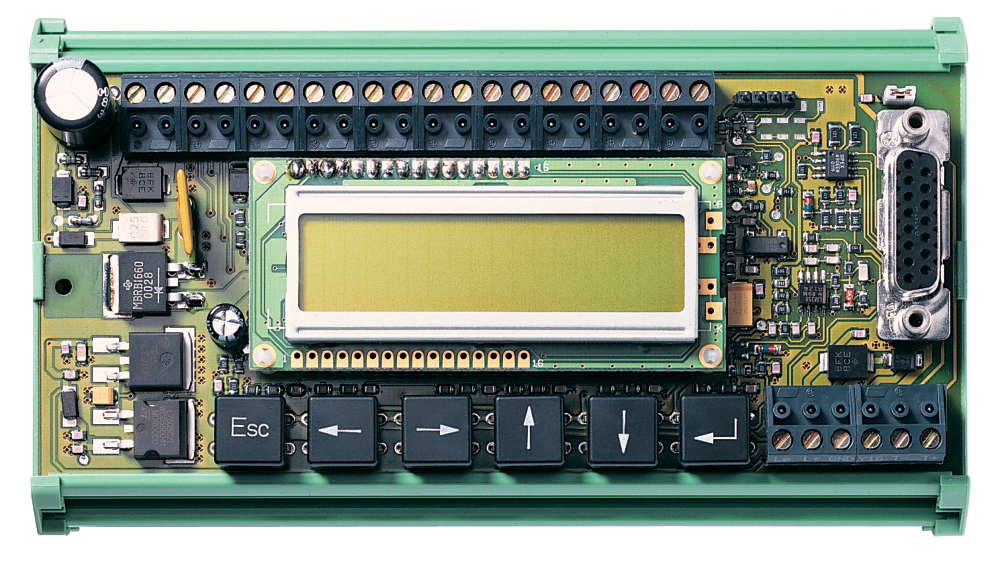

Schmersal 101185242
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
USP-PI-2541 PARALLEL-INTERFACE
Schmersal 101185242 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -5 ... +60 °C
- Degree of protection
- IP00
- Resistance to vibrations
- 10 … 55 Hz / 0.0375 mm
- Restistance to shock
- 15 g / 11 ms
- Storage and transport temperature, maximum
- +70 °C
- Storage and transport temperature, minimum
- -25 °C
Ambient conditions - Insulation values
- Degree of pollution
- 2
- Overvoltage category
- III
Electrical data
- Length of cable, maximum
- 30 m
- Operating current
- 150 mA
- Operating voltage
- 24 VDC -10 % / +15 %
- Rated operating voltage
- 24 VDC
Electrical data - Digital inputs
- Input signal, HIGH Signal "1"
- 10 … 30 VDC
- Input signal, LOW Signal "0"
- 0 … 2 VDC
Electrical data - Digital Output
- Designation, Digital outputs
- Y1 ... Y6
- Design of control elements
- p-type
- Output current, maximum
- 100 mA
Electrical data - Electromagnetic compatibility (EMC)
- EMC rating
- IEC 61000-6-2 | EN 12016
- Interfering radiation
- EN 12015 | EN 50081-1
General data
- Enclosure material
- PVC
- Gross weight
- 405 g
- Note
- With direction detection for lifts without machine rooms
- Note (operation of software, language)
- English | Deutsch | French
Mechanical data
- Mounting
- Snaps onto standard DIN rails according to DIN EN 50022 and EN 50035
Mechanical data - Connection technique
- Cable section, maximum
- 1.5 mm²
- Cable section, minimum
- 0.5 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
- Termination
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Height
- 89.6 mm
- Width
- 160 mm
Specifications
- Height
- 89.6 mm
- Width
- 160 mm
