NHSNH63

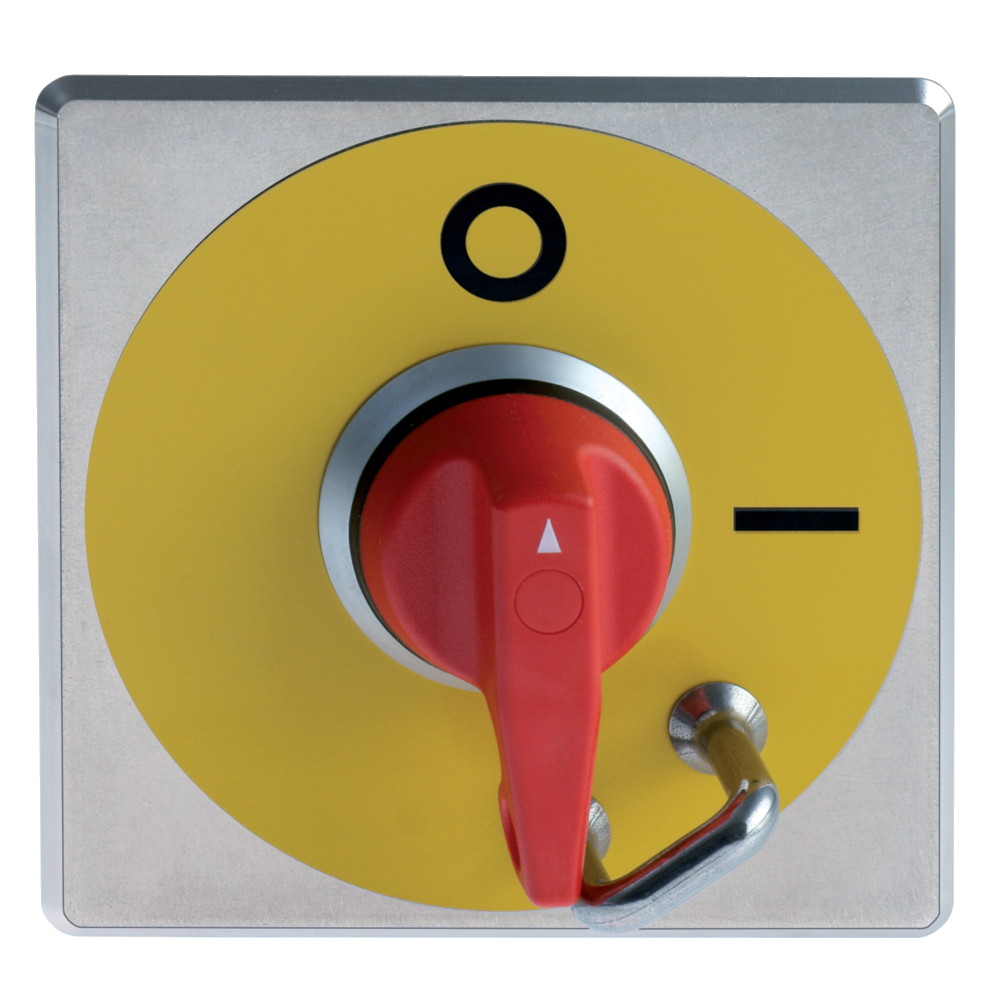

Schmersal 101184919 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- +0 ... +80 °C
- Degree of protection
- IP67 | IP69K
- Resistance to vibrations
- 10 - 150 Hz (0.5 mm / 5 g)
- Restistance to shock
- 50 g
Approvals - Standards
- Certificates
- BG | IPA
Electrical data
- Number of main contacts
- 3
- Rated operating voltage
- 690 VAC
- Switching capacity, AC-23
- 22,000 W
- Switching capacity, AC-3
- 22,000 W
- Thermal test current
- 63 A
General data
- Colour of the bellows
- Black
- Colour of the bracket
- Silver
- Colour of the front ring
- Silver
- Colour of the handle
- Red
- Colour of the identification plate
- Yellow
- Colour of the mounting plate
- Silver
- Colour of the operating element
- Red
- Design
- Strengthening plate
- Gross weight
- 700 g
- Installation conditions (mechanical)
- arbitrarily
- Material of the bracket
- Stainless steel (V4A)
- Material of the front ring
- ABS, chrome-plated
- Material of the identification label
- Stainless steel (V4A)
- Material of the mounting plate
- Stainless steel (V4A)
- Material of the operators
- ABS
- Sealing type
- Membrane | Lip gaskets
- Standards
- EN IEC 60947-5-1 | EN IEC 60947-1
- Versions
- Main switch 63A
General data - Features
- Fully insulated
- Yes
- Latching
- Yes
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Mounting
- mounting flange
- Mounting position main contacts
- 0°
- switching angle
- 90 °
- Tightening torque of the screw
- 0.6 Nm
- Unlocking
- Rotating unlatcher
Mechanical data - Connection technique
- Cable section, maximum
- 16 mm², rigid | 10 mm², flexible
- Cable section, minimum
- 4 mm², rigid | 2.5 mm², flexible
- Note (Cable section)
- All indications including the conductor ferrules.
- Termination
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Diameter of the front ring
- 44.5 mm
- Diameter of the knob
- 39 mm
- Height
- 29 mm
- Length of the handle
- 52 mm
- Length x Width x Height
- Grid dimensions: 110 mm x 110 mm | Dimensions of the mounting plate: 110 mm x 110 mm
- Mounting depth
- 85 mm
- Mounting diameter
- 22.3 mm
- Thickness of the front panel, maximum
- 6 mm
- Thickness, of the front panel, minimum
- 1.5 mm
- Width
- 48 mm
Specifications
- Height
- 29 mm
- Length
- 48 mm
- Width
- 48 mm
