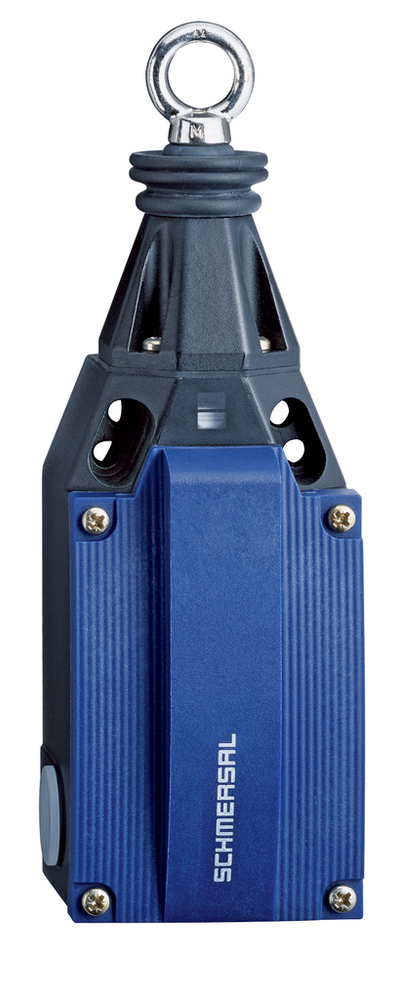

Schmersal 101184483
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TQ 900-04
Schmersal 101184483 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -25 ... +70 °C
- Degree of protection
- IP65 | IP67
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 6 kV
- Rated insulation voltage U
- 500 V
Approvals - Standards
- Certificates
- TÜV | CCC
Electrical data
- Material of the contacts, electrical
- Silver
- Switching element
- Opener (NC)
- Switching principle
- Slow action
- Thermal test current
- 6 A
- Utilisation category AC-15
- 4 A
- 230 VAC
- Utilisation category DC-13
- 24 VDC
- 1 A
General data
- Enclosure coating material
- painted
- Enclosure material
- Metal, zinc die-cast
- Gross weight
- 320 g
- Length of the wire, maximum
- 50 m
- Length of the wire, minimum
- 5 m
- Material of the housing cover
- Glass-fibre, thermoplastic
- Standards
- EN IEC 60947-5-1
General data - Features
- Indicator lamp
- Yes
- Number of normally closed (NC)
- 4
Mechanical data
- Actuating force, maximum
- 200 N
- Actuating travel
- 400 mm
- Mechanical life, minimum
- 1,000,000 Operations
Mechanical data - Connection technique
- Cable section, maximum
- 1 x 2.5 mm²
- Cable section, minimum
- 0.75 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
- Termination
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Height of the Sensor, maximum
- 236.3 mm
- Height of the Sensor, minimum
- 220.3 mm
- Length of sensor
- 69.7 mm
- Width of sensor
- 71.5 mm
Note
- Note (General)
- For lengths of over 10 m, intermediate wire supports must be installed every 3 to 5 m. | Recommended cable lengths for pull-wire Emergency-Stop switches in relation to the range of ambient temperature. | As the thimbles are subject to deformation in case of wire pull, the wire should be pulled several times after fitting. After that, the wire must be re-tensioned using the eyebolt or the tensioner. | The screwed G24-M20 indicator lamp must be ordered separately, see accessories.
Safety classification
- Mission time
- 20 Year(s)
- Standards
- EN ISO 13849-1
Safety classification - Safety outputs
- B
- 100,000 Operations
