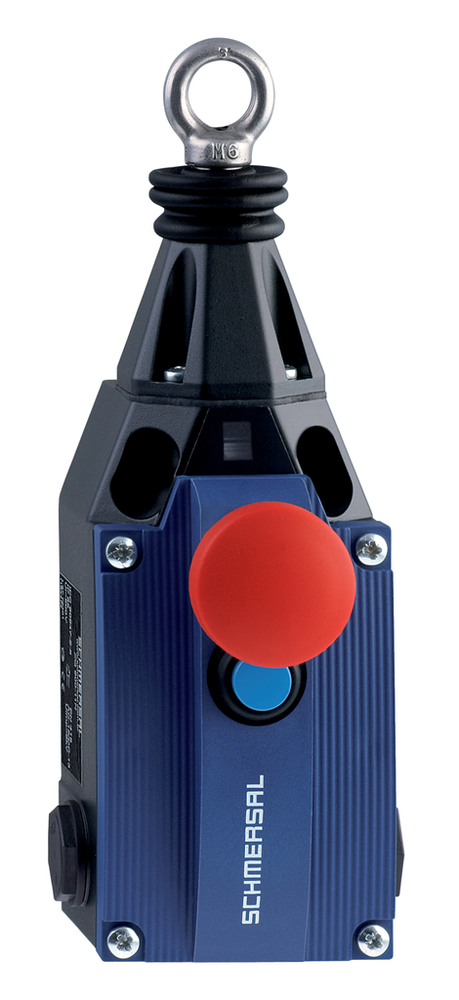

Schmersal 101184477
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
ZQ 900-04N
Schmersal 101184477 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature, maximum
- +70 °C
- Ambient temperature, minimum
- -25 °C
- Degree of protection
- IP65 to EN 60529
- Relative humidity, maximum
- 95 %
Ambient conditions - Insulation value
- Rated impulse withstand voltage U
- 6 kV
- Rated insulation voltage U
- 500 V
Approval - Standards
- Certificates
- TÜV | EAC
Electrical data
- Switching element
- Opener (NC)
- Switching principle
- Snap switch element
- Thermal test current
- 6 A
- Utilisation category AC-15
- 230 VAC
- 4 A
- Utilisation category DC-13
- 1 A
- 24 VDC
General data
- Enclosure coating material
- painted
- Enclosure material
- Zinc die-cast
- Gross weight
- 1,275 g
- Length of the wire, maximum
- 75 m
- Material of the contacts, electrical
- Silver
- Material of the cover
- Glass-fibre, thermoplastic
- Standards
- IEC/EN 60947-5-1 | EN ISO 13850 | IEC/EN 60947-5-5
General data - Features
- Emergency-Stop button
- Yes
- Indicator lamp
- No
- Number of safety contacts
- 4
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
Mechanical data - Connection technique
- Cable section, maximum
- 2.5 mm²
- Cable section, minimum
- 0.75 mm²
- Note (Cable section)
- All indications about the cable section are including the conductor ferrules.
- Terminal Connector
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Height of the Sensor, maximum
- 236.3 mm
- Height of the Sensor, minimum
- 220.3 mm
- Length of sensor
- 97.2 mm
- Width of sensor
- 71.5 mm
Safety appraisal
- Mission Time
- 20 Year(s)
- Standards
- EN ISO 13849-1
Safety appraisal - Safety outputs
- B10d Normally-closed contact (NC)
- 100,000 Operations
