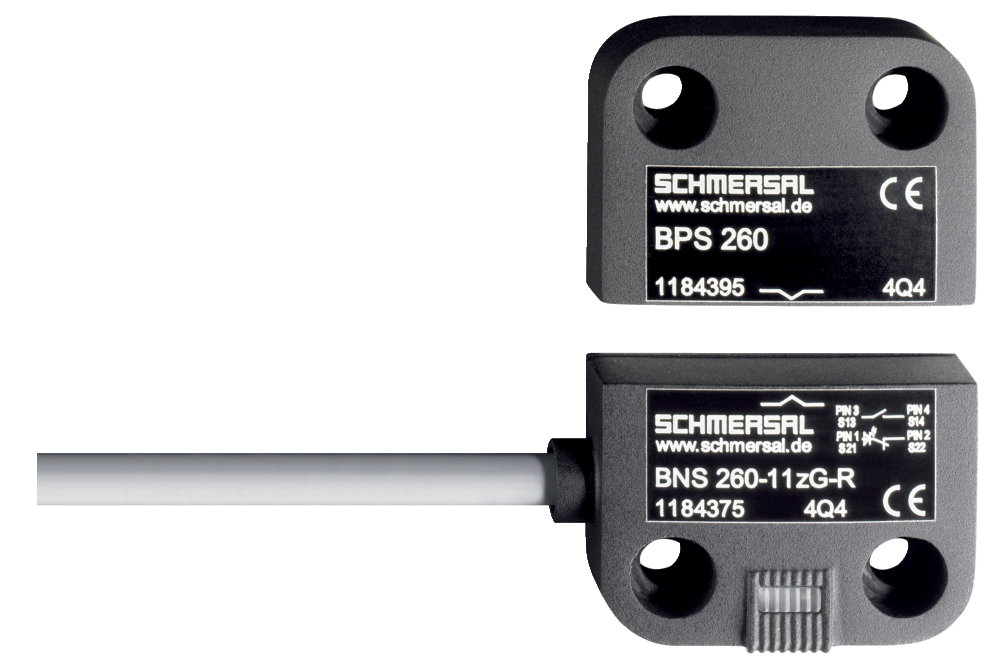

Schmersal 101184386

Accessory

• Recommendation (actuator)
  • BPS 260
• Recommended safety switchgear
  • SRB-E-301ST | SRB-E-201LC

Ambient conditions

• Ambient temperature
  • -25 ... +70 °C
• Degree of protection
  • IP67
• Resistance to vibrations
  • 10 … 55 Hz, amplitude 1 mm
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +70 °C
• Storage and transport temperature, minimum
  • -25 °C

Ambient conditions - Insulation values

• Rated impulse withstand voltage U
  • 0.8 kV
• Rated insulation voltage U
  • 50 VAC

Approvals - Standards

• Certificates
  • TÜV | BG | cULus

Electrical data

• Required rated short-circuit current
  • 100 A
• Switching capacity, maximum
  • 10 VA
• Switching current, maximum
  • 0.4 A
• Switching frequency, maximum
  • 5 Hz
• Switching voltage, maximum
  • 75 VDC

General data

• Coding level according to EN ISO 14119
  • Low
• Enclosure material
  • Glass-fibre, reinforced thermoplastic
• Gross weight
  • 60 g
• Installation conditions (mechanical)
  • quasi-flush
• Standards
  • BG-GS-ET-14 | EN IEC 60947-5-3
• Working principle
  • Magnetic drive

General data - Features

• Number of cable wires
  • 6
• Number of normally closed (NC)
  • 3
• Number of safety contacts
  • 2

Mechanical data

• Actuating element
  • Magnet
• Direction of motion
  • Head-on to the active surface
• Door hinge
  • Left

Mechanical data - Connection technique

• Length of cable
  • 1 m
• Material of the Cable mantle
  • PVC
• Termination
  • Cable
• Wire cross-section
  • 0.25 mm
  • 23 AWG

Mechanical data - Dimensions

• Height of sensor
  • 36 mm
• Length of sensor
  • 13 mm
• Width of sensor
  • 26 mm

Mechanical data - Switching distances according EN IEC 60947-5-3

• Assured switching distance "OFF" S
  • 15 mm
• Assured switching distance "ON" S
  • 5 mm
• Note (Switching distance Sn)
  • Axial misalignment, a horizontal and vertical misalignment of the safety sensor and the actuator are tolerated. The possible misalignment depends on the distance of the active surfaces of the sensor and the actuator. The sensor remains active within the tolerance range.

Note

• Note (General)
  • Contact symbols shown for the closed condition of the guard device. | The contact configuration for versions with or without LED is identical.

Safety classification

• Mission time
  • 20 Year(s)
• Standards
  • EN ISO 13849-1

Safety classification - Safety outputs

• B
  • 25,000,000 Operations

Scope of delivery

• Scope of delivery
  • Actuator must be ordered separately.

Wiring example

• Note (Wiring diagram)
  • The contacts S11-S12 and S21-S22 must be integrated in the safety circuit.
