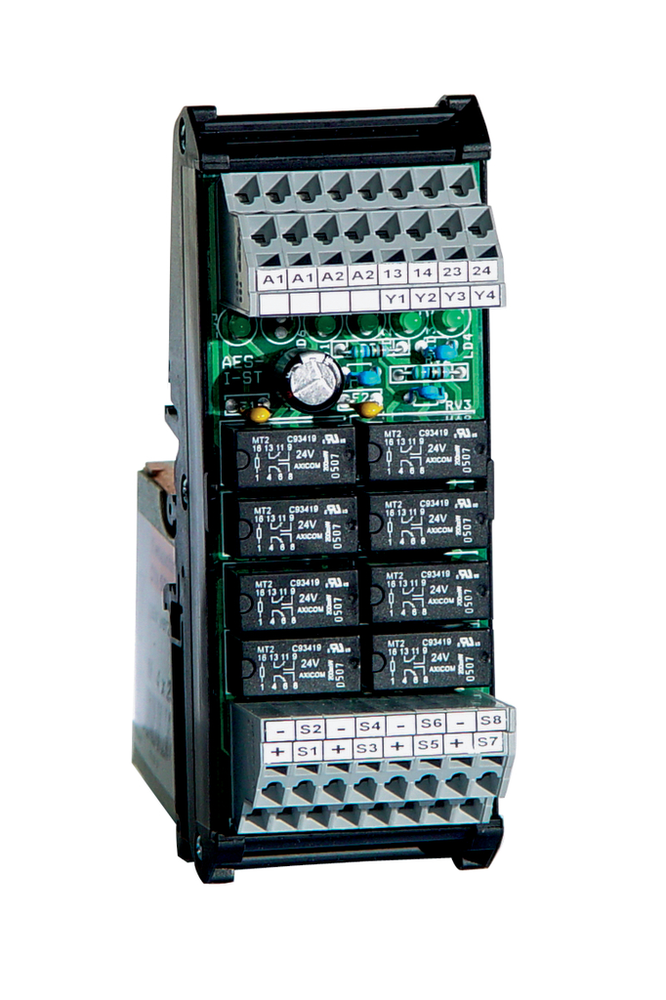

Schmersal 101182805

Ambient conditions

• Ambient temperature
  • -25 ... +55 °C
• Degree of protection of clips or terminals
  • IP20
• Degree of protection of the enclosure
  • IP20
• Degree of protection of the mounting space
  • IP20
• Resistance to vibrations
  • 10...55 Hz, Amplitude 0.35 mm, ± 15 %
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +85 °C
• Storage and transport temperature, minimum
  • -40 °C

Ambient conditions - Insulation values

• Degree of pollution
  • 2
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 0.8 kV

Approvals - Standards

• Certificates
  • cULus

Electrical data

• Contact resistance, maximum
  • 0.1 Ω
• Drop-out delay in case of "emergency stop", maximum
  • 20 ms
• Electrical power consumption
  • 1.7 W
• Input resistance at Ue
  • 2,900 Ω
• Note (Contact resistance)
  • in new state
• Operating voltage
  • 24 VDC -15 % / +20 %
• Pull-in delay at automatic start, maximum
  • 20 ms
• Rated AC voltage for controls at DC minimum
  • 20.4 VDC
• Rated control voltage at DC, maximum
  • 28.8 VDC
• Rated operating voltage
  • 24 VDC
• Ripple voltage
  • 10 %

Electrical data - Digital inputs

• Conduction resistance, maximum
  • 40 Ω
• Input signal, HIGH Signal "1"
  • 19 - 28,8 VDC
• Input signal, LOW Signal "0"
  • 0 - 1 VDC

Electrical data - Digital Output

• Current, Utilisation category DC-12
  • 0.1 A
• Voltage, Utilisation category DC-12
  • 24 VDC

Electrical data - Electromagnetic compatibility (EMC)

• EMC rating
  • EMC-Directive

Electrical data - Relay outputs (auxiliary contacts)

• Switching capacity, maximum
  • 0.1 A
  • 24 VDC

Electrical data - Safe relay outputs

• Current, Utilisation category DC-13
  • 2 A
• Switching capacity, maximum
  • 2 A
  • 24 VAC
• Switching capacity, minimum
  • 10 VDC
  • 10 mA
• Voltage, Utilisation category DC-13
  • 24 VDC

General data

• Climatic stress
  • EN 60068-2-78
• Enclosure material
  • Glass-fibre reinforced thermoplastic, ventilated
• Gross weight
  • 140 g
• Standards
  • EN IEC 62061 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 60947-5-3 | EN IEC 60947-5-5 | EN IEC 61508 | EN IEC 60204-1 | EN IEC 60947-1

General data - Features

• Automatic reset function
  • Yes
• Cross-circuit detection
  • Yes
• Earth connection detection
  • Yes
• Electronic Fuse
  • Yes
• Integral system diagnostics, general
  • Yes
• Number of auxiliary contacts
  • 1
• Number of LEDs
  • 5
• Number of normally closed (NC)
  • 1
• Number of normally open (NO)
  • 1
• Number of safety contacts
  • 2
• Stop-Category
  • 0
• Wire breakage detection
  • Yes

Mechanical data

• Mechanical life, minimum
  • 10,000,000 Operations
• Mounting
  • Snaps onto standard DIN rail to EN 60715

Mechanical data - Connection technique

• Cable section, maximum
  • 2.5 mm²
• Cable section, minimum
  • 0.2 mm²
• Terminal designations
  • IEC/EN 60947-1
• Termination
  • Cage clamps

Mechanical data - Dimensions

• Depth
  • 61 mm
• Height
  • 126 mm
• Width
  • 48 mm

Other data

• Note (applications)
  • Safety sensor | Guard system | Emergency-Stop button | Pull-wire emergency stop switches

Safety classification

• Category
  • 3
• Common Cause Failure (CCF), minimum
  • 65
• Diagnostic Coverage (DC) Level
  • 60 %
• Mission time
  • 20 Year(s)
• Notice
  • for max. 36,500 switching cycles/year and max. 60% contact load
• Performance Level, up to
  • d
• PFH value
  • 2.00 x 10⁻⁷ /h
• Safety Integrity Level (SIL), suitable for applications in
  • 2
• Standards
  • EN IEC 60947-5-1 | EN IEC 61508

Specifications

• Depth
  • 61 mm
• Height
  • 126 mm
• Width
  • 48 mm

Status indication

• Indicated operating states
  • Position relay K2 | Position relay K1 | Position relay K3 | Position relay K3
