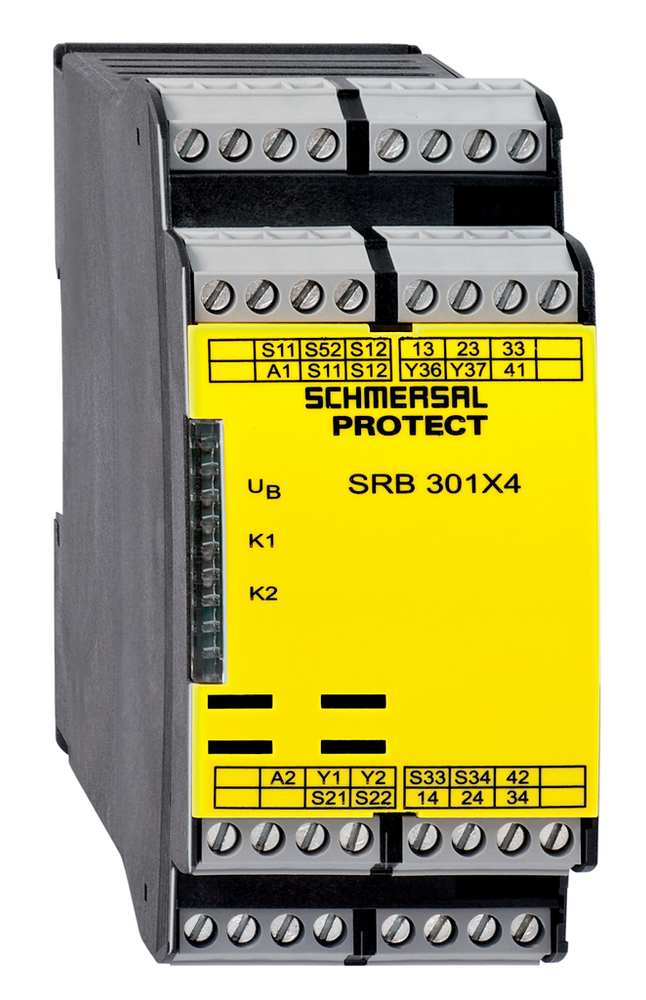

Schmersal 101181895

Ambient conditions

• Ambient temperature
  • -25 ... +60 °C
• Degree of protection of clips or terminals
  • IP20
• Degree of protection of the enclosure
  • IP40
• Degree of protection of the mounting space
  • IP54
• Resistance to vibrations
  • 10 ... 55 Hz, Amplitude 0.35 mm
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +85 °C
• Storage and transport temperature, minimum
  • -40 °C

Ambient conditions - Insulation values

• Degree of pollution
  • 2
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 4 kV

Approvals - Standards

• Certificates
  • cULus

Electrical data

• Contact resistance, maximum
  • 0.1 Ω
• Drop-out delay in case of "emergency stop", maximum
  • 20 ms
• Drop-out delay in case of power failure, typically
  • 40 ms
• Electrical power consumption
  • 5.1 VA
  • 2 W
• Frequency range
  • 50 Hz | 60 Hz
• Material of the contacts, electrical
  • AgSn0. self-cleaning, positive drive
• Note (Contact resistance)
  • in new state
• Operating voltage
  • 230 VAC -15 % / +10 %
• Pull-in delay at RESET, typically
  • 20 ms
• Rated AC voltage for controls, 50 Hz, minimum
  • 195.5 VAC
• Rated AC voltage for controls, 60 Hz, minimum
  • 195.5 VAC
• Rated control voltage at AC 50 Hz, maximum
  • 253 VAC
• Rated control voltage at AC 60 Hz, maximum
  • 253 VAC
• Rated operating voltage
  • 230 VAC
• Utilisation category AC-15
  • 230 VAC
  • 6 A
• Utilisation category DC-13
  • 6 A
  • 24 VDC

Electrical data - Digital inputs

• Conduction resistance, maximum
  • 40 Ω

Electrical data - Electromagnetic compatibility (EMC)

• EMC rating
  • EMC-Directive

General data

• Climatic stress
  • EN 60068-2-78
• Enclosure material
  • Glass-fibre reinforced thermoplastic, ventilated
• Gross weight
  • 450 g
• Standards
  • EN IEC 62061 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 60947-5-3 | EN IEC 60947-5-5 | EN IEC 61508 | EN IEC 60204-1 | EN IEC 60947-1

General data - Features

• Automatic reset function
  • Yes
• Cross-circuit detection
  • Yes
• Earth connection detection
  • Yes
• Electronic Fuse
  • Yes
• Feedback circuit
  • Yes
• Integral system diagnostics, status
  • Yes
• Number of auxiliary contacts
  • 1
• Number of LEDs
  • 3
• Number of normally closed (NC)
  • 2
• Number of safety contacts
  • 3
• Start input
  • Yes
• Stop-Category
  • 0
• Wire breakage detection
  • Yes

Mechanical data

• Mechanical life, minimum
  • 10,000,000 Operations
• Mounting
  • Snaps onto standard DIN rail to EN 60715

Mechanical data - Connection technique

• Cable section, maximum
  • 2.5 mm²
• Cable section, minimum
  • 0.25 mm²
• Terminal designations
  • IEC/EN 60947-1
• Termination
  • rigid or flexible | Screw terminals M20 x 1.5
• Tightening torque of Clips
  • 0.6 Nm

Mechanical data - Dimensions

• Depth
  • 121 mm
• Height
  • 100 mm
• Width
  • 45 mm

Note

• Note (General)
  • Inductive loads (e.g. contactors, relays, etc.) are to be suppressed by means of a suitable circuit.

Other data

• Note (applications)
  • Guard system | Emergency-Stop button | Pull-wire emergency stop switches | Safety light barriers

Safety classification

• Category
  • 4
• Common Cause Failure (CCF), minimum
  • 65
• Diagnostic Coverage (DC) Level
  • > 99 %
• Mission time
  • 20 Year(s)
• Performance Level, up to
  • e
• PFH value
  • 2.00 x 10⁻⁸ /h
• Safety Integrity Level (SIL), suitable for applications in
  • 3
• Standards
  • EN IEC 60947-5-1 | EN IEC 61508

Specifications

• Depth
  • 121 mm
• Height
  • 100 mm
• Width
  • 45 mm

Status indication

• Indicated operating states
  • Position relay K2 | Position relay K1

Wiring example

• Note (Wiring diagram)
  • The wiring diagram is shown with guard doors closed and in de-energised condition. | Relay outputs: Suitable for 2 channel control, for increase in capacity or number of contacts by means of contactors or relays with positive-guided contacts. | The control recognises cross-short, cable break and earth leakages in the monitoring circuit. | 2 channel control shown for a guard-door monitor with two contacts, of which at least one contact has positive break, with external reset button (R). | (H2) = Feedback circuit
