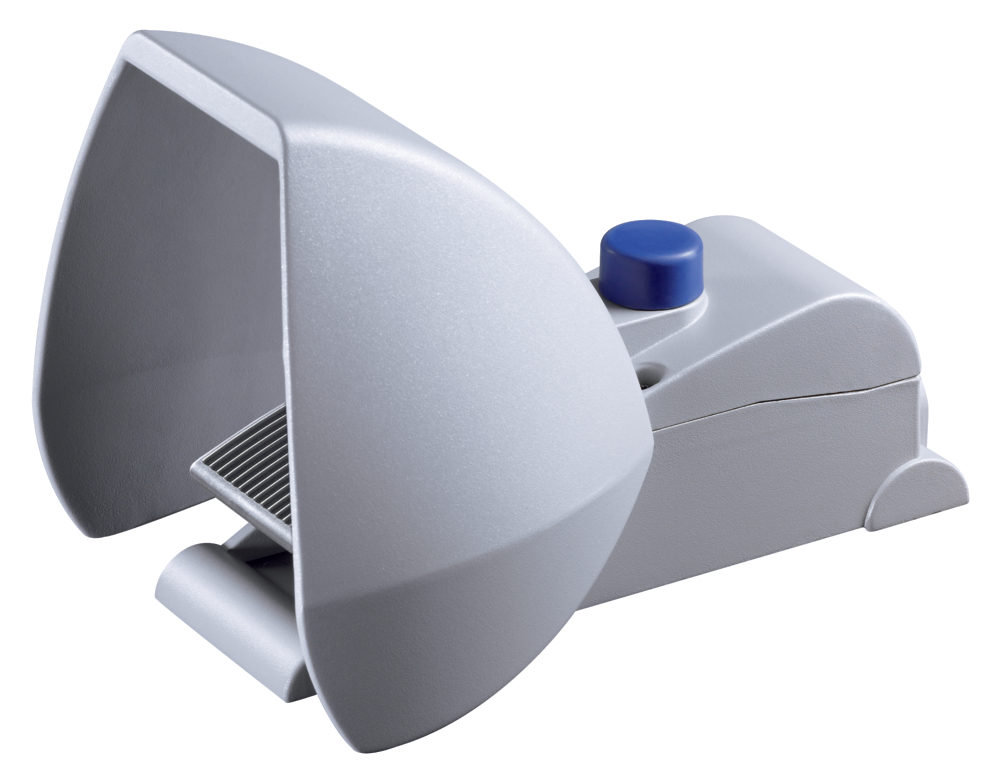

Schmersal 101181536
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TFH 232-11UEDR
Schmersal 101181536 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature, maximum
- +60 °C
- Ambient temperature, minimum
- -25 °C
- Degree of protection
- IP65 to EN 60529
- Note (Relative humidity)
- non-condensing | non-icing
- Relative humidity, maximum
- 95 %
- Relative humidity, minimum
- 30 %
- Resistance to vibrations to EN 60068-2-6
- 10 … 150 Hz (0.35 mm / 5 g)
- Restistance to shock
- 30 g / 11 ms
- Storage and transport temperature, maximum
- +85 °C
- Storage and transport temperature, minimum
- -25 °C
Ambient conditions - Insulation value
- Degree of pollution to VDE 0100
- 3
- Overvoltage category
- III
- Rated impulse withstand voltage U
- 6 kV
- Rated insulation voltage U
- 500 V
Approval - Standards
- Certificates
- cULus | CCC | EAC
Electrical data
- Required rated short-circuit current to EN 60947-5-1
- 1,000 A
- Switching element
- NO contact, NC contact
- Switching frequency
- 3,600 /h
- Switching principle
- Creep circuit element
- Thermal test current
- 10 A
- Utilisation category AC-15
- 230 VAC
- 4 A
- Utilisation category DC-13
- 24 VDC
- 1 A
General data
- Colour of the product
- White aluminum
- Enclosure coating material
- powder-coated
- Enclosure material
- Aluminium
- Gross weight
- 1,765 g
- Material of the cover
- Aluminium
- Material of the pedal
- Glass-fibre, reinforced thermoplastic
- Material of the protective shield
- Aluminium
- Standards
- EN 60947-5-1 | DIN VDE 0660-200 | BG-GS-ET-15
General data - Features
- Latching
- Yes
- Number of openers
- 1
- Number of shutters
- 1
- Probing possible
- Yes
- Suitable for EMERGENCY-OFF
- Yes
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
Mechanical data - Connection technique
- Cable section, maximum
- 2.5 mm²
- Note (Cable section)
- All indications about the cable section are including the conductor ferrules.
- Terminal Connector
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Depth
- 274 mm
- Height
- 189 mm
- Width
- 170 mm
Safety appraisal
- Mission Time
- 20 Year(s)
- Standards
- EN ISO 13849-1
Safety appraisal - Safety outputs
- B10d Normally-closed contact (NC)
- 100,000 Operations
Specifications
- Depth
- 274 mm
- Height
- 189 mm
- Width
- 170 mm
