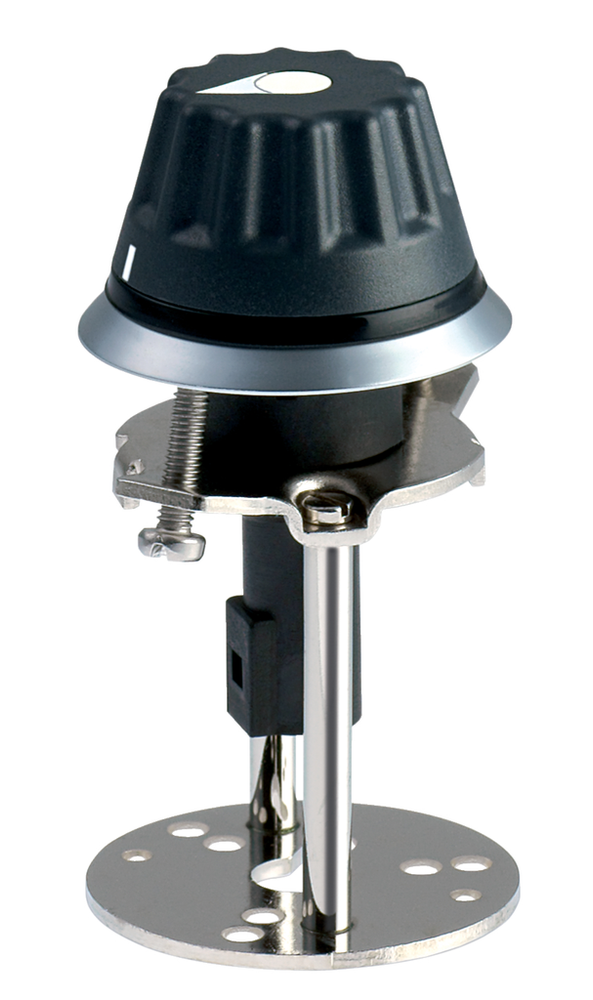

Schmersal 101180990
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
NDAN6/NM
Schmersal 101180990 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- +0 ... +80 °C
- Degree of protection
- IP67 | IP69K
- Resistance to vibrations
- 10 - 150 Hz (0.5 mm / 5 g)
- Restistance to shock
- 50 g
Approvals - Standards
- Certificates
- BG | cULus | IPA
General data
- Colour of the front ring
- Silver
- Colour of the operating element
- Black
- Colour of the rotary button
- Grey
- Design
- Without limit stop
- Gross weight
- 50 g
- Installation conditions (mechanical)
- arbitrarily
- Material of the front ring
- ABS chrome-plated
- Material of the potentiometer socket
- Brass, nickel-plated / stainless steel
- Material of the rotary button
- ABS
- Sealing type
- Membrane | Lip gaskets
- Standards
- EN IEC 60947-5-1 | EN IEC 60947-1
- Versions
- Drehantrieb für Potentiometer
General data - Features
- Fully insulated
- Yes
- Mounting flange
- Yes
Mechanical data
- Mounting
- mounting flange
- Tightening torque of the screw
- 0.6 Nm
Mechanical data - Dimensions
- Diameter of shaft, maximum
- 6 mm
- Diameter of the front ring
- 44.5 mm
- Diameter of the rotary button
- 26 mm
- Height
- 26 mm
- Mounting depth
- 50 mm
- Mounting diameter
- 22.3 mm
- Shaft length
- 30 … 40 mm
- Spacing
- 50 x 60 mm
- Thickness of the front panel, maximum
- 6 mm
- Thickness, of the front panel, minimum
- 1.5 mm
Note
- Note (General)
- For mounting the potentiometer, a central-hole fastening and two different fastenings with three holes are provided.
Scope of delivery
- Scope of delivery
- The potentiometers are not included in delivery and must be ordered from the manufacturers concerned.
Specifications
- Height
- 26 mm
