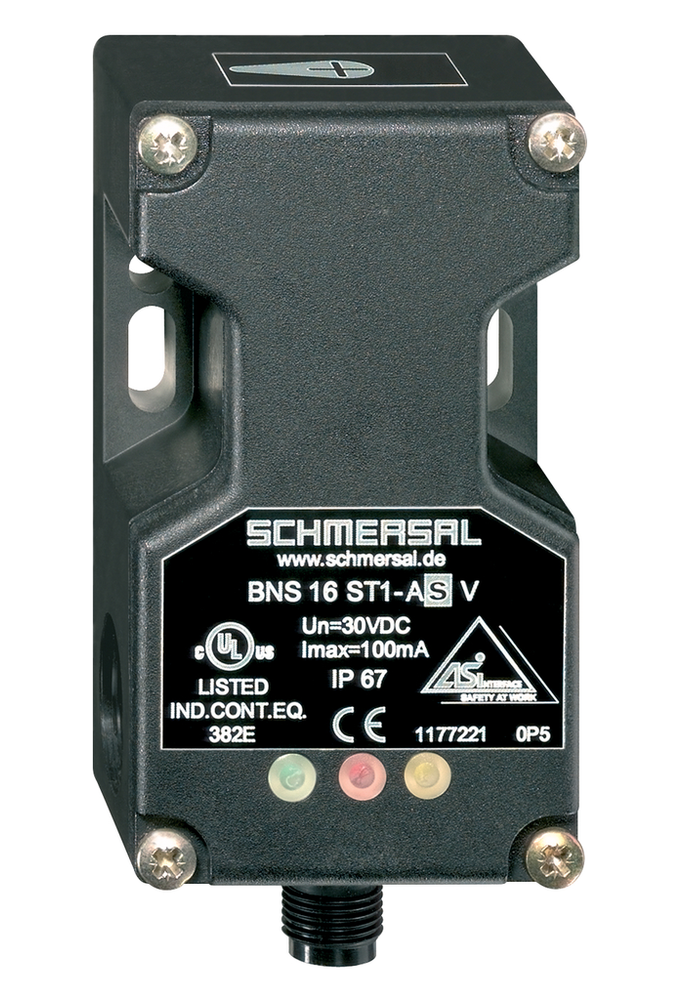

Schmersal 101178190

Accessory

• Recommendation (actuator)
  • BPS 16

Ambient conditions

• Ambient temperature
  • -25 ... +60 °C
• Degree of protection
  • IP67
• Protection class
  • II
• Resistance to vibrations
  • 10 … 55 Hz, amplitude 1 mm
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +70 °C
• Storage and transport temperature, minimum
  • -25 °C

Ambient conditions - Insulation values

• Degree of pollution
  • 3
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 0.8 kV
• Rated insulation voltage U
  • 32 VDC

Approvals - Standards

• Certificates
  • TÜV | cULus | ASi-SaW

Electrical data - AS Interface

• AS-i Current consumption, maximum
  • 50 mA
• Rated operating voltage
  • 18 ... 31.6 VDC (Protection against polarity reversal)

Electrical data - AS-Interface specification

• AS-i, ID-Code
  • 0xB
• AS-i, ID-Code1
  • 0xF
• AS-i, ID-Code2
  • 0xE
• AS-i Input, Channel 1
  • Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i Input, Channel 2
  • Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i Input module address
  • 0
• AS-i, IO-Code
  • 0x0
• AS-i Outputs, DO 0 … DO 3
  • No Function
• AS-i Parameter bits, P0 ... P3
  • No function
• AS-i Profile
  • S-0.B.F.E
• AS-i Specification
  • Safety-Slave
• AS-i Version
  • V 2.1
• Note (AS-i Input module address)
  • Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• Note (AS-i Parameter bits)
  • Set the parameter outputs to "1111" (0xF) | FID: periphery error

General data

• Enclosure material
  • Glass-fibre, reinforced thermoplastic
• Gross weight
  • 145 g
• Installation conditions (mechanical)
  • quasi-flush
• Reaction time, maximum
  • 100 ms
• Standards
  • EN IEC 62026-2 | EN ISO 13849-1 | EN IEC 60947-5-3 | EN IEC 61508
• Working principle
  • Magnetic drive

General data - Features

• Coding
  • Yes
• Integral system diagnostics, status
  • Yes

Mechanical data

• Active area
  • cover-side
• Actuating element
  • Magnet
• Direction of motion
  • Head-on to the active surface
• Note (Repeat accuracy R)
  • Wiederholgenauigkeit R ≤ 0,1 x S

Mechanical data - Connection technique

• Connector position
  • Left
• Termination
  • Connector plug M12, 4-pole, (A-coding)

Mechanical data - Dimensions

• Height of sensor
  • 90 mm
• Length of sensor
  • 38.5 mm
• Width of sensor
  • 40 mm

Mechanical data - Switching distances according EN IEC 60947-5-3

• Assured switching distance "OFF" S
  • 18 mm
• Assured switching distance "ON" S
  • 8 mm

Pin assignment

• PIN 1
  • AS-i +
• PIN 2
  • n.c.
• PIN 3
  • AS-Interface -
• PIN 4
  • n.c.

Safety classification

• Category
  • 4
• Mission time
  • 20 Year(s)
• Note (PFH-value)
  • up to max. 500,000 switching cycles/year
• Performance Level, up to
  • e
• PFH value
  • 7.42 x 10⁻⁹ /h
• Safety Integrity Level (SIL), suitable for applications in
  • 3
• Standards
  • EN IEC 61508

Scope of delivery

• Scope of delivery
  • Actuator must be ordered separately.

Status indication

• Note (LED switching conditions display)
  • (1) LED yellow: Channel 1 / AS-i SaW Bit 0.1 | (2) LED green/red (AS-i duo LED): Supply voltage / communication error / slave address = 0 / periphery error detected | (3) LED yellow: Channel 2 / AS-i SaW Bit 2.3
