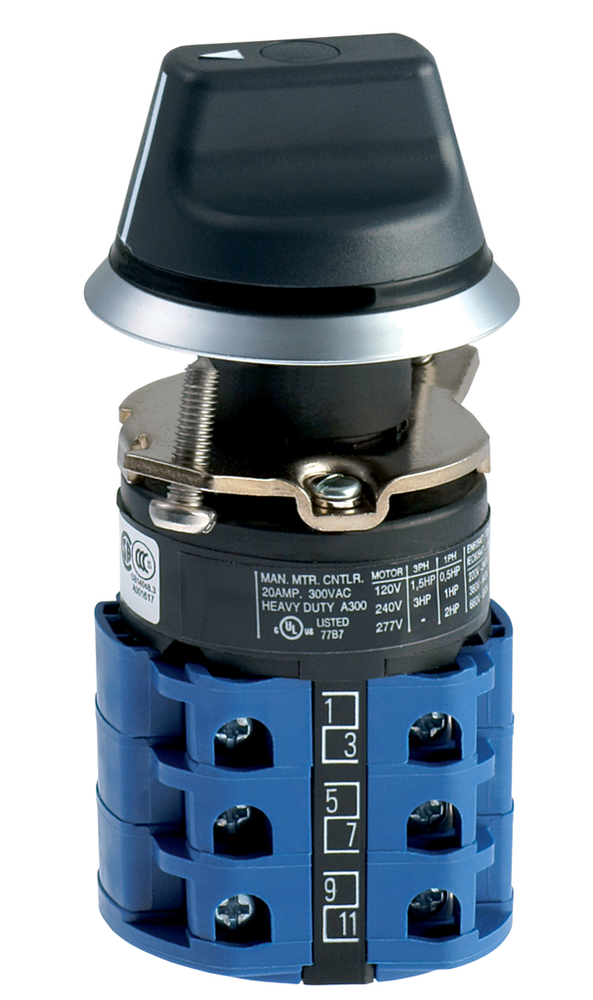

Schmersal 101177926
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
NWSE2K
Schmersal 101177926 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- +0 ... +80 °C
- Degree of protection
- IP67 | IP69K
- Resistance to vibrations
- 10 - 150 Hz (0.5 mm / 5 g)
- Restistance to shock
- 50 g
Ambient conditions - Insulation values
- Rated insulation voltage U
- 690 V
Approvals - Standards
- Certificates
- BG | IPA
Electrical data
- Switching capacity, AC-23
- 7,500 W
- Switching capacity, AC-3
- 5,500 W
- Thermal test current
- 20 A
General data
- Colour of the bellows
- Black
- Colour of the front ring
- Silver
- Colour of the handle
- Grey
- Colour of the operating element
- Black
- Design
- Short toggle
- Gross weight
- 100 g
- Installation conditions (mechanical)
- arbitrarily
- Material of the front ring
- ABS, chrome-plated
- Material of the operators
- ABS
- Sealing type
- Membrane | Lip gaskets
- Standards
- EN IEC 60947-5-1
- Toggle
- short
- Versions
- Step selector switch
General data - Features
- Fully insulated
- Yes
- Latching
- Yes
- Number of switch positions
- 2
Mechanical data
- Mounting
- mounting flange
- switching angle
- 60 °
- Tightening torque of the screw
- 0.6 Nm
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Diameter of the front ring
- 44.5 mm
- Diameter of the knob
- 39 mm
- Height
- 26 mm
- Length of the handle
- 28 mm
- Mounting depth
- 60 mm
- Mounting diameter
- 22.3 mm
- Spacing
- 50 x 50 mm
- Thickness of the front panel, maximum
- 6 mm
- Thickness, of the front panel, minimum
- 1.5 mm
Note
- Note (General)
- A protection against corrosion for the electrical elements behind the front plate cannot be guaranteed. | If a zero position is required, we recommend to use stage 1 (contact 1) to that effect and not to assign it.
Specifications
- Height
- 26 mm
