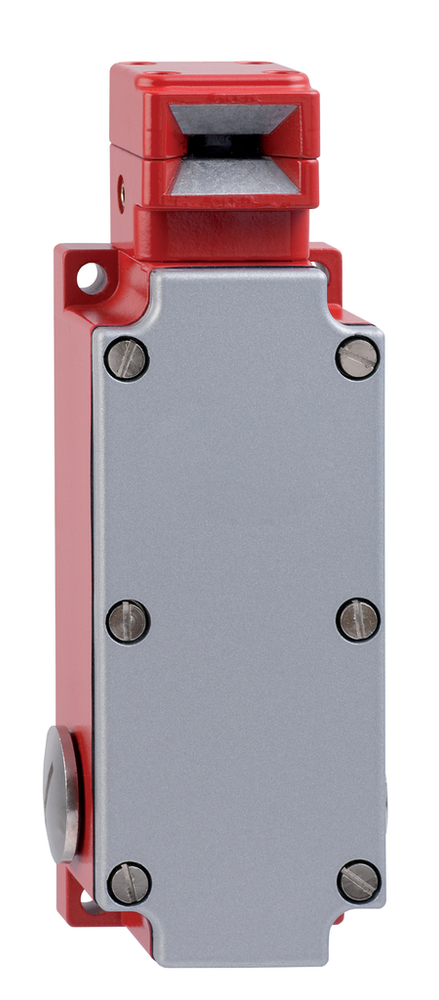

Schmersal 101174274
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SDG01.3440
Schmersal 101174274 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -25 ... +70 °C
- Degree of protection
- IP67
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 2.5 kV
- Rated insulation voltage U
- 400 V
Approvals - Standards
- Certificates
- cULus
Electrical data
- Material of the contacts, electrical
- Silver
- Switching element
- Opener (NC)
- Switching principle
- Slow action
- Thermal test current
- 10 A
- Utilisation category AC-15
- 8 A
- 230 VAC
- Utilisation category DC-13
- 5 A
- 24 VDC
General data
- Enclosure coating material
- painted
- Enclosure material
- Aluminium
- Gross weight
- 400 g
- Standards
- BG-GS-ET-15 | EN ISO 14119 | EN IEC 60947-5-1
General data - Features
- Number of safety contacts
- 3
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Note (Positive break force)
- per NC
- Positive break force, minimum
- 5 N
- Positive break travel
- 14 mm | 15.5 mm
Mechanical data - Connection technique
- Cable section, maximum
- 2.5 mm²
- Cable section, minimum
- 0.5 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
- Termination
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Height of sensor
- 152 mm
- Length of sensor
- 43 mm
- Width of sensor
- 50 mm
Safety classification
- Mission time
- 20 Year(s)
- Standards
- EN ISO 13849-1
Safety classification - Safety outputs
- B
- 2,000,000 Operations
- 1,000,000 Operations
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
