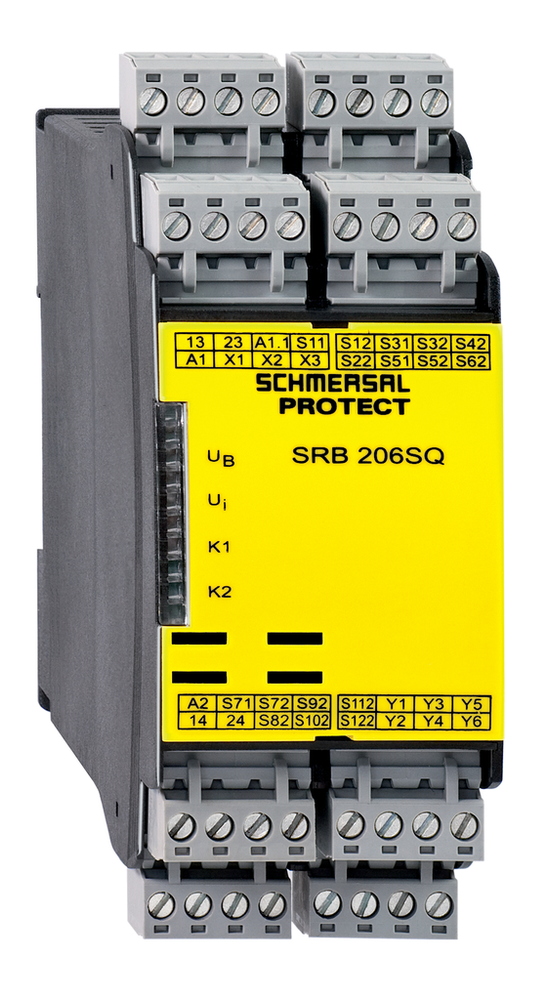

Schmersal 101173934

Ambient conditions

• Ambient temperature
  • -25 ... +45 °C
• Degree of protection of clips or terminals
  • IP20
• Degree of protection of the enclosure
  • IP40
• Degree of protection of the mounting space
  • IP54
• Resistance to vibrations
  • 10...55 Hz, Amplitude 0.35 mm, ± 15 %
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +85 °C
• Storage and transport temperature, minimum
  • -40 °C

Ambient conditions - Insulation values

• Degree of pollution
  • 2
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 4 kV

Approvals - Standards

• Certificates
  • cULus

Electrical data

• Contact resistance, maximum
  • 0.1 Ω
• Drop-out delay in case of "emergency stop", maximum
  • 30 ms
• Electrical power consumption
  • 3.6 W
  • 6.6 VA
• Frequency range
  • 50 Hz | 60 Hz
• Material of the contacts, electrical
  • AgCdO, self-cleaning, positive drive
• Note (Contact resistance)
  • in new state
• Operating current
  • 275 mA
• Operating voltage
  • 24 VAC -15 % / +10 % | 24 VDC -15 % / +20 %
• Pull-in delay at RESET, typically
  • 50 ms
• Rated AC voltage for controls, 50 Hz, minimum
  • 20.4 VAC
• Rated AC voltage for controls, 60 Hz, minimum
  • 20.4 VAC
• Rated AC voltage for controls at DC minimum
  • 20.4 VDC
• Rated control voltage at AC 50 Hz, maximum
  • 26.4 VAC
• Rated control voltage at AC 60 Hz, maximum
  • 26.4 VAC
• Rated control voltage at DC, maximum
  • 28.8 VDC
• Rated operating voltage
  • 24 VAC
  • 24 VDC
• Ripple voltage
  • 10 %
• Utilisation category AC-15
  • 6 A
  • 230 VAC
• Utilisation category DC-13
  • 24 VDC
  • 6 A

Electrical data - Digital inputs

• Conduction resistance, maximum
  • 40 Ω

Electrical data - Electromagnetic compatibility (EMC)

• EMC rating
  • EMC-Directive

General data

• Climatic stress
  • EN 60068-2-78
• Enclosure material
  • Glass-fibre reinforced thermoplastic, ventilated
• Gross weight
  • 400 g
• Standards
  • EN IEC 62061 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 60947-5-3 | EN IEC 60947-5-5 | EN IEC 61508 | EN IEC 60204-1 | EN IEC 60947-1

General data - Features

• Automatic reset function
  • Yes
• Cross-circuit detection
  • Yes
• Earth connection detection
  • Yes
• Electronic Fuse
  • Yes
• Feedback circuit
  • Yes
• Integral system diagnostics, status
  • Yes
• Number of auxiliary contacts
  • 6
• Number of LEDs
  • 4
• Number of normally closed (NC)
  • 12
• Number of safety contacts
  • 2
• Number of signalling outputs
  • 6
• Removable Terminals
  • Yes
• Reset after disconnection of supply voltage
  • Yes
• Reset edge detection
  • Yes
• Start input
  • Yes
• Stop-Category
  • 0
• Wire breakage detection
  • Yes

Mechanical data

• Mechanical life, minimum
  • 10,000,000 Operations
• Mounting
  • Snaps onto standard DIN rail to EN 60715

Mechanical data - Connection technique

• Cable section, maximum
  • 2.5 mm²
• Cable section, minimum
  • 0.25 mm²
• Terminal designations
  • IEC/EN 60947-1
• Termination
  • rigid or flexible | Screw terminals M20 x 1.5
• Tightening torque of Clips
  • 0.6 Nm

Mechanical data - Dimensions

• Depth
  • 121 mm
• Height
  • 100 mm
• Width
  • 45 mm

Note

• Note (General)
  • Inductive loads (e.g. contactors, relays, etc.) are to be suppressed by means of a suitable circuit.

Other data

• Note (applications)
  • Guard system | Emergency-Stop button | Pull-wire emergency stop switches

Safety classification

• Category, Stop 0
  • 3
• Common Cause Failure (CCF), minimum
  • 65
• Diagnostic Coverage (DC) Level, Stop 0
  • > 60 %
• Mission time
  • 20 Year(s)
• Performance Level, stop 0, up to
  • d
• PFH value, Stop 0
  • 2.00 x 10⁻⁷ /h
• Safety Integrity Level (SIL), Stop 0, suitable for applications in
  • 2
• Standards
  • EN IEC 60947-5-1 | EN IEC 61508

Specifications

• Depth
  • 121 mm
• Height
  • 100 mm
• Width
  • 45 mm

Status indication

• Indicated operating states
  • Position relay K2 | Position relay K1 | Internal operating voltage U

Wiring example

• Note (Wiring diagram)
  • The wiring diagram is shown with guard doors closed and in de-energised condition. | Automatic start: The automatic start is programmed by connecting the feedback circuit to the terminals X1/X3. If the feedback circuit is not required, establish a bridge. | Relay outputs: Suitable for 2 channel control, for increase in capacity or number of contacts by means of contactors or relays with positive-guided contacts. | The control recognises cross-short, cable break and earth leakages in the monitoring circuit. | Input level: The example shows a 2-channel control of a guard door monitoring with two position switches, whereof one with positive break, external reset button (R); cross-wire monitoring and feedback circuit (H2) | If more guard doors are monitored, they must be connected according to the wiring table | A single failure in the sensors does not cause the safety to be lost | If the single failure occurs, the safety function will be maintained. Some, although not all, errors will be recognised. An accumulation of unrecognised errors could cause the safety function to be lost.
