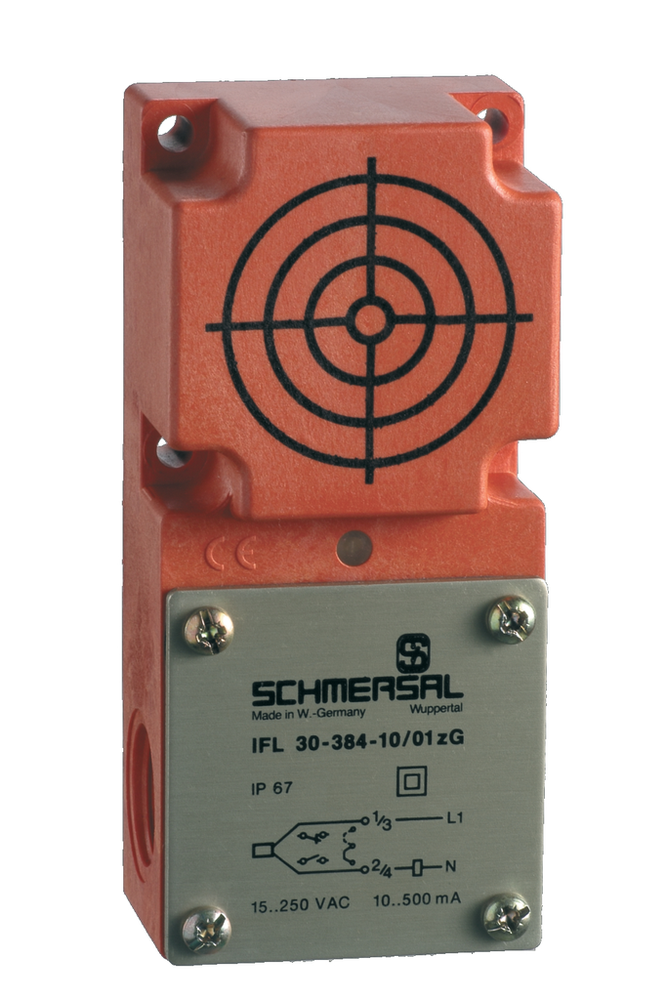

Schmersal 101173580
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
IFL 30-384-10/01-M20
Schmersal 101173580 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -25 ... +70 °C
- Degree of protection
- IP67
- Protection class
- II
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 4 kV
Approvals - Standards
- Certificates
- CCC
Electrical data
- Operating current
- 500 mA
- Operating current, minimum
- 10 mA
- Protection circuit integrated
- inductive interference protection
- Rated operating voltage
- 15 ... 250 VAC | 10 ... 60 VDC
- Rated supply frequency, maximum
- 65 Hz
- Rated supply frequency, minimum
- 45 Hz
- Switching element
- NO contact or NC contact
- Switching frequency, approx.
- 10 Hz
Electrical data - Digital Output
- Current at Voltage drop U
- 0.2 A
- Current leakage I
- 1 mA
- Design of control elements
- Two-wire
- Voltage drop U
- 4.5 V
General data
- Enclosure material
- Plastic
- Gross weight
- 230 g
- Housing construction form
- Block
- Installation conditions (mechanical)
- not flush
- Standards
- DIN VDE 0660-208 | EN IEC 60947-5-2
General data - Features
- Integral system diagnostics, status
- Yes
- Number of cable wires
- 2
Mechanical data - Connection technique
- Cable section, maximum
- 2 x 1.5 mm²
- Termination
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Height of sensor
- 120 mm
- Length of sensor
- 40 mm
- Width of sensor
- 55 mm
Mechanical data - Switching distances according EN IEC 60947-5-3
- Nominal switching distance S
- 30 mm
Note
- Note (General)
- Programmable by repositioning the plug-in jumper at the terminal screws
Status indication
- Note (Integral System Diagnostics, status )
- yellow LED
