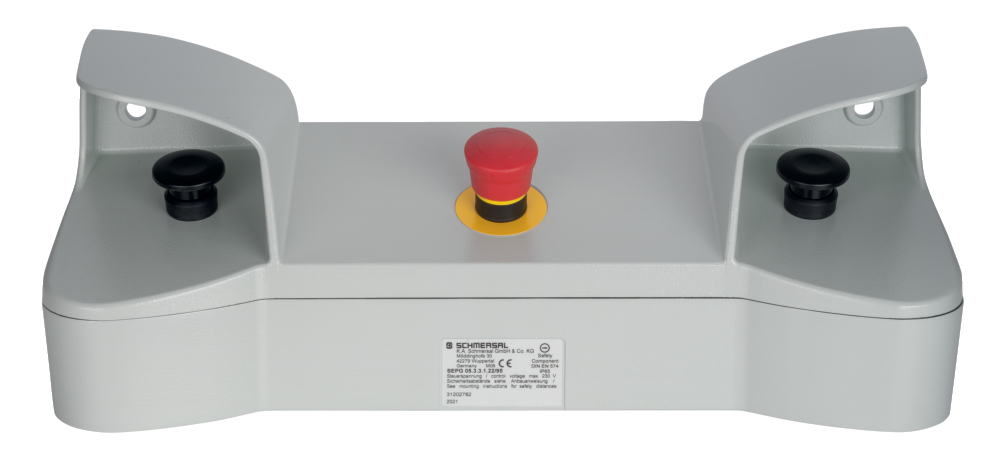

Schmersal 101172761
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SEPG05.3.3.1.22/95
Schmersal 101172761 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Accessory
- Recommendation (product combination)
- SRB201ZH | SRB200ZHX1 | SRB 201ZHX3
Ambient conditions
- Degree of protection
- IP65
Ambient conditions - Insulation values
- Rated insulation voltage U
- 440 V
Approvals - Standards
- Certificates
- cULus
Electrical data
- Thermal test current
- 10 A
- Utilisation category AC-15
- 8 A
- 250 VAC
- Utilisation category DC-13
- 24 VDC
- 5 A
General data
- Enclosure coating material
- powder-coated
- Enclosure material
- Aluminium
- Gross weight
- 4,300 g
- Standards
- EN ISO 13850 | EN ISO 13851 | EN IEC 60947-5-1 | EN IEC 60947-5-5 | EN IEC 60947-1
General data - Features
- Construction kit possible
- Yes
- Number of Emergency Stop button
- 1
- Number of normally closed (NC)
- 2
- Number of normally open (NO)
- 2
- Number of operating push buttons (positioning parts)
- 2
- Suitable for EMERGENCY-OFF
- Yes
Mechanical data
- Mechanical life, minimum
- 10,000,000 Operations
Mechanical data - Connection technique
- Cable section, maximum
- 1.5 mm²
- Termination
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Depth
- 160 mm
- Height
- 184 mm
- Length x Width x Height
- Operating push buttons (positioning parts): 40 mm | Emergency stop pushbutton: 40 mm
- Width
- 494 mm
Note
- Note (General)
- 1 NO/1 NC contact per unit, 1 NO/1 NC contact for Emergency-Stop | Optional: actuators with low actuating force | Central part suitable for fitting of up to 10 additional command devices and indicator lights (Ø 22 mm)
- Note (Number of Emergency Stop button)
- Consisting of: 3SB3000-1GA11; 3SB3400-OB; 3SB3400-OC | Consisting of: 3SB3000-1HA20; 3SB3400-OA
Specifications
- Depth
- 160 mm
- Height
- 184 mm
- Width
- 494 mm
