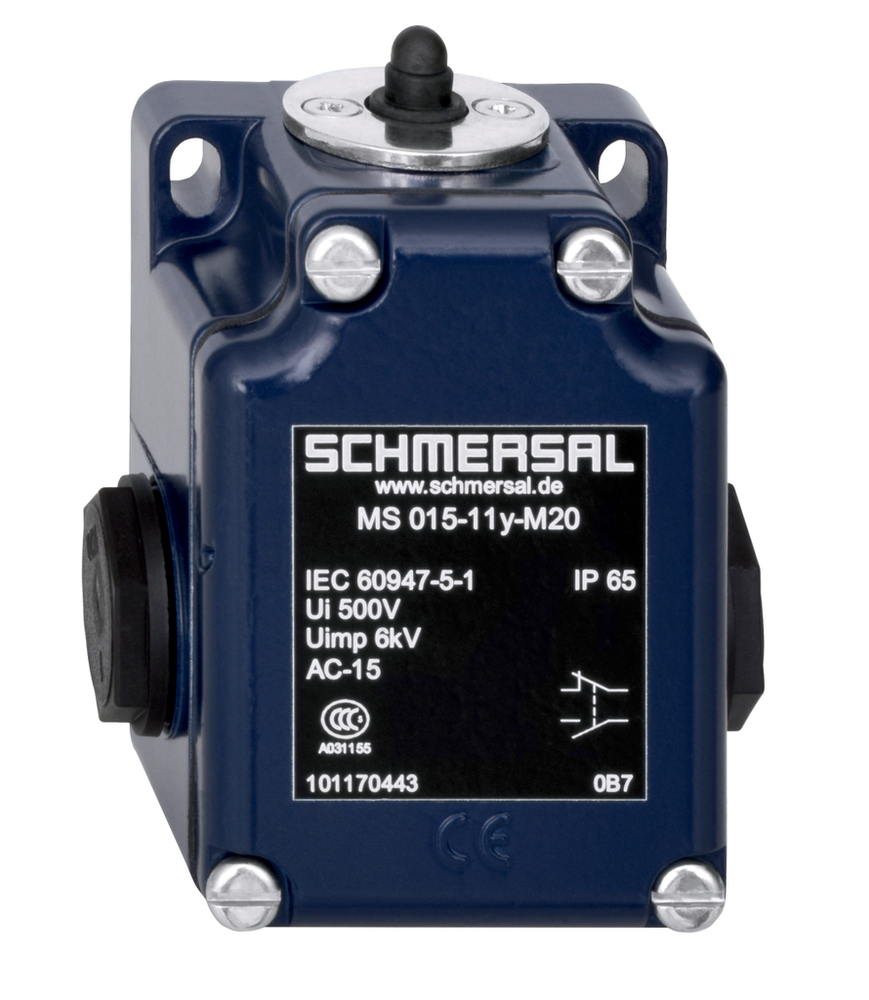

Schmersal 101170443
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MS 015-11Y-M20
Schmersal 101170443 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature, maximum
- +90 °C
- Ambient temperature, minimum
- -30 °C
- Degree of protection
- IP65 to EN 60529
Ambient conditions - Insulation value
- Rated insulation voltage U
- 500 V
Approval - Standards
- Certificates
- CCC | EAC
Electrical data
- Bounce duration, maximum
- 2.5 ms
- Note (Switching element)
- galvanically separated contact bridges
- Switching element
- NO contact, NC contact
- Switching principle
- Snap switch element
- Switchover time, maximum
- 40 ms
- Thermal test current
- 10 A
- Utilisation category AC-15
- 2.5 A
- 400 VAC
General data
- Active principle
- mechanical
- Enclosure coating material
- painted
- Enclosure material
- Light-alloy diecast, paint finish
- Gross weight
- 230 g
- Material of the contacts, electrical
- Silver
- Slide form
- Sphere
- Standards
- EN 60947-5-1
General data - Features
- Number of openers
- 1
- Number of shutters
- 1
Mechanical data
- Actuating angle
- 20 °
- Actuating element
- Plunger
- Actuating force
- 15 N
- Actuating speed, maximum
- 1 m/s
- Actuating speed, minimum
- 1 mm/min
- Contact opening
- 2 x 1.2 mm
- Mechanical life, minimum
- 10,000,000 Operations
- Note (Actuating speed)
- Actuating speed with vertical actuating angle to switch axis
Mechanical data - Connection technique
- Cable section, maximum
- 2.5 mm²
- Note (Cable section)
- All indications about the cable section are including the conductor ferrules.
- Terminal Connector
- Screw terminals M20 x 1.5
- Wire cross-section
- 13 AWG
Mechanical data - Dimensions
- Diameter of the Plunger
- 6 mm
- Height of sensor
- 86 mm
- Length of sensor
- 43 mm
- Width of sensor
- 67 mm
