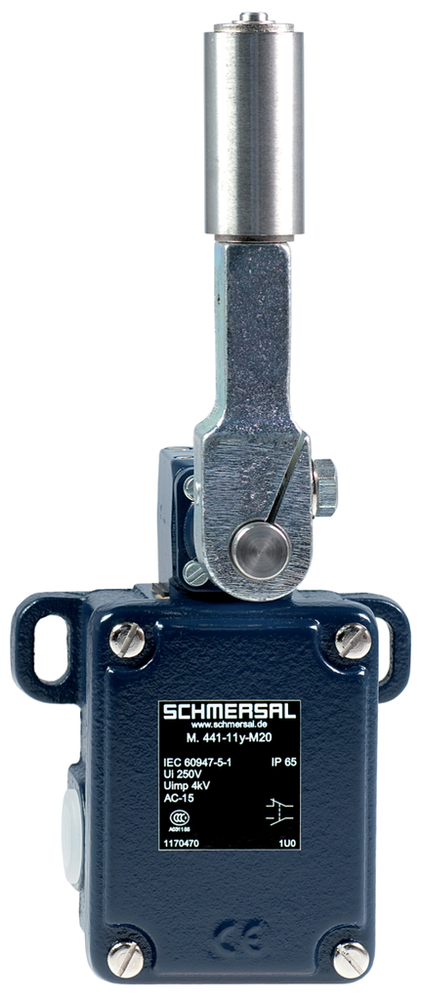

Schmersal 101170427
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
T. 441-11Y-M20-243
Schmersal 101170427 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -30 ... +90 °C
- Degree of protection
- IP65
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 6 kV
- Rated insulation voltage U
- 400 V
Approvals - Standards
- Certificates
- CCC
Electrical data
- Material of the contacts, electrical
- Silver
- Switching element
- NO contact, NC contact
- Switching frequency
- 3,000 /h
- Switching principle
- Slow action
- Thermal test current
- 16 A
- Utilisation category AC-15
- 400 VAC
- 4 A
General data
- Enclosure coating material
- painted
- Enclosure material
- Grey cast iron, galvanised
- Gross weight
- 1,821 g
- Standards
- EN IEC 60947-5-1
- Working principle
- mechanical
General data - Features
- Number of normally closed (NC)
- 1
- Number of normally open (NO)
- 1
Mechanical data
- Actuation direction
- each time 60° right-hand side and left-hand side rotation
- Contact opening
- 2 x 6 mm
- Mechanical life, minimum
- 10,000,000 Operations
Mechanical data - Connection technique
- Cable section, maximum
- 2.5 mm²
- Cable section, minimum
- 1.5 mm²
- Termination
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Diameter of Castor
- 25 mm
- Height of sensor
- 99 mm
- Height of the lever
- 141 mm
- Length of sensor
- 63 mm
- Length of the lever
- 25 mm
- Width of sensor
- 106 mm
- Width of the lever
- 25 mm
Safety classification - Safety outputs
- B
- 2,000,000 Operations
