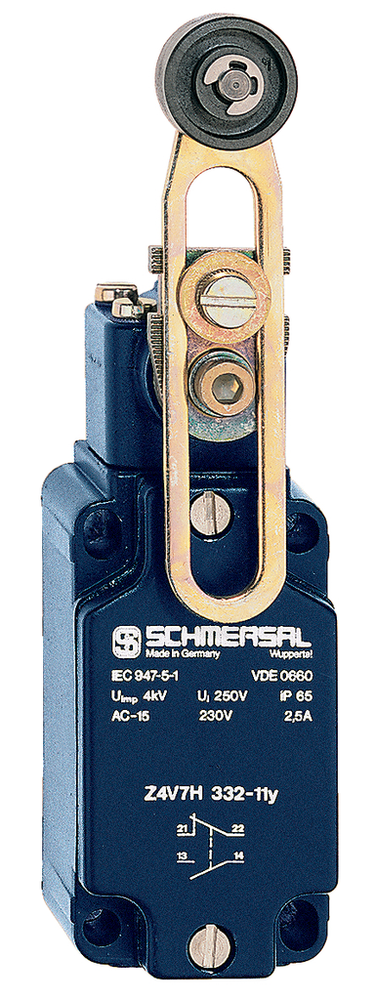

Schmersal 101169905
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Z4V7H 332-11Y-M20-2138
Schmersal 101169905 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -30 ... +80 °C
- Degree of protection
- IP65 | IP67
- Degree of protection of the enclosure
- IP40
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 4 kV
- Rated insulation voltage U
- 500 V
Approvals - Standards
- Certificates
- CCC
Electrical data
- Bounce duration, maximum
- 2.5 ms
- Material of the contacts, electrical
- Gold-plated silver (AgNi 15 + Au 0,3µm)
- Required rated short-circuit current
- 1,000 A
- Switching element
- NO contact, NC contact
- Switching frequency
- 3,000 /h
- Switching principle
- Snap action
- Switchover time, minimum
- 1.5 ms
- Thermal test current
- 6 A
- Utilisation category AC-15
- 230 VAC
- 2.5 A
General data
- Enclosure coating material
- painted
- Enclosure material
- Light alloy die-casting
- Gross weight
- 320 g
- Housing construction form
- Norm construction design
- Lever material
- Metal film
- Standards
- BG-GS-ET-15 | EN IEC 60947-5-1
General data - Features
- Number of auxiliary contacts
- 1
- Number of safety contacts
- 1
- Safety functions
- Yes
Mechanical data
- Actuating element
- Roller lever
- Actuating speed, minimum
- 10 mm/min
- Actuating torque, minimum
- 0.4 Nm
- Contact opening
- > 2 x 1.25 mm (for complete stroke)
- Mechanical life, minimum
- 30,000,000 Operations
- Repeat accuracy of switching points
- 0.02 mm
- Roller material
- Plastic
Mechanical data - Connection technique
- Cable section, maximum
- 2.5 mm²
- Cable section, minimum
- 1.5 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
- Termination
- Screw terminals M20 x 1.5
Mechanical data - connector side B
- Connector typ
- Female connector
Mechanical data - Dimensions
- Height of sensor
- 173.5 mm
- Length of sensor
- 57 mm
- Width of sensor
- 40 mm
Safety classification
- Mission time
- 20 Year(s)
- Standards
- EN ISO 13849-1
Safety classification - Safety outputs
- B
- 20,000,000 Operations
