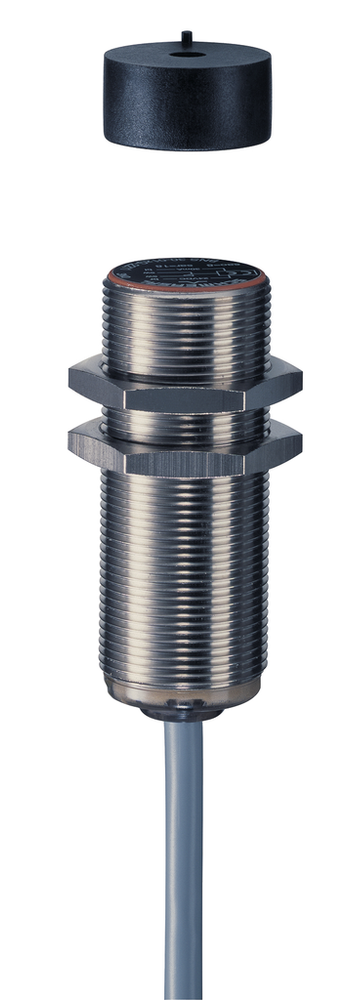

Schmersal 101168357
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
BNS 30-01ZG-2211 6,0M
Schmersal 101168357 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Accessory
- Recommendation (actuator)
- BPS 300 | BPS 303 | BPS 303 SS
Ambient conditions
- Ambient temperature
- -25 ... +55 °C
- Degree of protection
- IP67
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
- Restistance to shock
- 30 g / 11 ms
- Storage and transport temperature, maximum
- +70 °C
- Storage and transport temperature, minimum
- -25 °C
Electrical data
- Switching capacity, maximum
- 750 W
- Switching current, maximum
- 3 A
- Switching frequency, maximum
- 5 Hz
- Switching voltage, maximum
- 250 VAC
- Time to readiness, maximum
- 50 ms
General data
- Coding level according to EN ISO 14119
- Low
- Duration of risk, maximum
- 50 ms
- Enclosure coating material
- nickel-plated
- Enclosure material
- Brass
- Gross weight
- 520 g
- Installation conditions (mechanical)
- quasi-flush
- Standards
- BG-GS-ET-14 | EN IEC 60947-5-3
- Working principle
- Magnetic drive
General data - Features
- Safety monitoring module integrated
- Yes
Mechanical data
- Actuating element
- Magnet
Mechanical data - Dimensions
- ISO thread of the sensor
- M30
- Length of sensor
- 78 mm
Mechanical data - Switching distances according EN IEC 60947-5-3
- Assured switching distance "OFF" S
- 15 mm
- Assured switching distance "ON" S
- 5 mm
Note
- Note (General)
- Contact symbols shown for the closed condition of the guard device.
Safety classification
- Mission time
- 20 Year(s)
- Standards
- EN ISO 13849-1
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
