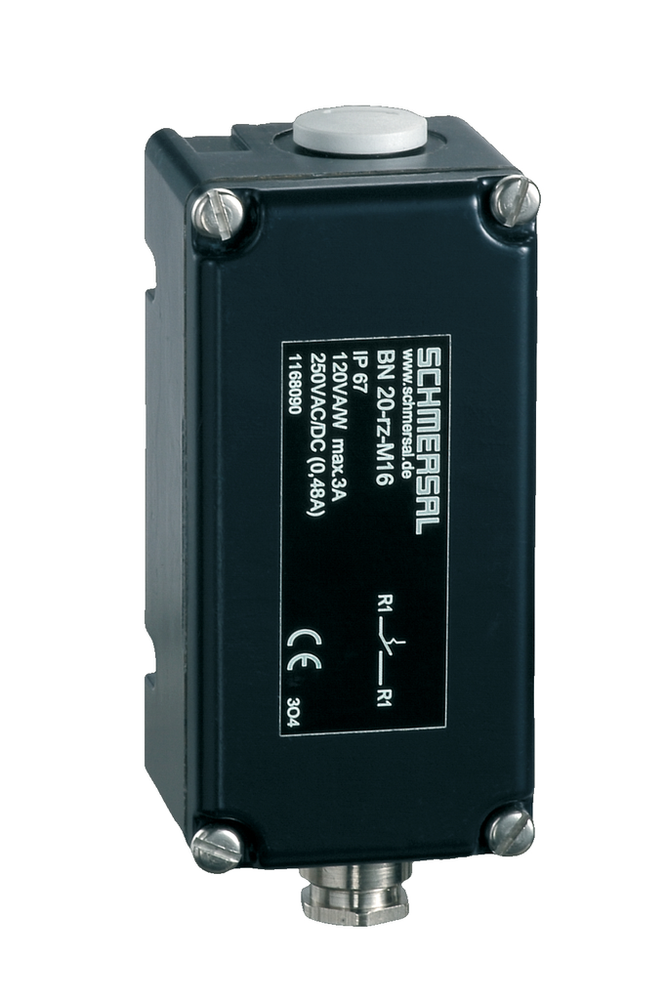

Schmersal 101168090

Accessory

• Recommendation (actuator)
  • BP 10 S | 2x BP 10 S | BP 15 S | BP 34 S | BP 20 S | BP 31 S | BP 11 S | 2x BP 11 S | BP 12 S | BP 21 S | 2x BP 21 S | BE 20 S | BP 10 N | 2x BP 10 N | BP 15 N | 2 x BP 15/2 N | 2x BP 15/2 S | BP 34 N | BP 20 N | BP 31 N | BP 11 N | 2x BP 11 N | BP 12 N | 2x BP 12 N | 2x BP 12 S | BP 21 N | 2x BP 21 N | BE 20 N

Ambient conditions

• Ambient temperature
  • -25 ... +90 °C
• Degree of protection
  • IP67
• Resistant to vibration
  • 50 g, on sine wave oscillation

Electrical data

• Bounce duration, maximum
  • 0.6 ms
• Bounce duration, minimum
  • 0.3 ms
• Switching capacity, maximum
  • 120 W
  • 120 VA
• Switching current, maximum
  • 3 A
• Switching element
  • bistable contact
• Switching frequency
  • 1,080,000 /h
• Switching voltage, maximum
  • 250 VAC

Electrical data - Digital Output

• Design of control elements
  • Reed contacts

General data

• Active area
  • Metal film
• Enclosure material
  • Aluminium
• Gross weight
  • 290 g
• Housing construction form
  • rectangular
• Standards
  • EN IEC 60947-5-1
• Working principle
  • Magnetic drive

General data - Features

• bias magnet
  • Yes
• Latching
  • Yes
• Number of snap-in contacts
  • 1

Mechanical data

• Active area
  • lateral
• Actuating element
  • Magnet
• Actuating panels
  • lateral
• Actuating speed, maximum
  • 18 m/s
• Mechanical life, minimum
  • 1,000,000,000 Operations
• Repeat accuracy R
  • 0.3 mm

Mechanical data - Connection technique

• Termination
  • Screw terminals M20 x 1.5

Mechanical data - Dimensions

• Height of sensor
  • 52 mm
• Length of sensor
  • 47 mm
• Width of sensor
  • 104 mm

Mechanical data - Switching distances according EN IEC 60947-5-3

• Note (Switching distance Sn)
  • Actuating distance up to 50 mm depending on version and actuating magnet
• Switching distance S
  • 5 mm … 50 mm | BP 10S = 5 mm | 2 x BP 10S = 10 mm | BP 20S = 15 mm | BP 31S = 15 mm | BP 11S = 5 mm | 2 x BP 11S = 15 mm | BP 12S = 10 mm | BP 10N = 5 mm | 2 x BP 10N = 10 mm | BP 15N = 7 mm | BP 15S = 7 mm | 2 x BP 15/2N = 15 mm | 2 x BP 15/2S = 15 mm | BP 34N = 10 ... 25 mm | BP 34S = 10 ... 25 mm | BP 20N = 15 mm | BP 31N = 15 mm | BP 11N = 5 mm | 2 x BP 11N = 15 mm | BP 12N = 10 mm | 2 x BP 12N = 5 ... 20 mm | 2 x BP 12S = 5 ... 20 mm | BP 21 N = 10 ... 35 mm | BP 21 S = 10 ... 35 mm | 2 x BP 21N = 15 ... 50 mm | 2 x BP 21S = 15 ... 50 mm | BE 20N = 10 mm | BE 20S = 10 mm

Note

• Note (General)
  • The opening and closing functions depend on the direction of actuation, the actuating magnets and the polarity of the actuating magnets. | When the switches and actuators come together, the colours must coincide: Red (S) to red (S) and green (N) to green (N).

Scope of delivery

• Scope of delivery
  • Actuator must be ordered separately.
