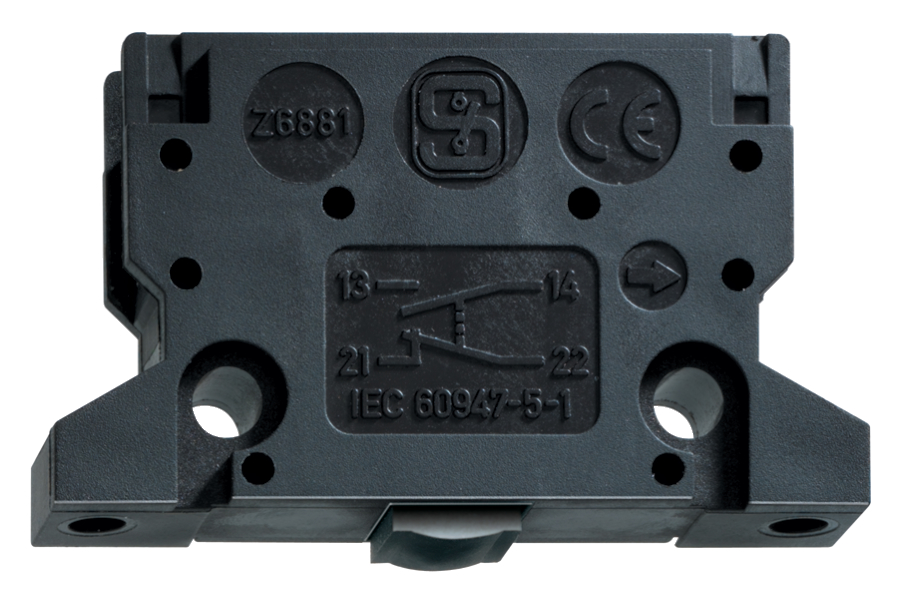

Schmersal 101167941
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Z 6881-11-1-80R-i
Schmersal 101167941 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -30 ... +85 °C
- Degree of protection
- IP40
- Degree of protection of clips or terminals
- IP00 (without connector)
Ambient conditions - Insulation values
- Degree of pollution
- 3
- Rated impulse withstand voltage U
- 4 kV
- Rated insulation voltage U
- 250 VAC
Approvals - Standards
- Certificates
- CCC
Electrical data
- Bounce duration, maximum
- 3 ms
- Material of the contacts, electrical
- Gold-plated silver (AgNi 15 + Au 0,3µm)
- Switching frequency
- 10,000 /h
- Switching principle
- Snap action
- Switchover time, maximum
- 5 ms
- Thermal test current
- 10 A
- Utilisation category AC-15
- 230 VAC
- 2.5 A
- Utilisation category DC-13
- 6 A
- 24 VDC
General data
- Enclosure material
- Glass-fibre, reinforced thermoplastic
- Gross weight
- 45 g
- Material of the actuator
- Thermoplastic
- Standards
- EN IEC 60947-5-1
- Terminal (mechanical)
- Screw connection
General data - Features
- Number of normally closed (NC)
- 1
- Number of normally open (NO)
- 1
Mechanical data
- Actuating force
- 12 N
- Actuating speed
- 1 mm/min
- Actuating speed, minimum
- 1 mm/min
- Contact opening
- > 2 x 1.25 mm
- Mechanical life, minimum
- 1,000,000 Operations
- Repeat accuracy of switching points
- 0.02 mm
Mechanical data - Connection technique
- Cable section, maximum
- 2 x 1.5 mm²
