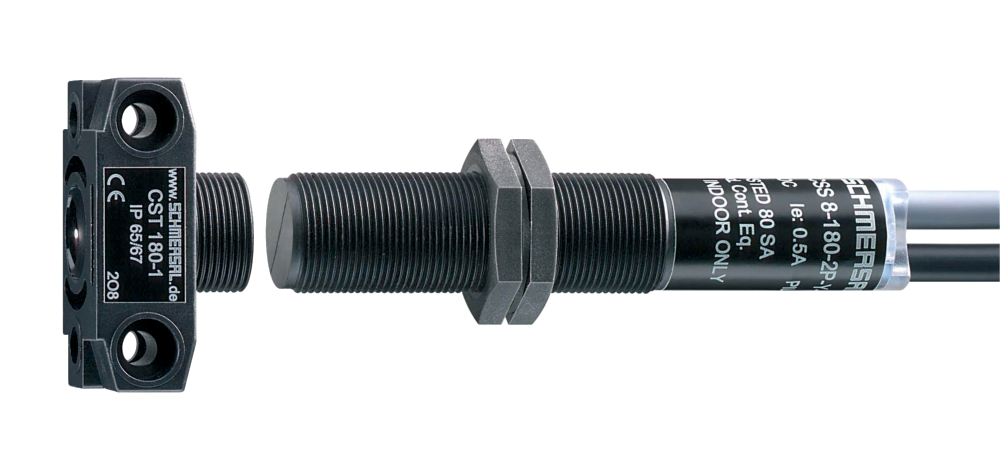

Schmersal 101167896

Accessory

• Recommendation (actuator)
  • CST 180-1 | CST 180-2
• Recommended safety switchgear
  • PROTECT PSC1 | SRB-E-301ST | SRB-E-201LC

Ambient conditions

• Ambient temperature
  • -25 ... +60 °C
• Degree of protection
  • IP65 | IP67
• Protection class
  • II
• Resistance to vibrations
  • 10 … 55 Hz, amplitude 1 mm
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +85 °C
• Storage and transport temperature, minimum
  • -25 °C

Ambient conditions - Insulation values

• Degree of pollution
  • 3
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 0.8 kV
• Rated insulation voltage U
  • 32 VDC

Approvals - Standards

• Certificates
  • cULus | UKCA

Electrical data

• No-load supply current I
  • 50 mA
• Operating current
  • 1,000 mA
• Operating voltage
  • 24 VDC -15 % / +10 %
• Rated operating voltage
  • 24 VDC
• Switching frequency, approx.
  • 3 Hz

Electrical data - Safety digital outputs

• Current, Utilisation category DC-12
  • 0.5 A
• Current, Utilisation category DC-13
  • 0.5 A
• Design of control elements
  • p-type
• Leakage current I
  • 0.5 mA
• Output current, (fail-safe output), maximum
  • 0.5 A
• Rated operating current (safety outputs)
  • 500 mA
• Voltage drop U
  • 0.5 V
• Voltage, Utilisation category DC-12
  • 24 VDC
• Voltage, Utilisation category DC-13
  • 24 VDC

General data

• Active area
  • Glass-fibre, reinforced thermoplastic
• Duration of risk, maximum
  • 30 ms
• Enclosure material
  • Glass-fibre, reinforced thermoplastic
• Gross weight
  • 137 g
• Housing construction form
  • Cylinder, thread
• Installation conditions (mechanical)
  • not flush
• Material of the nuts
  • Glass-fibre, reinforced thermoplastic
• Reaction time, maximum
  • 30 ms
• Sensor topology
  • Individual sensor or end sensor in a series
• Standards
  • EN IEC 60947-5-3 | EN IEC 61508
• Working principle
  • inductive

General data - Features

• Cross-circuit detection
  • Yes
• Integral system diagnostics, status
  • Yes
• Number of fail-safe digital outputs
  • 2
• Number of series-wiring of sensors
  • 16
• Safety functions
  • Yes
• Short circuit detection
  • Yes

Mechanical data

• Hysteresis (Switching distance), maximum
  • 0.7 mm
• Repeat accuracy R
  • 0.2 mm
• Tightening torque of nuts, maximum
  • 3 Nm

Mechanical data - Connection technique

• Length of cable
  • 2 m
• Terminal connector, Output
  • 4-pole
• Termination
  • Cable
• Wire cross-section
  • 20 AWG
  • 0.5 mm

Mechanical data - Dimensions

• ISO thread of the sensor
  • M18
• Length of sensor
  • 92 mm
• width across flats
  • 24 BK

Mechanical data - Switching distances according EN IEC 60947-5-3

• Assured switching distance "OFF" S
  • 10 mm
• Assured switching distance "ON" S
  • 7 mm
• Switch distance, typical
  • 8 mm

Note

• Note (General)
  • Evaluation requirements: dual-channel safety input, suitable for p-type sensors with NO function. The safety-monitoring module must tolerate internal functional tests of the sensors with cyclic switch-off of the sensor outputs for max. 0.25 ms. Short-circuit recognition by the evaluation is not necessary.

Pin assignment

• PIN 1
  • A1 Ue Brown
• PIN 2
  • Y2 safety output 2: White
• PIN 3
  • A2 GND Blue
• PIN 4
  • Y1 Safety output 1 Black

Safety classification

• Category
  • 4
• Mission time
  • 20 Year(s)
• Performance Level, up to
  • e
• PFH value
  • 2.50 x 10⁻⁹ /h
• Safety Integrity Level (SIL), suitable for applications in
  • 3
• Standards
  • EN ISO 13849-1 | EN IEC 60947-5-3 | EN IEC 61508

Scope of delivery

• Scope of delivery
  • Actuator must be ordered separately.
• Scope of delivery of mounting material
  • 2x nuts M18 x 1

Status indication

• Note (LED switching conditions display)
  • Multi-coloured LED: Green, Red, Yellow
