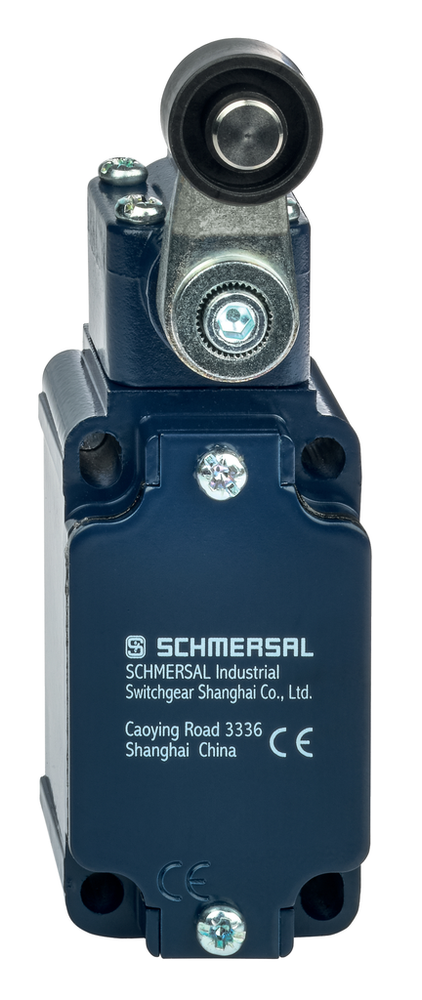

Schmersal 101167776
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Z4VH 335-02Z-M20
Schmersal 101167776 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature, maximum
- +80 °C
- Ambient temperature, minimum
- -30 °C
- Degree of protection
- IP65 to EN 60529 | IP67 to EN 60529
Ambient conditions - Insulation value
- Rated impulse withstand voltage U
- 6 kV
- Rated insulation voltage U
- 500 V
Approval - Standards
- Certificates
- cULus | CCC | EAC
Electrical data
- Required rated short-circuit current to EN 60947-5-1
- 1,000 A
- Switching element
- Opener (NC)
- Switching frequency
- 5,000 /h
- Switching principle
- Snap switch element
- Switchover time, maximum
- 2 ms
- Thermal test current
- 10 A
- Utilisation category AC-15
- 230 VAC
- 4 A
- Utilisation category DC-13
- 4 A
- 24 VDC
General data
- Actuator type to DIN EN 50041
- A
- Enclosure coating material
- painted
- Enclosure material
- Light alloy die-casting
- Gross weight
- 265 g
- Housing construction form
- Norm construction design
- Lever material
- Metal film
- Material of the contacts, electrical
- Silver
- Roller material
- Plastic
General data - Features
- Number of safety contacts
- 2
- Safety functions
- Yes
Mechanical data
- Actuating element
- Roller lever
- Actuating speed, maximum
- 2.5 m/s
- Actuating torque, minimum
- 0.3 Nm
- Mechanical life, minimum
- 30,000,000 Operations
- Note (Actuating speed)
- Actuating speed with actuating angle 30° to switch axis
- Note Bounce duration
- Bounce duration in accordance with actuating speed
Mechanical data - Connection technique
- Cable section, maximum
- 2.5 mm²
- Cable section, minimum
- 0.75 mm²
- Note (Cable section)
- All indications about the cable section are including the conductor ferrules.
- Terminal Connector
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Height of sensor
- 134 mm
- Length of sensor
- 60.6 mm
- Width of sensor
- 40.5 mm
Safety appraisal
- Mission Time
- 20 Year(s)
- Standards
- BG-GS-ET-15 | EN ISO 13849-1 | EN 60947-5-1
Safety appraisal - Safety outputs
- B10d Normally-closed contact (NC)
- 20,000,000 Operations
