Schmersal 101166025
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

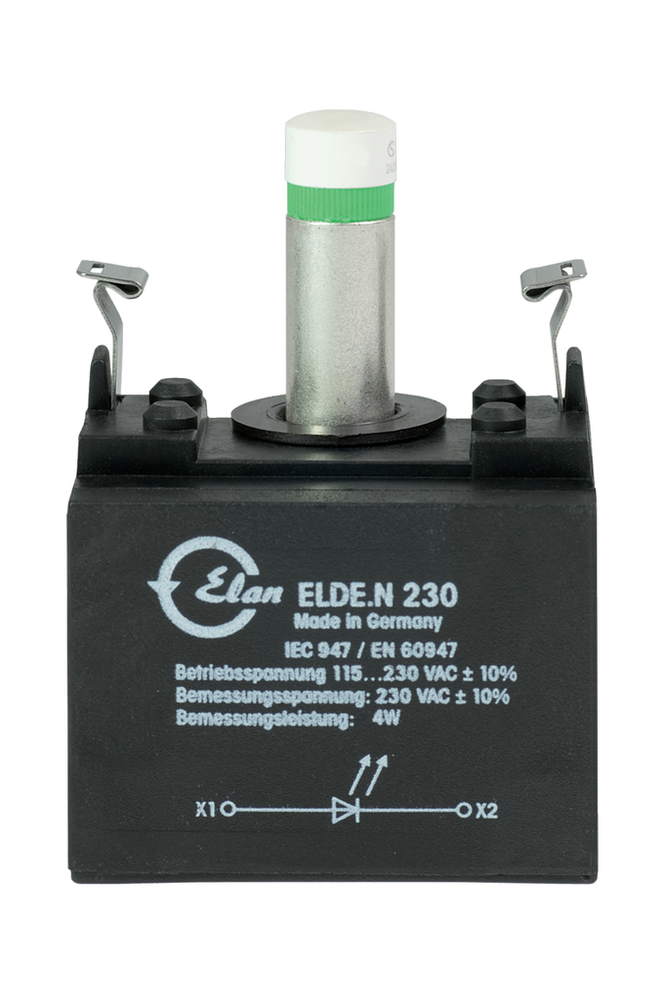

ELDE.NBL230
Schmersal 101166025 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -25 ... +80 °C
- Degree of protection of clips or terminals
- IP20
Ambient conditions - Insulation values
- Rated insulation voltage U
- 440 V
Approvals - Standards
- Certificates
- cULus | CCC
Electrical data
- Operating voltage
- 250 VAC -10 % / +10 %
- Rated operating voltage
- 250 VAC
General data
- Design
- With integrated LED
- Enclosure material
- Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Gross weight
- 25 g
- Installation conditions (mechanical)
- arbitrarily
- Standards
- EN IEC 60947-5-1 | EN IEC 60947-1
- Versions
- LED modulet
General data - Features
- Integral system diagnostics, general
- Yes
Mechanical data
- Installation instructions
- pluggable
- Mounting flange position
- 3
Mechanical data - Connection technique
- Cable section, maximum
- 2.5 mm², rigid | 1.5 mm², flexible
- Cable section, minimum
- 0.5 mm², rigid | 0.5 mm², flexible
- Terminal designations
- EN 50005 | EN 50013
- Termination
- Screw terminals
Mechanical data - Dimensions
- Depth
- 60 mm
- Width
- 30 mm
Specifications
- Depth
- 60 mm
- Length
- 46 mm
- Width
- 30 mm
Status indication
- Colour of the LED
- Blue
- Note (LED switching conditions display)
- Supply voltage UB: 230 VAC
