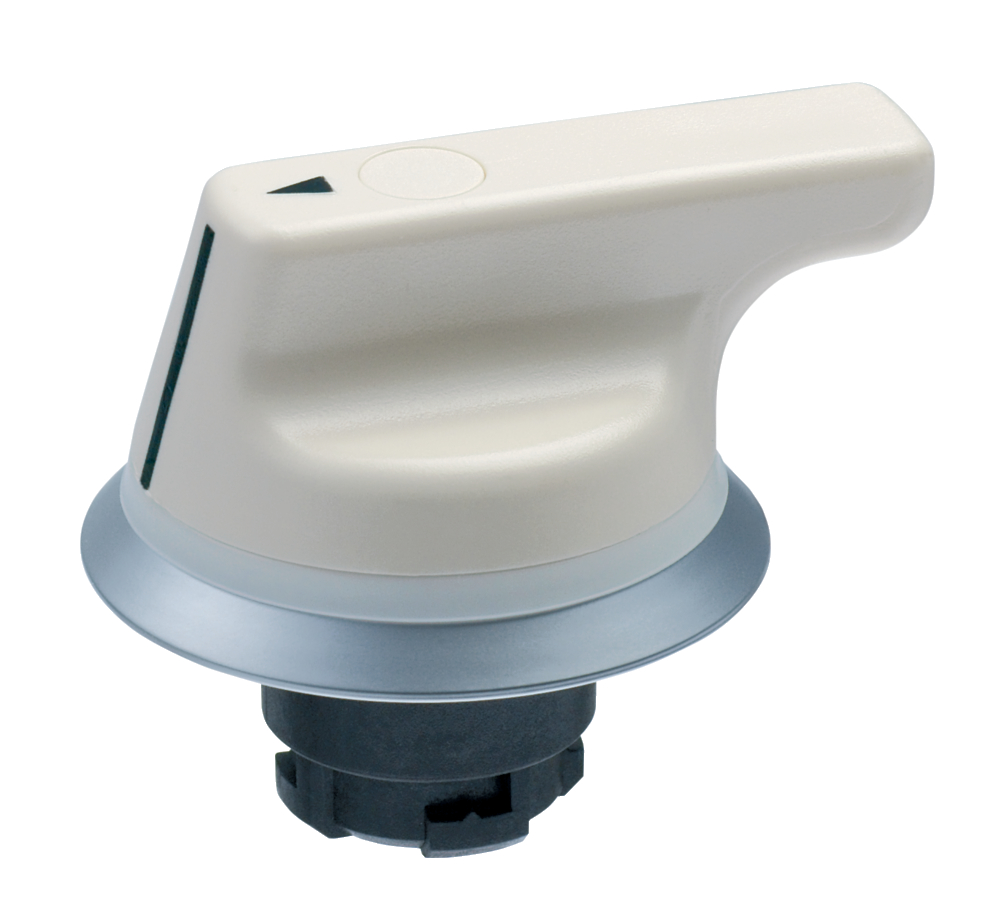

Schmersal 101164775
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
NWS21.1WS
Schmersal 101164775 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- +0 ... +80 °C
- Degree of protection
- IP67 | IP69K
- Resistance to vibrations
- 10 - 150 Hz (0.5 mm / 5 g)
- Restistance to shock
- 50 g
Approvals - Standards
- Certificates
- BG | cULus | CCC | IPA
Electrical data
- Number of contact elements, maximum
- 3
- Switching element
- latching
General data
- Colour of the bellows
- White
- Colour of the front ring
- Silver
- Colour of the handle
- White
- Colour of the operating element
- White
- Design
- Long toggle
- Gross weight
- 35 g
- Installation conditions (mechanical)
- arbitrarily
- Material of the front ring
- ABS, chrome-plated
- Material of the operators
- ABS
- Sealing type
- Membrane | Lip gaskets
- Standards
- EN IEC 60947-5-1 | EN IEC 60947-1
- Toggle
- long
- Versions
- Selector switch
General data - Features
- Fully insulated
- Yes
- Latching
- Yes
- Number of plunger
- 1
- Number of switch positions
- 2
Mechanical data
- Actuating force, approx.
- 0.2 N
- Latching position
- right
- Mechanical life, minimum
- 100,000 Operations
- Mounting
- Mounting flange EFM
- Switching angle, right
- 70 °
- Tightening torque of the screw
- 0.6 Nm
- Unlocking
- Rotating unlatcher
Mechanical data - Dimensions
- diameters for the actuating heads
- 44.5 mm
- Height
- 11 mm
- Length of the handle
- 46 mm
- Mounting diameter
- 22.3 mm
- Spacing
- 50 x 60 mm
- Thickness of the front panel, maximum
- 6 mm
- Thickness, of the front panel, minimum
- 1.5 mm
Specifications
- Height
- 11 mm
