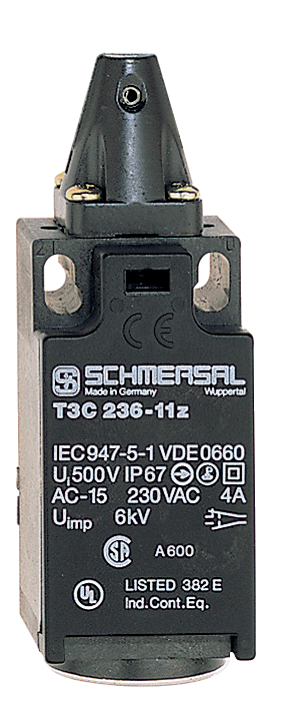

Schmersal 101164465
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
T4C 236-11Z-M20
Schmersal 101164465 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature, maximum
- +80 °C
- Ambient temperature, minimum
- -30 °C
- Degree of protection
- IP67
Ambient conditions - Insulation value
- Rated impulse withstand voltage U
- 6 kV
- Rated insulation voltage U
- 500 V
Approval - Standards
- Certificates
- cULus | CCC | EAC
Electrical data
- Switching element
- NO contact, NC contact
- Switching frequency
- 5,000 /h
- Switching principle
- Creep circuit element
- Thermal test current
- 10 A
- Utilisation category AC-15
- 4 A
- 230 VAC
- Utilisation category DC-13
- 24 VDC
- 1 A
General data
- Enclosure material
- Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Gross weight
- 105 g
- Material of the actuator
- Stainless steel
- Material of the contacts, electrical
- Silver
General data - Features
- Number of auxiliary contacts
- 1
- Number of safety contacts
- 1
Mechanical data
- Actuating element
- Swivel lever
- Mechanical life, minimum
- 1,000,000 Operations
- Opening angle
- 2 x 90°
- Positive break angle
- 12.5 °
- Positive break torque
- 0.2 Nm
Mechanical data - Connection technique
- Cable section, maximum
- 1 x 2.5 mm²
- Cable section, minimum
- 1 x 0.75 mm²
- Note (Cable section)
- All indications about the cable section are including the conductor ferrules.
- Terminal Connector
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Height of sensor
- 161 mm
- Height of the actuator
- 78 mm
- Length of sensor
- 30 mm
- Width of sensor
- 30 mm
Safety appraisal
- Mission Time
- 20 Year(s)
- Standards
- BG-GS-ET-15 | EN ISO 13849-1 | EN 60947-5-1
Safety appraisal - Safety outputs
- B10d Normally-closed contact (NC)
- 20,000,000 Operations
